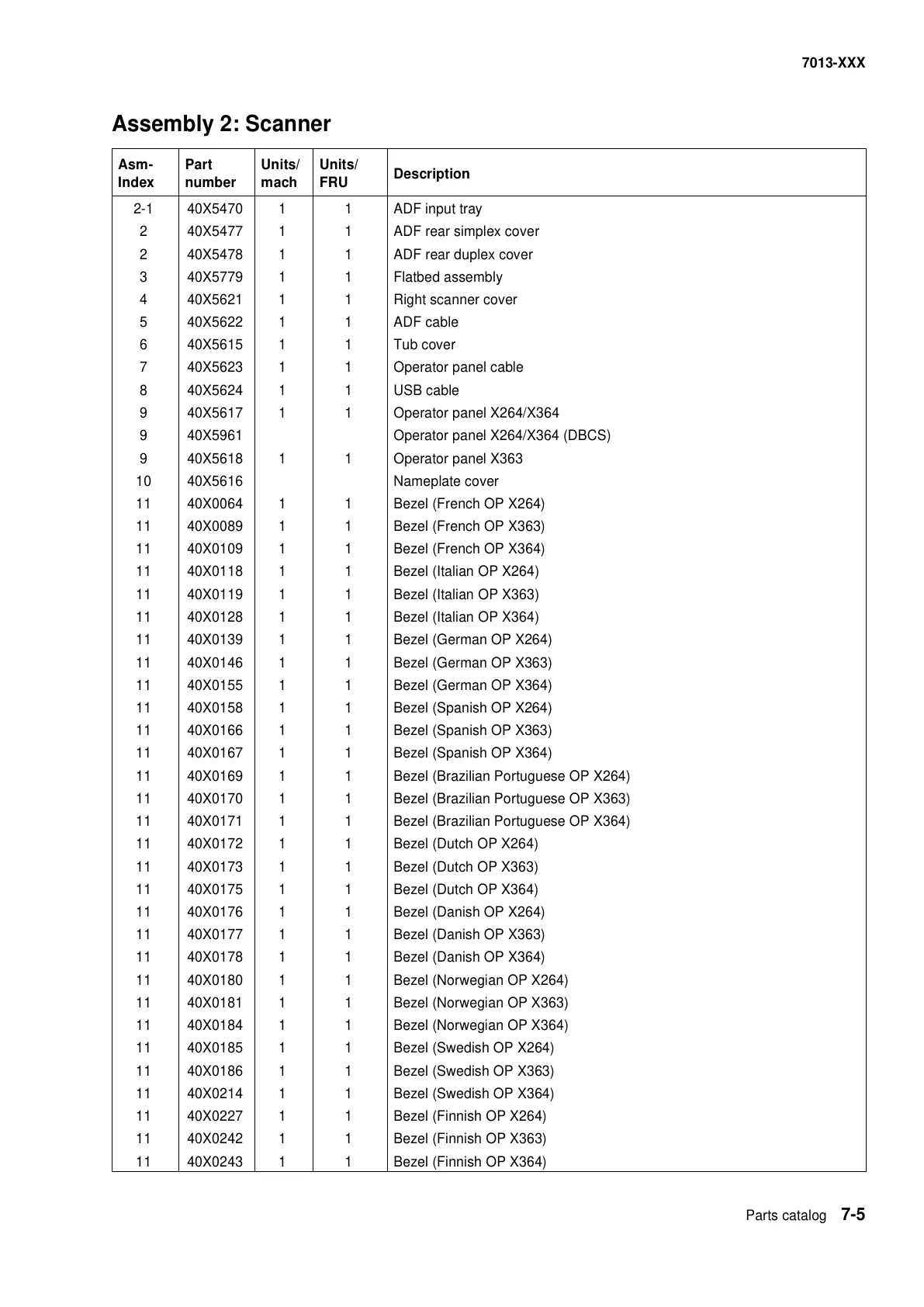

Lexmark X364dn Service Manual

Parts catalog 7-5
7013-XXX
Assembly 2: Scanner
Asm-
Index
Part
number
Units/
mach
Units/
FRU
Description
2-1 40X5470 1 1 ADF input tray
2 40X5477 1 1 ADF rear simplex cover
2 40X5478 1 1 ADF rear duplex cover
3 40X5779 1 1 Flatbed assembly
4 40X5621 1 1 Right scanner cover
5 40X5622 1 1 ADF cable
6 40X5615 1 1 Tub cover
7 40X5623 1 1 Operator panel cable
8 40X5624 1 1 USB cable
9 40X5617 1 1 Operator panel X264/X364
9 40X5961 Operator panel X264/X364 (DBCS)
9 40X5618 1 1 Operator panel X363
10 40X5616 Nameplate cover
11 40X0064 1 1 Bezel (French OP X264)
11 40X0089 1 1 Bezel (French OP X363)
11 40X0109 1 1 Bezel (French OP X364)
11 40X0118 1 1 Bezel (Italian OP X264)
11 40X0119 1 1 Bezel (Italian OP X363)
11 40X0128 1 1 Bezel (Italian OP X364)
11 40X0139 1 1 Bezel (German OP X264)
11 40X0146 1 1 Bezel (German OP X363)
11 40X0155 1 1 Bezel (German OP X364)
11 40X0158 1 1 Bezel (Spanish OP X264)
11 40X0166 1 1 Bezel (Spanish OP X363)
11 40X0167 1 1 Bezel (Spanish OP X364)
11 40X0169 1 1 Bezel (Brazilian Portuguese OP X264)
11 40X0170 1 1 Bezel (Brazilian Portuguese OP X363)
11 40X0171 1 1 Bezel (Brazilian Portuguese OP X364)
11 40X0172 1 1 Bezel (Dutch OP X264)
11 40X0173 1 1 Bezel (Dutch OP X363)
11 40X0175 1 1 Bezel (Dutch OP X364)
11 40X0176 1 1 Bezel (Danish OP X264)
11 40X0177 1 1 Bezel (Danish OP X363)
11 40X0178 1 1 Bezel (Danish OP X364)
11 40X0180 1 1 Bezel (Norwegian OP X264)
11 40X0181 1 1 Bezel (Norwegian OP X363)
11 40X0184 1 1 Bezel (Norwegian OP X364)
11 40X0185 1 1 Bezel (Swedish OP X264)
11 40X0186 1 1 Bezel (Swedish OP X363)
11 40X0214 1 1 Bezel (Swedish OP X364)
11 40X0227 1 1 Bezel (Finnish OP X264)
11 40X0242 1 1 Bezel (Finnish OP X363)
11 40X0243 1 1 Bezel (Finnish OP X364)
