Lexmark X364dn Service Manual

7-6 Service Manual
7013-XXX
11 40X0247 1 1
Bezel (Russian OP X264)
11 40X0261 1 1 Bezel (Russian OP X363)
11 40X0262 1 1 Bezel (Russian OP X364)
11 40X0315 1 1 Bezel (Polish OP X264)
11 40X0316 1 1 Bezel (Polish OP X363)
11 40X0317 1 1 Bezel (Polish OP X364)
11 40X0318 1 1 Bezel (Turkish OP X264)
11 40X0319 1 1 Bezel (Turkish OP X363)
11 40X0320 1 1 Bezel (Turkish OP X364)
11 40X0321 1 1 Bezel (Bulgarian OP X264)
11 40X0322 1 1 Bezel (Bulgarian OP X363)
11 40X0323 1 1 Bezel (Bulgarian OP X364)
11 40X0324 1 1 Bezel (Czech OP X264)
11 40X0325 1 1 Bezel (Czech OP X363)
11 40X0326 1 1 Bezel (Czech OP X364)
11 40X0327 1 1 Bezel (Hungarian OP X264)
11 40X0328 1 1 Bezel (Hungarian OP X363)
11 40X0329 1 1 Bezel (Hungarian OP X364)
11 40X0330 1 1 Bezel (Japanese OP X264)
11 40X0331 1 1 Bezel (Japanese OP X363)
11 40X0332 1 1 Bezel (Japanese OP X364)
11 40X0333 1 1 Bezel (Korean OP X264)
11 40X0334 1 1 Bezel (Korean OP X363)
11 40X0335 1 1 Bezel (Korean OP X364)
11 40X0336 1 1 Bezel (Traditional Chinese OP X264)
11 40X0337 1 1 Bezel (Traditional Chinese OP X363)
11 40X0338 1 1 Bezel (Traditional Chinese OP X364)
11 40X0339 1 1 Bezel (Simplified Chinese OP X264)
11 40X0340 1 1 Bezel (Simplified Chinese OP X363)
11 40X0341 1 1 Bezel (Simplified Chinese OP X364)
11 40X5771 1 1 Bezel (ASM op panel SB X264)
11 40X5772 1 1 Bezel (ASM op panel SB X363)
11 40X5773 1 1 Bezel (ASM op panel SB X364)
12 40X5620 1 1 Left scanner cover
13 40X0168 1 1 Simplex ADF
13 40X5468 1 1 Duplex ADF
14 40X8419 1 1 ADF separator pad
15 40X7545 1 1 ADF separator roll
NS 40X5539 1 1 Flatbed cushion (simplex ADF)
NS 40X5535 1 1 Flatbed cushion (duplex ADF)
NS 40X5807 1 1 ADF maintenance kit

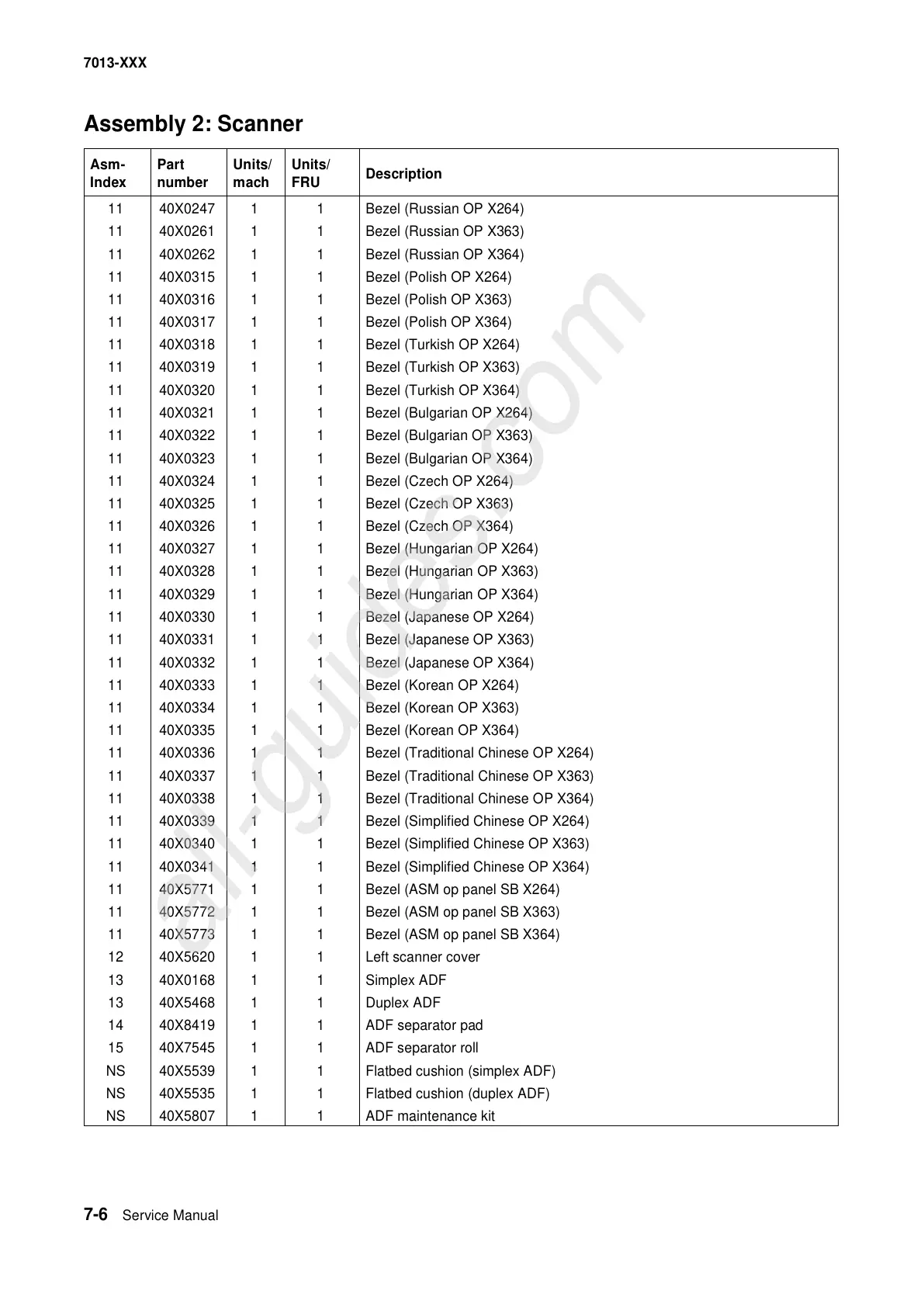

Assembly 2: Scanner
Asm-
Index
Part
number
Units/
mach
Units/
FRU
Description
All manuals and user guides at all-guides.com
all-guides.com

Lexmark X364dn Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Scanner type	Flatbed scanner
Duplex scanning	Yes
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	300 sheets
Maximum input capacity	850 sheets
Multi-Purpose tray input capacity	50 sheets
Font styles	3 of 9 scalable PCL 5e, 2 PCL bitmap fonts, 39 scalable PPDS, 5 PPDS bitmap fonts, 84 scalable PCL, OCR-A, OCR-B scalable PCL 5e, 91 scalable PostScript
Dimensions (WxDxH)	428 x 405 x 471 mm
Networking features	10/100BaseTX
All-in-one functions	Copy, Fax, Scan
Standard input trays	2
Compatible operating systems	Apple Mac OS X (10.2 or later) Apple Mac OS 9.x Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows XP x64 Microsoft Windows Server 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Microsoft Windows Server 2008 Microsoft Windows Server 2008 x64 Linpus Linux Desktop 9.2, 9.3 Red Hat Enterprise Linux WS 3.0, 4.0, 5.0 SUSE Linux Enterprise Server 8.0, 9.0, 10.0 SUSE Linux Enterprise Desktop 10 openSUSE 10.2, 10.3, 11.0 Linspire Linux 6.0 Debian GNU/Linux 4.0 Red Flag Linux Desktop 5.0, 6.0 Ubuntu 7.10 Ubuntu 8.04 LTS Novell Open Enterprise Server Novell NetWare 5.x, 6.x Sun Solaris SPARC 8, 9, 10 Sun Solaris x86 10 HP-UX 11.11, 11.23, 11.31 IBM AIX 5.2, 5.3, 6.1
Package dimensions (W x D x H)	20 x 18.62 x 22.44 \
Internal memory	128 MB
Processor frequency	266 MHz
Sound power level (standby)	27 dB
Sound pressure level (copying)	54 dB
Sound pressure level (scanning)	51 dB
Display diagonal	2 \
Market positioning	Business
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk, TCP/IP IPv6, TCP, UDP
Standard interfaces	Ethernet
Maximum duty cycle	80000 pages per month
Page description languages	PDF 1.6, PPDS
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	Energy Star, U.S. FDA, FCC Class B, UL 60950-1, IEC 60320-1, ECMA 74:8, CAN/CSA-C22.2 60950-1-03, ICES-003 Class B, VCCI Class B, BSMI Class B, CE Class B, CB IEC 60950-1, IEC 60825-1, IEC 61000-3-2, IEC 61000-3-3, EN 55022 Class B, EN 55024, CISPR 22 Class B, IEC 60320, GS (TÜV), EN 60825-1, ACMA A-tick mark Class B, AS/NZS 60950-1, EK Mark, K60950, KCC MIC Mark, CCC Class B, UL AR, CS, TÜV Rh, PSB-SS 337, CNS 13438, CNS 14336

Weight and Dimensions

Weight	20000 g
