Lexmark X364dn Service Manual

3-6 Service Manual
7013-XXX

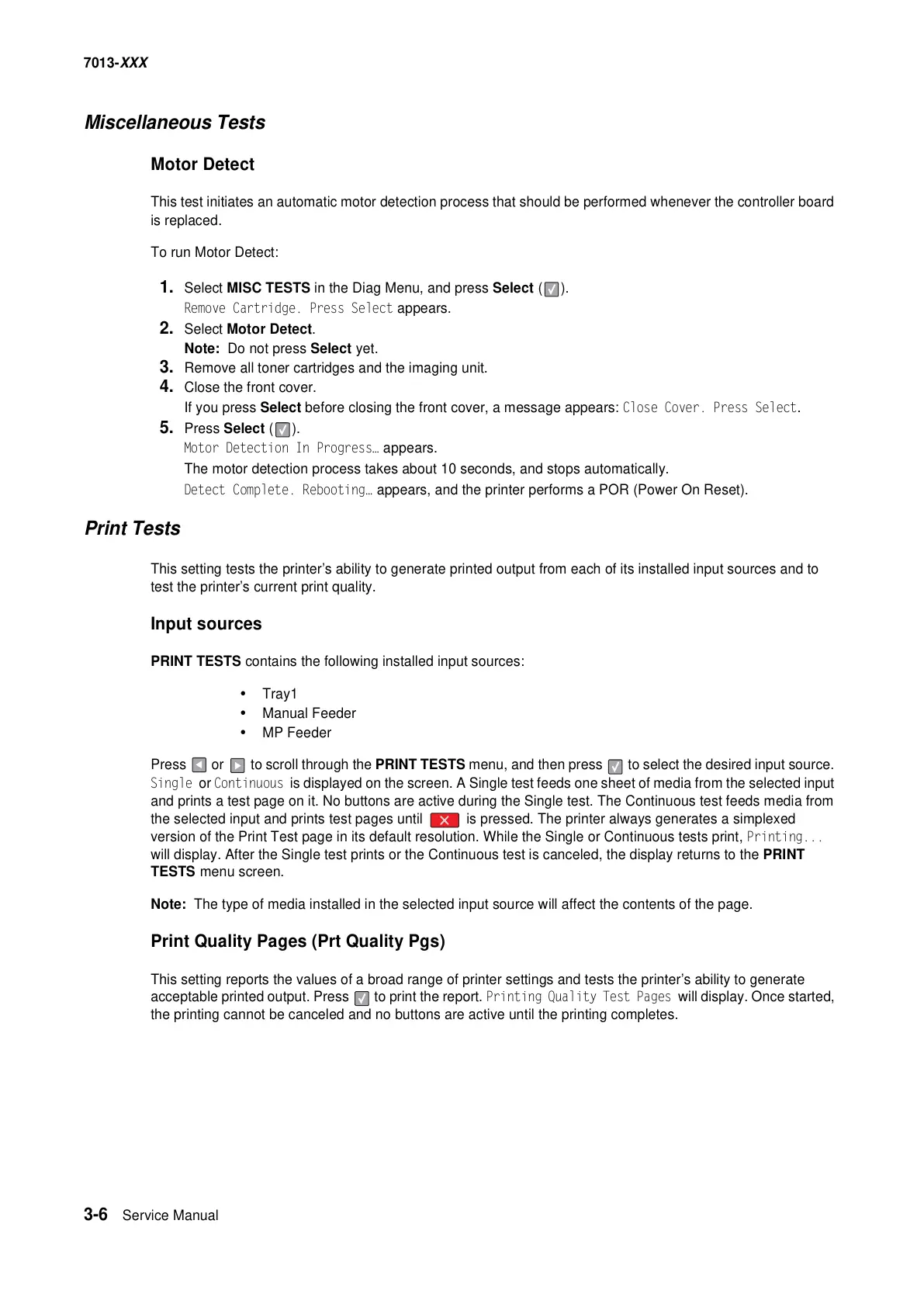

Miscellaneous Tests
Motor Detect
This test initiates an automatic motor detection process that should be performed whenever the controller board
is replaced.
To run Motor Detect:
1. Select MISC TESTS in the Diag Menu, and press Select ( ).
Remove Cartridge. Press Select appears.
2. Select Motor Detect.
Note: Do not press Select yet.
3. Remove all toner cartridges and the imaging unit.
4. Close the front cover.
If you press Select before closing the front cover, a message appears: Close Cover. Press Select.
5. Press Select ( ).
Motor Detection In Progress… appears.
The motor detection process takes about 10 seconds, and stops automatically.
Detect Complete. Rebooting… appears, and the printer performs a POR (Power On Reset).
Print Tests
This setting tests the printer’s ability to generate printed output from each of its installed input sources and to
test the printer’s current print quality.
Input sources
PRINT TESTS contains the following installed input sources:
• Tray1
• Manual Feeder
• MP Feeder
Press or to scroll through the PRINT TESTS menu, and then press to select the desired input source.
Single or Continuous is displayed on the screen. A Single test feeds one sheet of media from the selected input
and prints a test page on it. No buttons are active during the Single test. The Continuous test feeds media from
the selected input and prints test pages until is pressed. The printer always generates a simplexed
version of the Print Test page in its default resolution. While the Single or Continuous tests print, Printing...
will display. After the Single test prints or the Continuous test is canceled, the display returns to the PRINT
TESTS menu screen.
Note: The type of media installed in the selected input source will affect the contents of the page.
Print Quality Pages (Prt Quality Pgs)
This setting reports the values of a broad range of printer settings and tests the printer’s ability to generate
acceptable printed output. Press to print the report. Printing Quality Test Pages will display. Once started,
the printing cannot be canceled and no buttons are active until the printing completes.
