1. Introduction MX-FR Series Modular Matrix Frames – User's Manual 8

Description
Thank you for choosing Lightware matrix routers. The hybrid modular matrix routers are capable of routing



more precise switching, control, troubleshooting and signal measurement.


thanks to our Hybrid Modular Design.
The future-proofed matrix backplanes are able to switch to 12.8 Gigabit per second data rates, allowing
transportation of the next generation HDMI, 4K x 2K, 3D and DisplayPort 1.1 video signals. All Input boards
e.g. DVI-I, 3G-SDI, etc. convert their respective Input signals to the widest and broadest standard for all
existing video signals – uncompressed HDMI (including embedded audio). Output boards convert the

Model Denomination
About the Serial Number
Lightware devices contain a label indicating the unique serial number of the product. The structure is the
following:
MX-FR80R
Redundant Power Supply Unit
Frame
Matrix 80x inputs and 80x outputs
7A000941
7=2017
8=2018
9=2019
A=2020
B=2021
C=2022
D=2023
E=2024
F=2025
6-digit running sequence number
Month of the manufacturing:
Year of the manufacturing:
(3-9, A-Y)
1: Jan
2: Feb
3: Mar
4: Apr
5: May
6: Jun
7: Jul
8: Aug
9: Sep
A: Oct
B: Nov
C: Dec

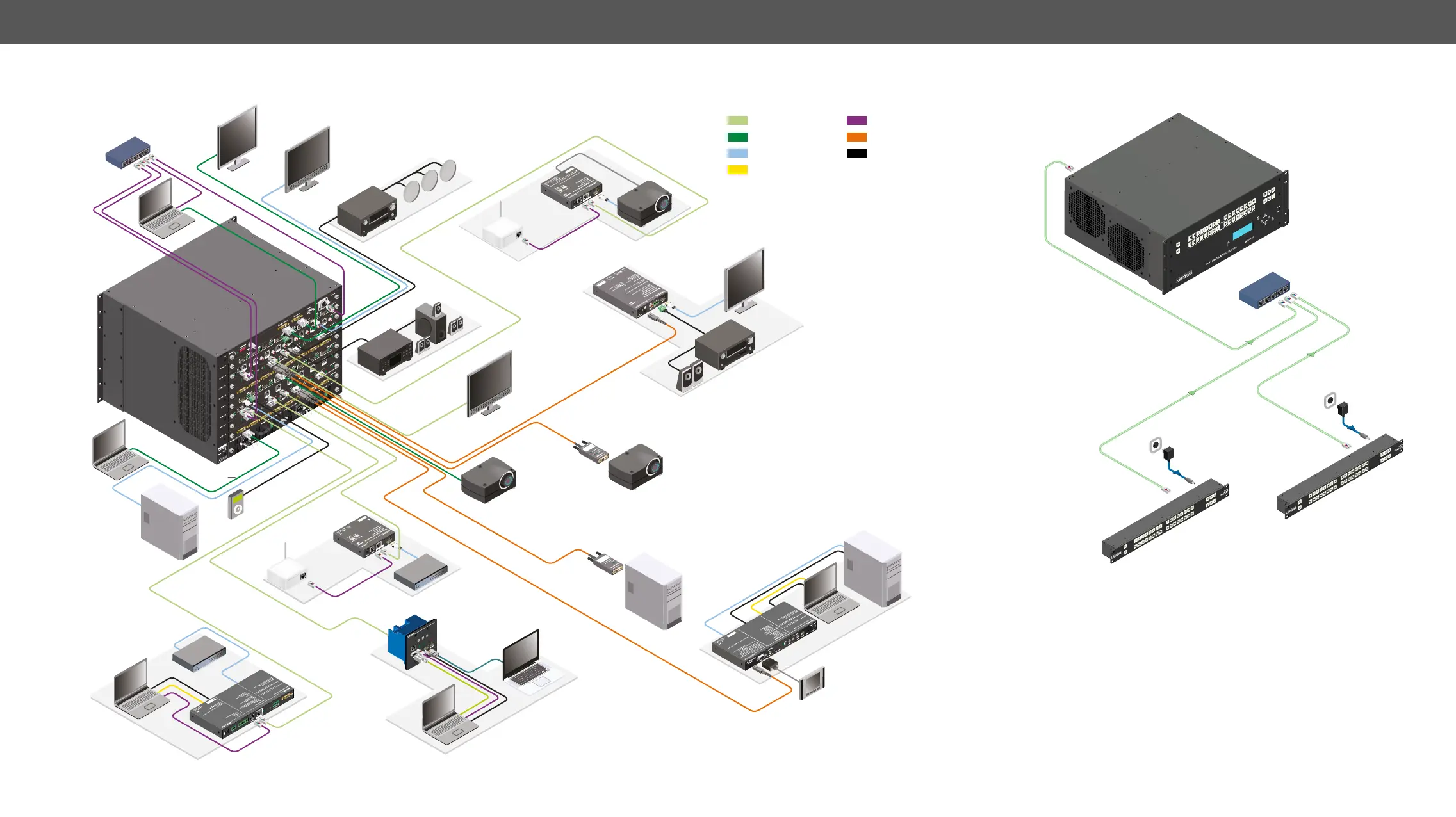

Features
Non-blocking Crosspoint Matrix Architecture
The router allows any input to be switched to any output or more outputs simultaneously.

              
interfacing with different video sources and displays.

The MX Series supports the highest 4K UHD, 2560x1600 and 1920x1080@120Hz resolutions,
standard HDMI 3D formats and all HDMI 1.3 resolutions, operating without signal latency.
1080p
HDTV

720p, 1080i and 1080p etc. signals are supported with or without HDCP encryption.
3D Support
Lightware provides complex, integrated solutions for the digital age, also delivering 3D

UMX Technology
UMX (Universal MatriX) technology was developed to support various analog and digital
video and audio signal formats with several input connection possibilities.

          
components can be installed in the same system within the same chassis.
No Signal Latency With Zero Frame Delay
The signal management architecture ensures that there is no delay added between the input
and the output.





Lightware MX-FR Series Specifications

General

Brand	Lightware
Model	MX-FR Series
Category	Controller
Language	English
