D9U004GKC-0101
45
1
1.2.7

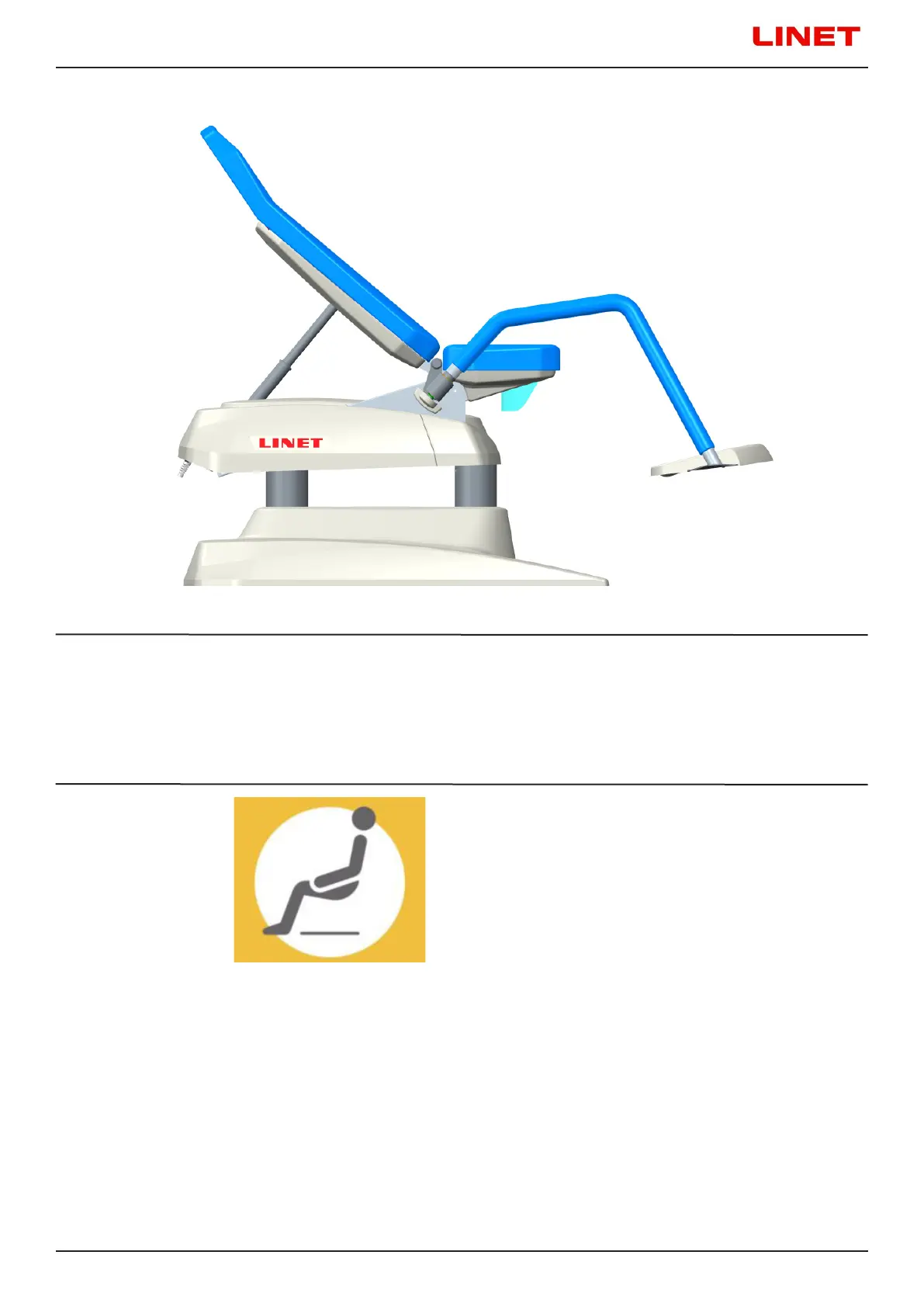

Patient mounting position
T
o position the chair for mounting of a patient use:
► Hand controller
► Foot controller
Hand controller
, foot controller:
►
Press button, until intended position is reached.
Fig.
Mounting position
Fig.
Position button for mount-
ing of a patient (Hand control-
ler
, Foot controller).
44
46
Table of Contents
Table of Contents
3
Symbols and Definitions
4
Warning Notices
4
Types of Warning Notices
4
Structure of Warning Notices
4
Instructions
4
Lists
4
Symbols on a Package
5
Symbols and Labels on a Chair
6
Product Label with UDI
9
Audible Alarm
10
Definition
11
Abbreviations
12
Safety Instructions
13
Unpacking Instructions
15
Intended Use
19
User Population
19
Contraindications
19
Product Description
20
Chair with Footrests - Without Vertical Adjustment
20
Chair with Footrests - with Vertical Adjustment
21
Chair with Goepel Footrests - Without Vertical Adjustment
22
Chair with Goepel Footrests - with Vertical Adjustment
23
Chair with Goepel Footrests - with Manual Position Adjustment
24
Technical Specification
25
Identification of Applied Parts (Type B)
25
Mechanical Specifications (Graciella)
25
Environmental Conditions(Graciella)
26
Electrical Specifications (Graciella)
26
Electromagnetic Compatibility
26
Instructions and Manufacturer's Declaration - Electromagnetic Radiation
27
Instructions and Manufacturer's Declaration - Electromagnetic Immunity
27
Use and Storage Conditions
28
Scope of Delivery and Product Variants
29
Delivery
29
Scope of Delivery
29
Graciella Variants
29
Entry into Operation
30
Potential Equalisation
32
Before Use
33
Transport
33
Mains Power Cable
34
Manipulation
35
Control Elements
36
Hand Controller (Part of Electrically Operated Foot- Rests / Goepel Footrests)
37
Foot Controller for the Chair Height Adjustment (Optional)
38
Chair Positioning
39
Chair Height
39
Seat Section
40
Backrest
41
Footrests/Goepel Footrests Adjustment (Only for Electric Vertical Movement of the Footrests)
42
Manually Adjustable Goepel Footrests (Vertically)
43
Position for Patient Examination
44
Patient Mounting Position
45
Straight Position
46
Trendelenburg Emergency Position
47
Adjusting the Straight Position Using the Buttons for Adjusting the Height of the Chair and the Back Part
48
Trendelenburg Emergency Position Adjustment Using the Backrest and Seat Section Adjustment Buttons
49
Mandatory Optional Equipment
50
Footrests - Without Vertical Adjustment
51
Footrests - Electrically Operated
52
Goepel Footrests (Hereinafter Only Goepel)- Without Vertical Adjustment
53
Goepel Footrests (Hereinafter Only Goepel)- Electrically Operated
54
Goepel Footrests (Hereinafter Only Goepel) - Manual Position Adjustment
55
Bowl Holder L
56
Bowl Holder R
56
Hand Controller L
57
Hand Controller R
57
Optional Equipment
58
Step L
59
Step R
59
Eurobar L
59
Eurobar R
59
Lamp L
60
Lamp R
60
Paper Roll Holder L
60
Paper Roll Holder R
60
Castors
61
Patient Surface Extension
62
Accessories
64
Infusion Stand
64
Eurobar Holder
65
Headrest (Pillow)
65
Physician's Chair -Ergonomic
65
Physician's Chair - Ergonomic, Adjustable by Feet
65
Physician's Chair - Height-Adjustable, Manual Locking
65
Short Cover
66
Long Cover
66
Cleaning/Disinfection
67
Cleaning (Graciella)
67
Daily Cleaning
67
Full Cleaning and Disinfection
67
Troubleshooting
69
Maintenance
70
Regular Maintenance
70
Spare Parts
70
Safety Technical Inspections
70
Disposal
71
Environmental Protection
71
Within Europe
71
Outside Europe
71
Warranty
72
Standards and Regulations
72
