Linksys LAPN300 User Manual

The following instructions assume that:
•
You are using Windows XP
•
You are connecting to a Windows 2000 server for authentication.
•
You already have a login (User-name and password) on the Windows 2000 server.
Client Certificate Setup
1. Connect to a network that doesn't require port authentication.
2. Start your Web browser. In the
Address box, enter the IP address of the Windows 2000
Server, followed by “/certsrv”. Example: http://192.168.0.2/certsrv
3. You will be prompted for a user name and password. Enter the
User name and Password
assigned to you by your network administrator, and click OK.

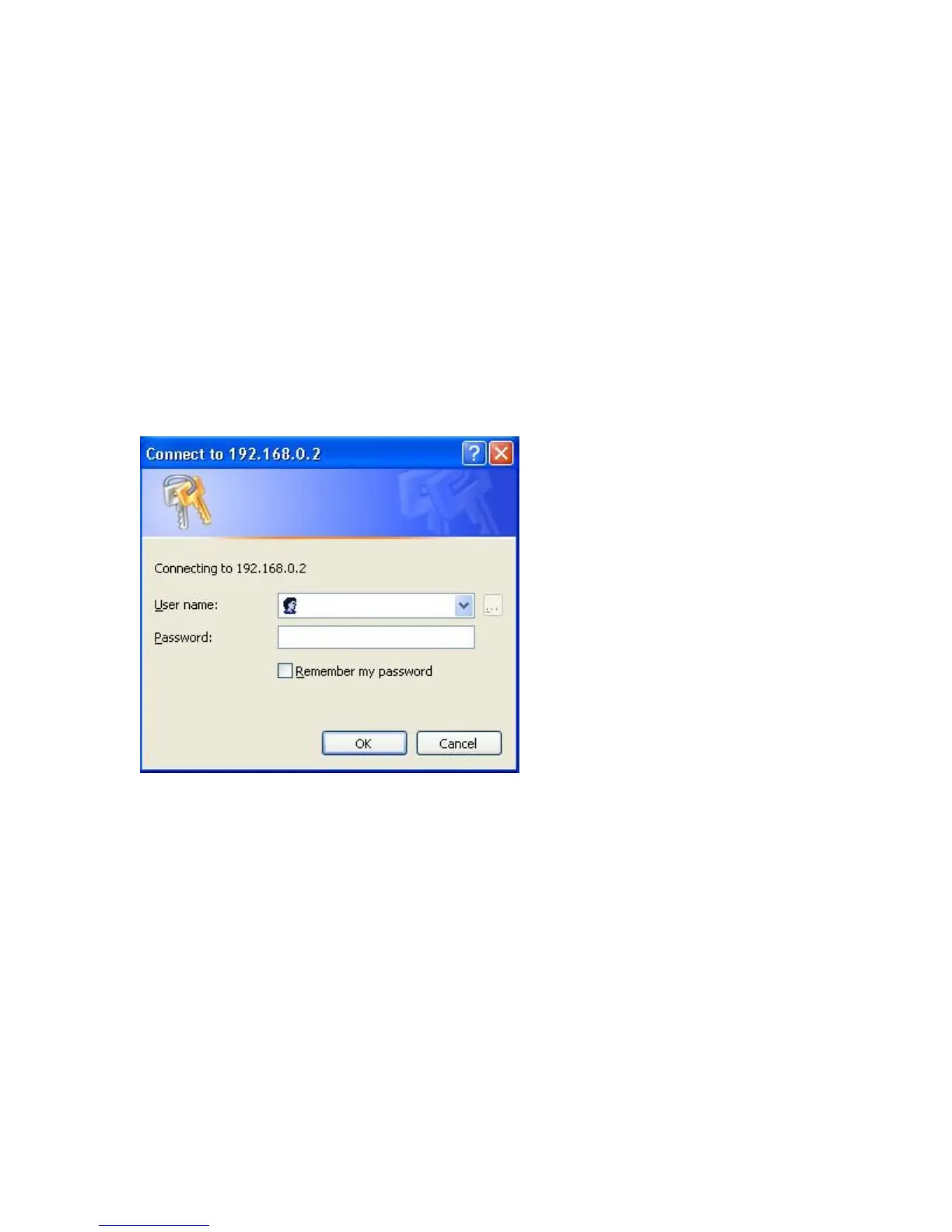

Figure 69: Connect Screen
103

Linksys LAPN300 Specifications

General

Color	multi, white
Wi-Fi Speed	300 gigabits per second
Frequency Band	2.4 ghz
QoS Traffic Prioritization	no
Wireless Standard	n
Data Encryption	yes
Encryption Type	other, wep, wpa, wpa2
Security Features	rogue ap detection; ssid to vlan mapping; 802.1x supplicant
Ports	rj-45
Bluetooth	no

Weight and Dimensions

Height	1.72 inches
Width	9.33 inches
Net Weight	1.08 pounds
