Linksys LAPN300 User Manual

Using 802.1x Mode (without WPA)
This is very similar to using WPA-Enterprise.
The only difference is that on your client, you must NOT enable the setting
The key is provided for me
automatically
.
Instead, you must enter the WEP key manually, ensuring it matches the WEP key used on the access
point.

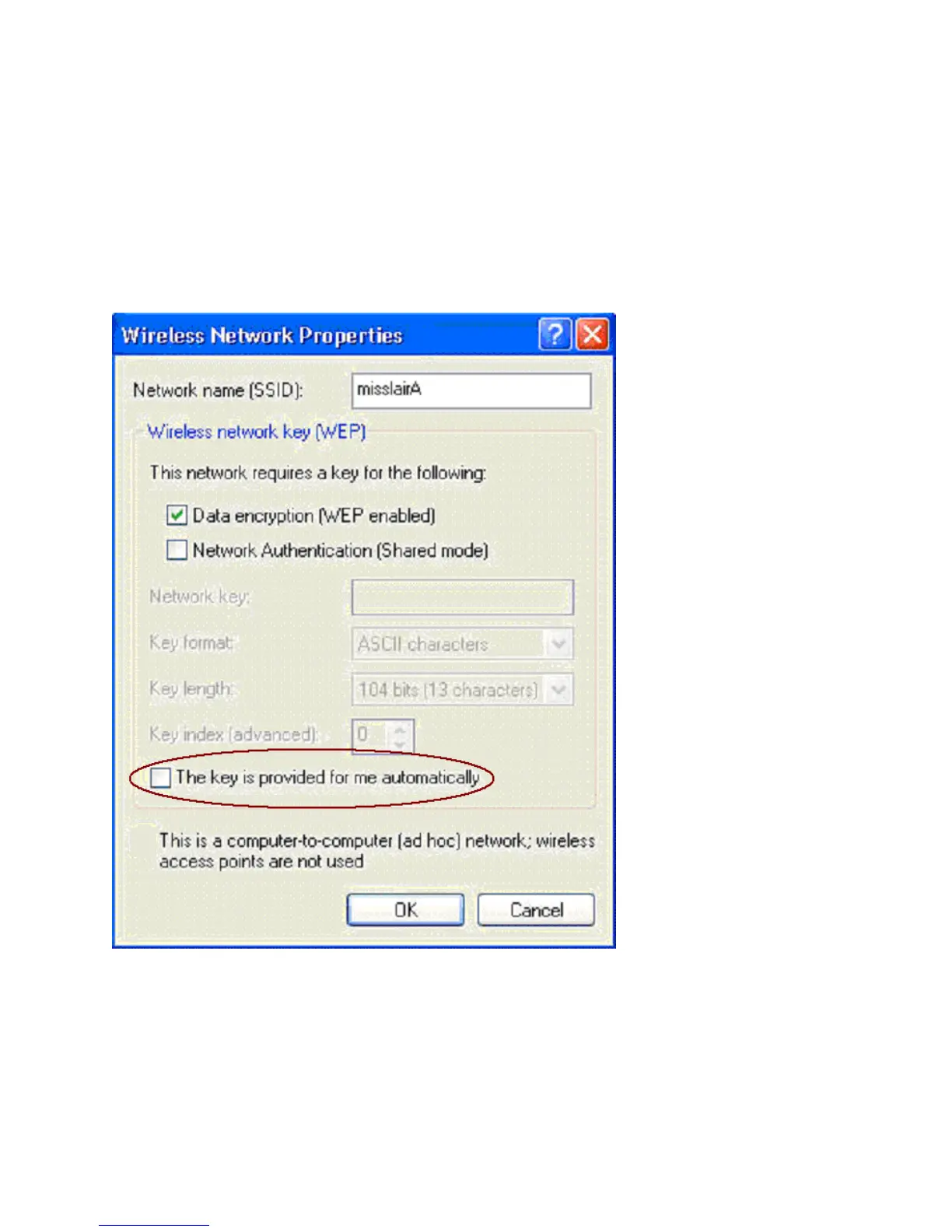

Figure 78: Properties Screen
Note—On some systems, the 64-bit WEP key is shown as 40-bit and the 128-bit WEP key is shown
as 104-bit. This difference arises because the key input by the user is 24 bits less than the key size
used for encryption.
111

Linksys LAPN300 Specifications

General

Color	multi, white
Wi-Fi Speed	300 gigabits per second
Frequency Band	2.4 ghz
QoS Traffic Prioritization	no
Wireless Standard	n
Data Encryption	yes
Encryption Type	other, wep, wpa, wpa2
Security Features	rogue ap detection; ssid to vlan mapping; 802.1x supplicant
Ports	rj-45
Bluetooth	no

Weight and Dimensions

Height	1.72 inches
Width	9.33 inches
Net Weight	1.08 pounds
