Linksys LAPN300 User Manual

Workgroup Bridge
Extend the accessibility of a remote network. In Workgroup Bridge mode, the access point acts as a
wireless station on the wireless LAN. It can bridge traffic between a remote wired network and a
wireless LAN.
When Workgroup Bridge is enabled, SSID configuration still works to provide wireless services to
clients.
All access points participating in Workgroup Bridge must have the identical settings for Radio
interface, IEEE 802.11 mode, Channel Bandwidth, Channel (Auto is not recommended).

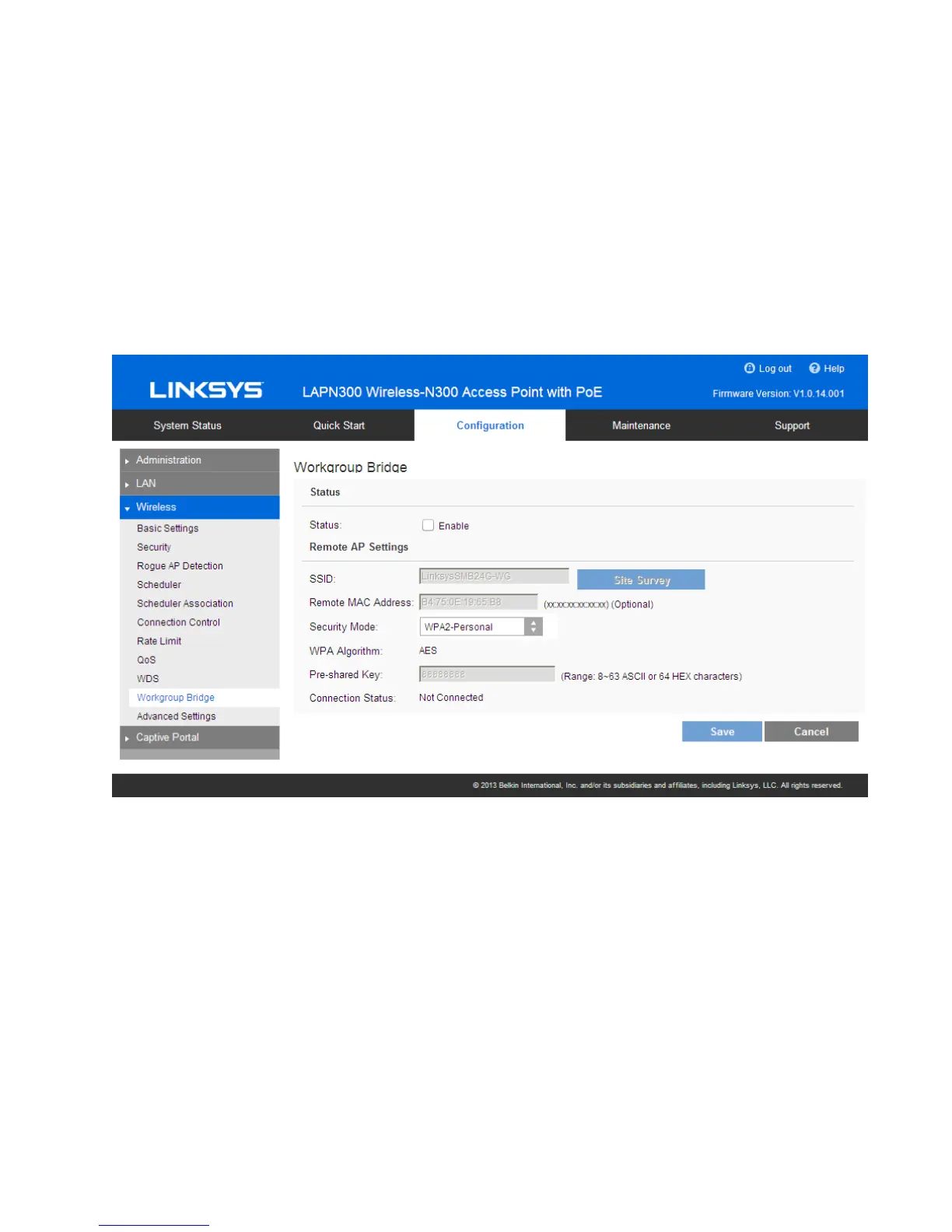

Figure 3113: Workgroup Bridge
48

Linksys LAPN300 Specifications

General

Color	multi, white
Wi-Fi Speed	300 gigabits per second
Frequency Band	2.4 ghz
QoS Traffic Prioritization	no
Wireless Standard	n
Data Encryption	yes
Encryption Type	other, wep, wpa, wpa2
Security Features	rogue ap detection; ssid to vlan mapping; 802.1x supplicant
Ports	rj-45
Bluetooth	no

Weight and Dimensions

Height	1.72 inches
Width	9.33 inches
Net Weight	1.08 pounds
