POWER TRAIN 14000 SERVICE MANUAL
7-8
Published 09-05-14, Control # 226-02

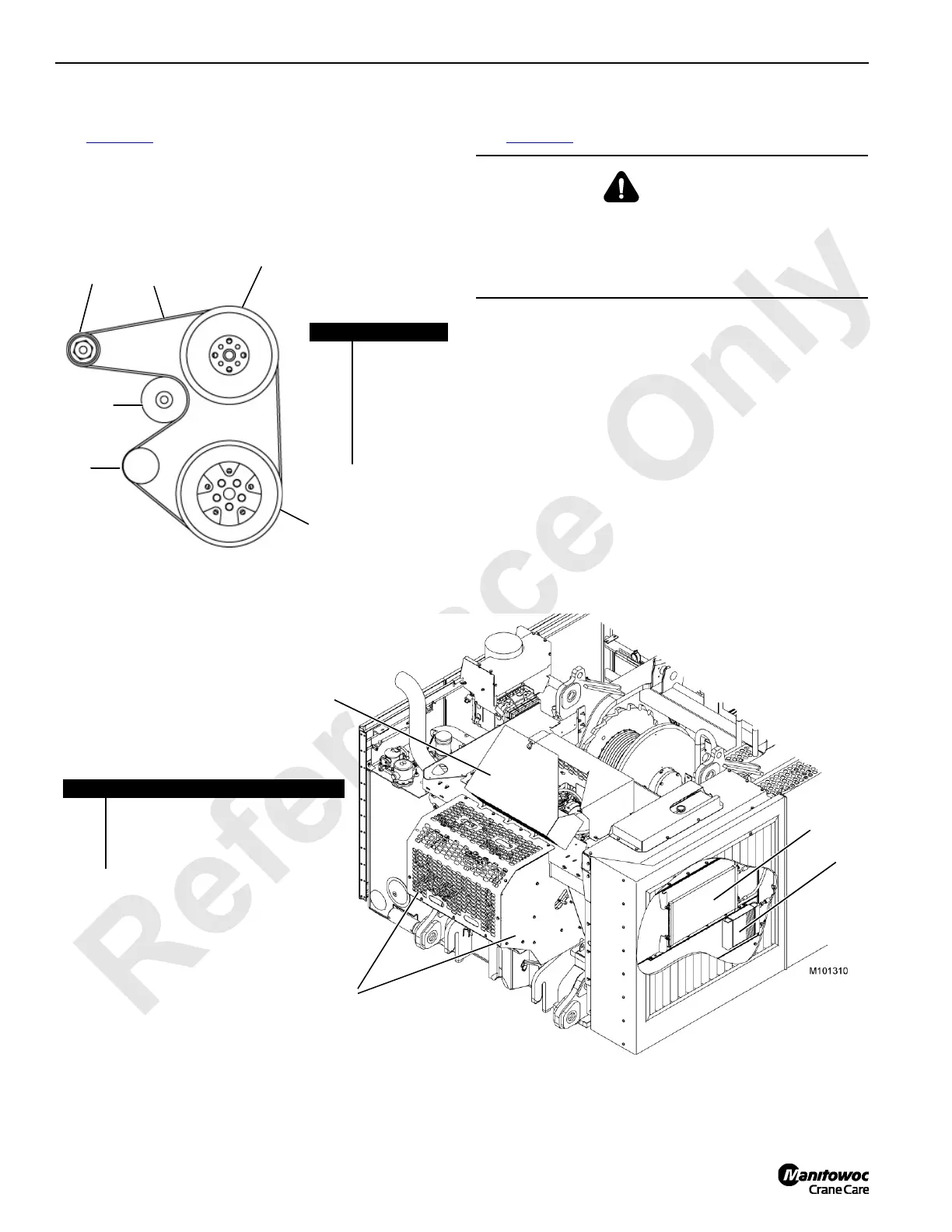

ENGINE BELT ROUTING
See Figure 7-6
Engine belt routing is shown to help service personnel when
installing a new belt on engine.
ENGINE ENCLOSURE
See Figure 7-7
The enclosure has covers and guards that can be pivoted
open or removed to allow access for engine service. Do not
operate the crane without all covers and guards in place and
securely fastened.
Item Description
1 Idler
2 Crankshaft
Pulley
3 Tensioner
4 Water Pump
5Alternator
6Belt
1
6
5
4
3
2
FIGURE 7-6
M10718
WARNING
Fall Hazard
Do not step on any part of the engine enclosure. It can
collapse. You can lose your balance and fall.
Death or serious injury can result.
FIGURE 7-7
2
Item Description
1 Engine Cover with Latch
2 Engine Guards
3 Condenser for Air Conditioning System
4 Engine Fuel System Cooler
1
Note: Not all guards shown.
3
4
