14000 SERVICE MANUAL INTRODUCTION
1

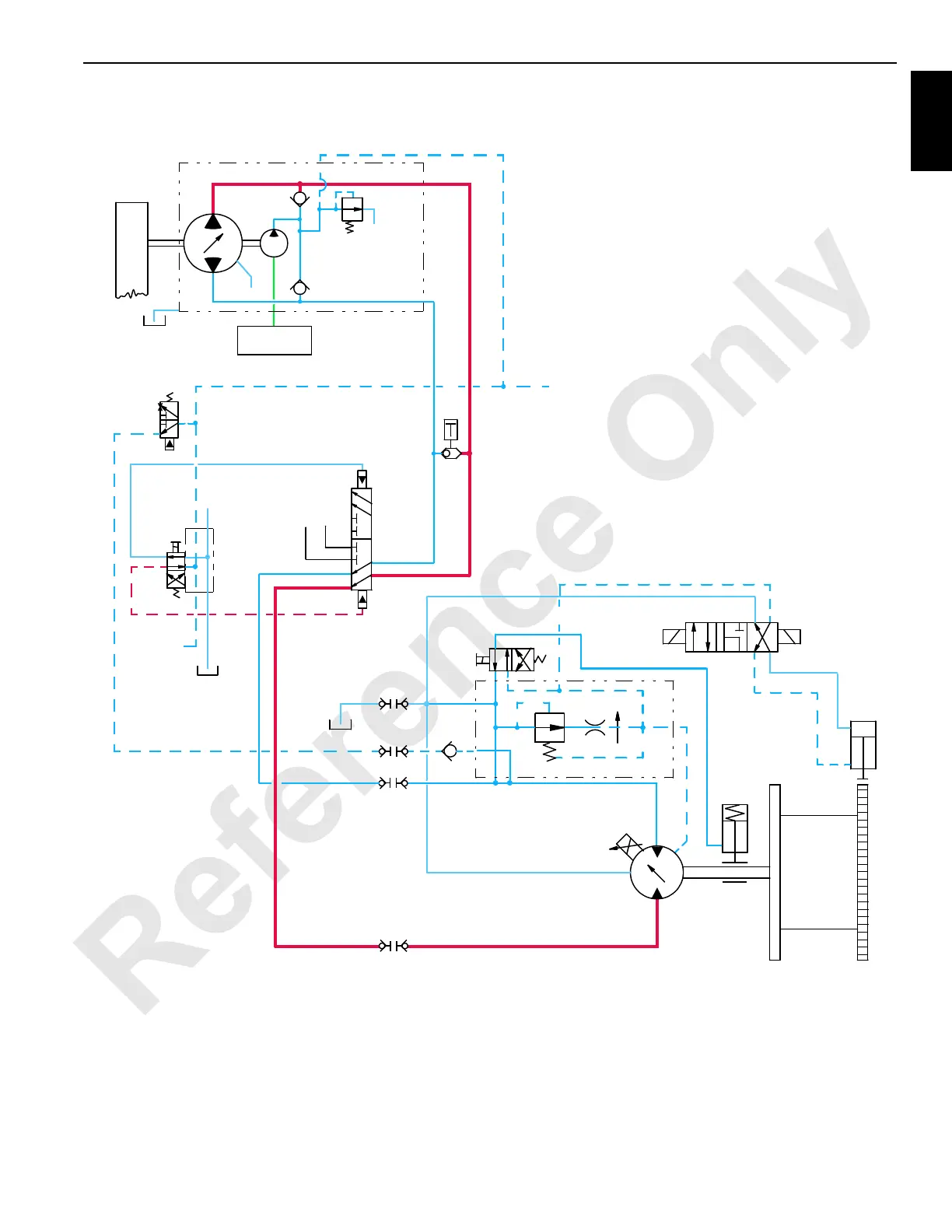

FIGURE 1-27
X
X
X
To other Low
Pressure
Accessories
Pawl
Drum
Brake
Drum 3
Opens at 200 psi (14 bar)
HS-7
HS-9
HS-8
4 g/m 15 L/m
Drum 3/Left Travel Pump #3
Pump
Drive
Forward - Raise
Reverse - Lower
Charge Pressure for Low
Pressure Accessories
Suction
Manifold
350 psi
(24 bar)
Left Travel
Pressure Sender
Shuttle
Valve
HS-10
Diverter
Valve
To Left Travel
Motor
To Other
Items
14CSM1-117
B
A
