Installation and connection
94
Water drainage
The machine drains via a drain pump
with a delivery head of 1 metre. The
drain hose must not be kinked as this
restricts drainage. The swivel elbow at
the end of the hose can be turned in
either direction, or can be detached if
required, with a sharp twist and pull. If
required, the drain hose can be exten-
ded to a length of 5m. The necessary
parts can be purchased from your Miele
Dealer or Miele.
For a delivery head of more than 1 m
(up to a max. of 1.8 m) a replacement
drain pump will need to be fitted.
Please contact Miele or your Miele
Dealer for advice. If necessary, the
drain hose can be extended to a length
of 2.5 m. The necessary parts can be
purchased from your Miele Dealer or
Miele.
Drain hose connection:
1. Direct into a sink or basin.
Please note:
– Hook the hose over the edge and
secure.
– Make sure that the water can drain
away freely without hindrance.
Otherwise there is a risk of water
overflowing or of some of the
drained water being sucked back
into the washer-dryer.
2. Connected securely to a plastic drain
pipe with a rubber nipple. There is no
need to use a non-return valve.
3. Connected securely to a floor gully.
4. Connected securely to a standpipe.

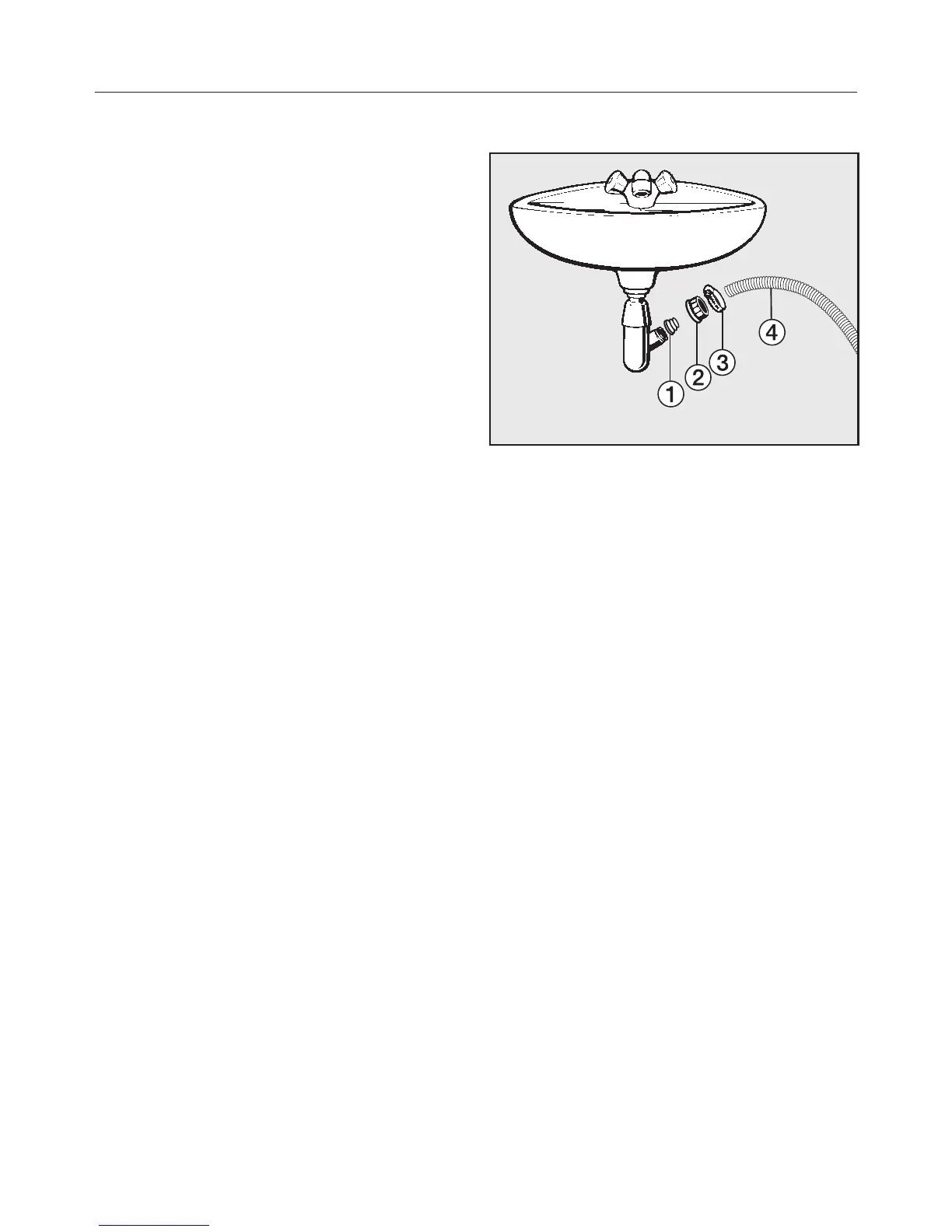

Please note:
a
Adapter
b
Nut
c
Hose clip
d
End of the hose
 Fit adapter  to the sink drain outlet
using nut .
 Attach the end of hose  to adapter
.
 Use a screwdriver to tighten hose clip
 up close to the nut.

Miele WTF 130 WPM Specifications

General

Door hinge	Right
Control type	Buttons, Rotary
Loading type	Front-load
Product color	White
Built-in display	Yes
Appliance placement	Freestanding
Half-load	-
Drying capacity	4 kg
Washing capacity	7 kg
Delay start (max)	24 h
Spin-drying class	A
Maximum spin speed	1600 RPM
Noise level (wash)	- dB
Water consumption washing per cycle	90 L
Energy consumption washing per cycle	- kWh
Water consumption washing & drying per cycle	- L

Weight and Dimensions

Depth	636 mm
Width	596 mm
Height	850 mm
