Inlet for Peristaltic Chemical Supplies and Water
PELLERIN MILNOR CORPORATION
BIMXCM11 (Published) Book specs- Dates: 20151210 / 20151210 / 20151210 Lang: ENG01 Applic: MXC
Inlet for Peristaltic Chemical Supplies and Water

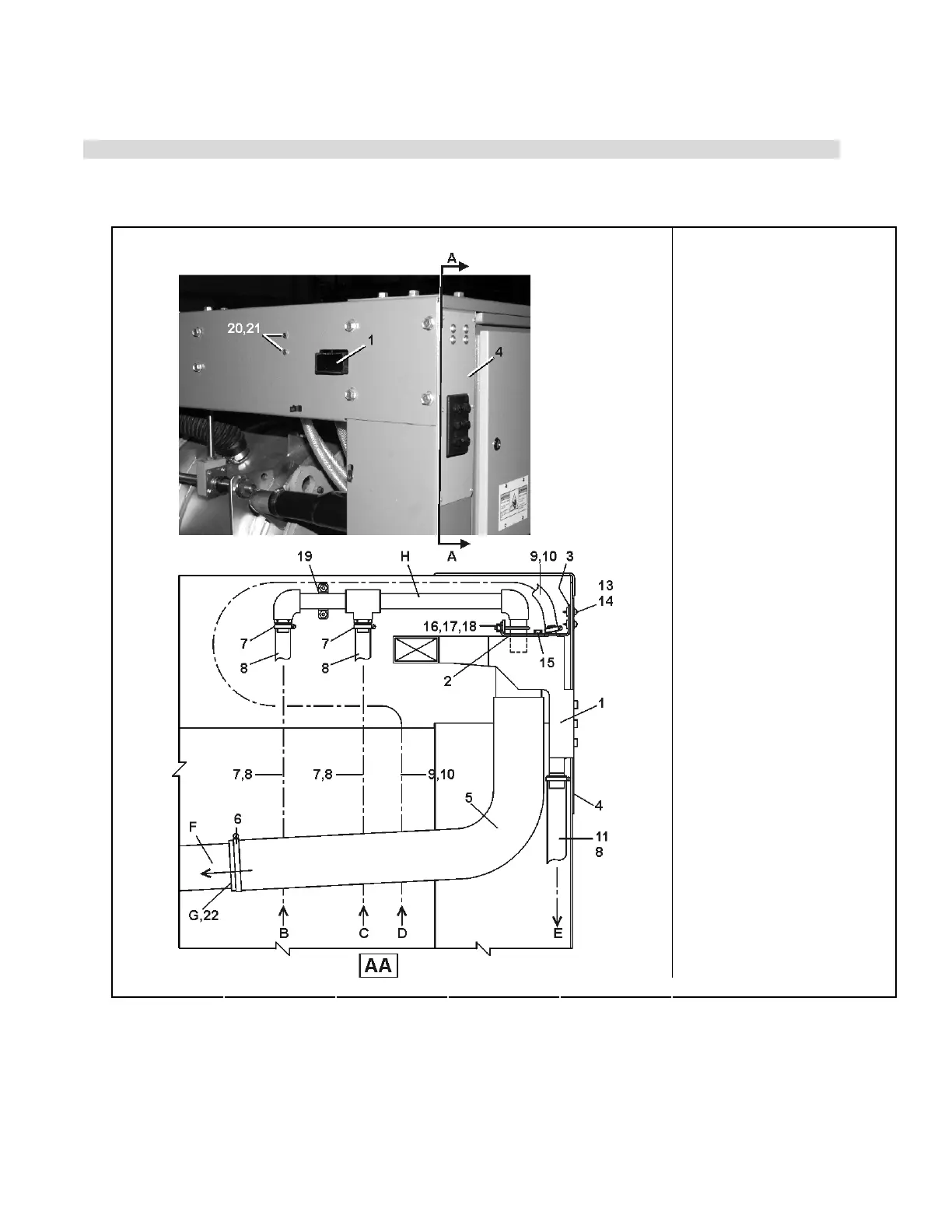

Figure 1: Inlet for Peristaltic Chemical Supplies and Water
Right side view, Cross Section Legend
.
AA. Cross Section
B. Cold water line
C. Hot water line
D. Water to the five
compartments for dry
chemical supplies
E. Water and chemical
supplies to the drain
trough
F. Water and chemical
supplies to the shell
G. Apply adhesive to the
surfaces that connect.
Then, tighten the clamp.
H. See the document
BMP040028,
BIMXCM10.
