Milnor 42026X7J User Manual

Drive Components Identification
PELLERIN MILNOR CORPORATION

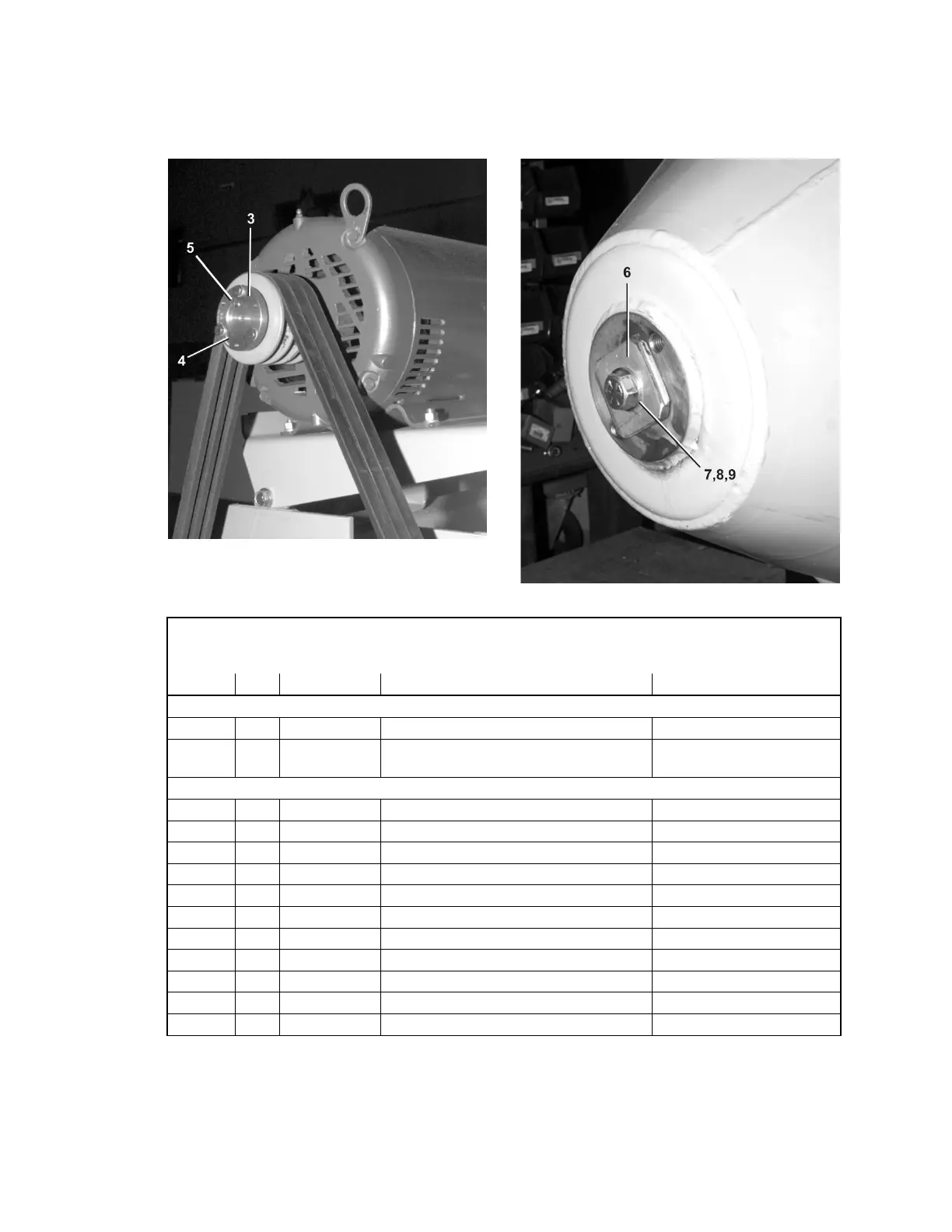

Figure 2: Detailed views
Table 1: Parts List—Drive Components Identification
Find the assembly for your machine and the letter shown in the "Item" column. The components for your
machine will show this letter or the word "all" in the "Used In" column. The numbers shown in the "Item"
column are those shown in the illustrations.
Used In Item Part Number Description/Nomenclature Comments
Assemblies
A D17 00550 Drive chart 3626X 50/60CYL 36026X8J,X8R
B D17 00650 Drive chart 4226/32X 50/60CYC 42026X7J,X7W,X7R
42032X7J,X7W,X7R
Components
A 1 56VB122XM3 V-belt
B 1 56VB131XB3 V-belt
all 2 X2 21931 Pulley
all 3 56034B3SH V-pulley
A 4 56Q1GSH Bushing 1-3/8"
B 4 56Q1MSH Bushing 1-5/8"
all 5 15E230 Key
all 6 02 14359A Spacer
all 7 15U321H Washer
all 8 15K232A Bolt
all 9 20C008C Adhesive, LCT24241
— End of BIMXCM02 —
