Door Latch

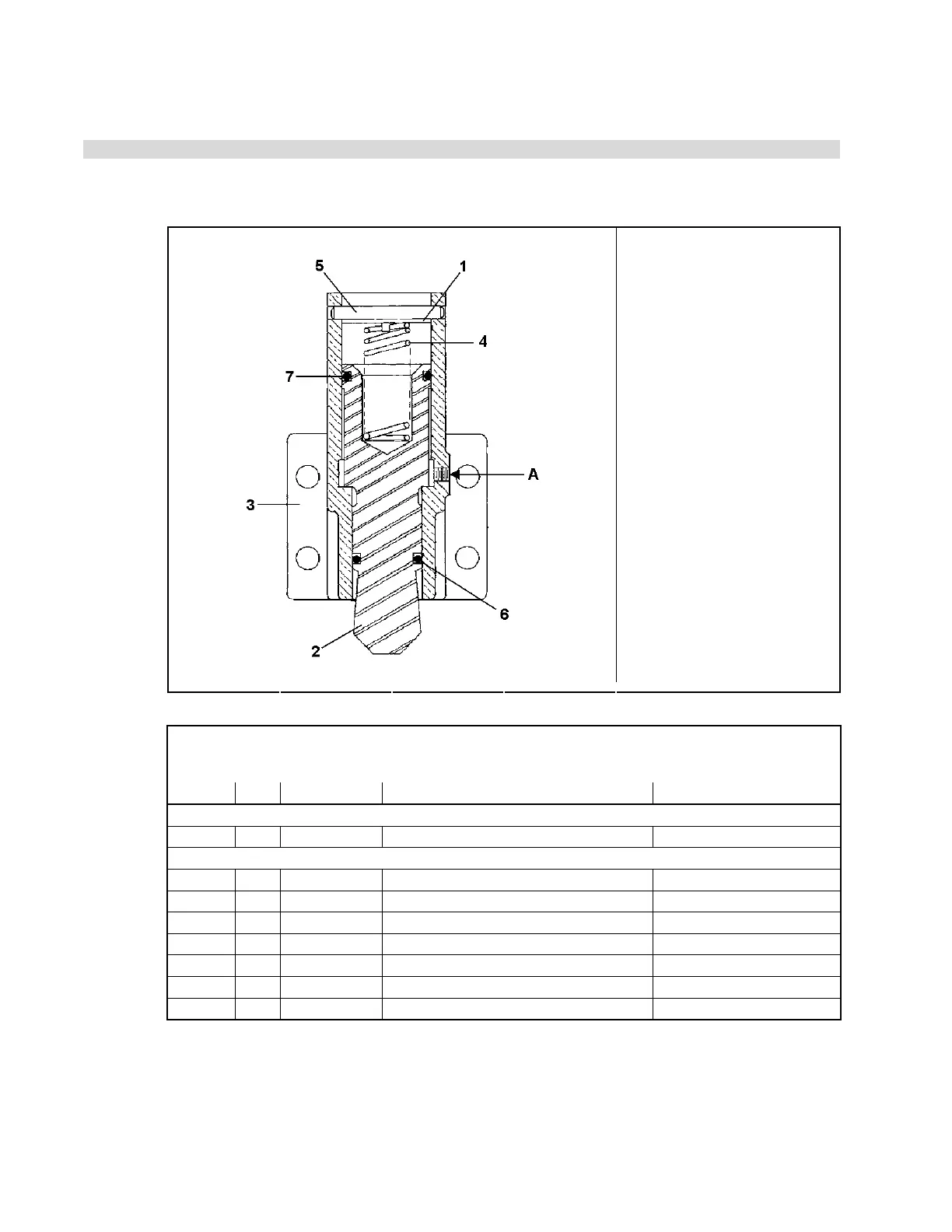

Figure 1: Door Latch
Cross Section Legend
.
A. Compressed air
Table 1: Parts List—Door Latch
Find the assembly for your machine and the letter shown in the "Item" column. The components for your
machine will show this letter or the word "all" in the "Used In" column. The numbers shown in the "Item"
column are those shown in the illustrations.
Used In Item Part Number Description/Nomenclature Comments
Assemblies
A SA 15 028 Assembly, Door latch
Components
all 1 02 15105 Retainer ring
all 2 02 15297 Striker
all 3 02 15298 Cylinder
all 4 02 15836 Spring
all 5 15H090 Pin
all 6 60C122 O-ring, 1"X1/8
all 7 60C128 O-ring, 1+3/8X1/8
— End of BIIFGM19 —
