Suspension Settings
PELLERIN MILNOR CORPORATION

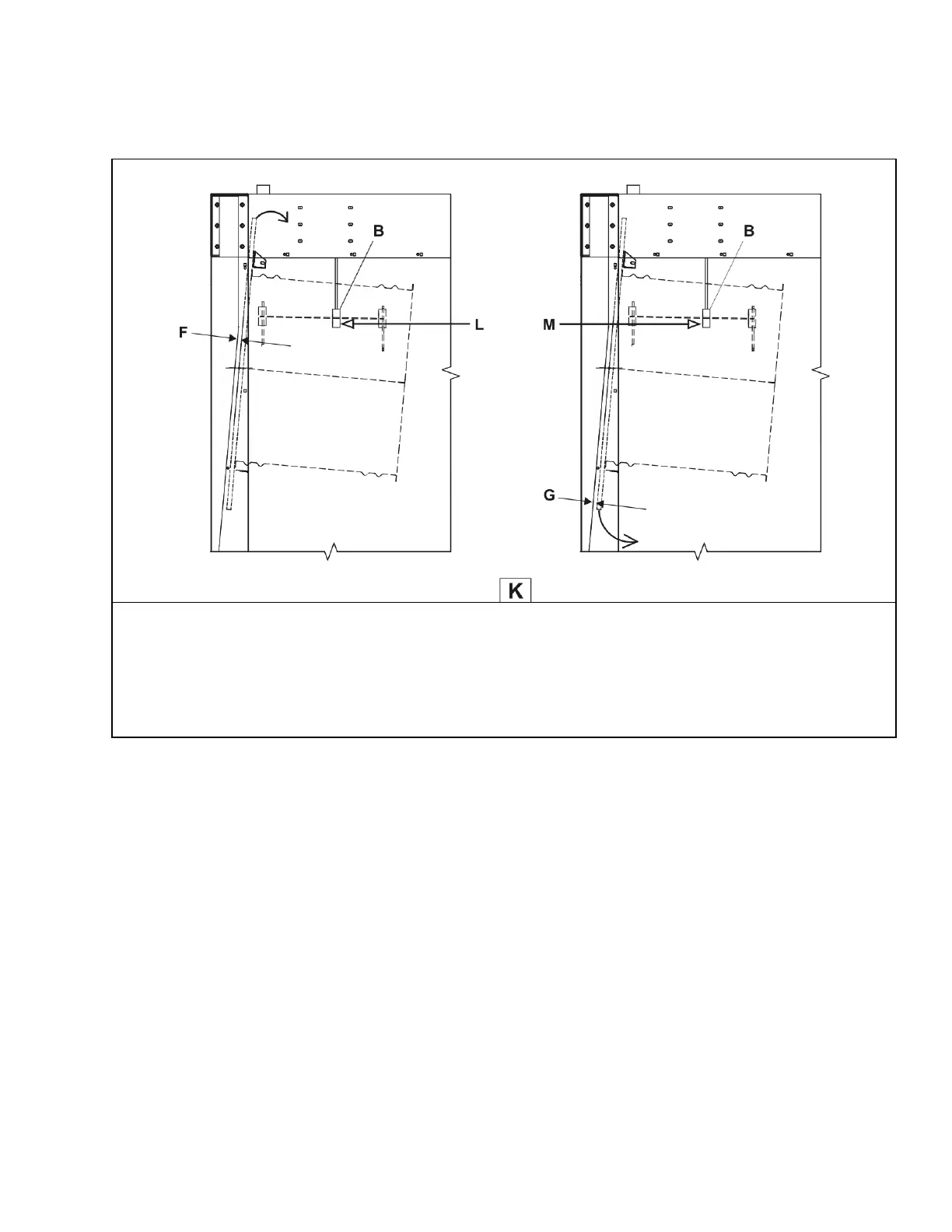

Figure 2: Detailed views
Adjusting the shell front positions.
Legend
F. This distance should be 1.50"[38] +/- .125"[3].
G. This distance should be 1.25"[32] +/- .125"[3].
K. Adjusting the shell front positions.
L. Tap the ball bushing forward to increase the space between the upper shell front and the angle of the corner posts.
M. Tap the ball bushing rearward to increase the space between the lower shell front and the angle of the corner posts.
.
— End of BIMXCM07 —
