Suspension Settings

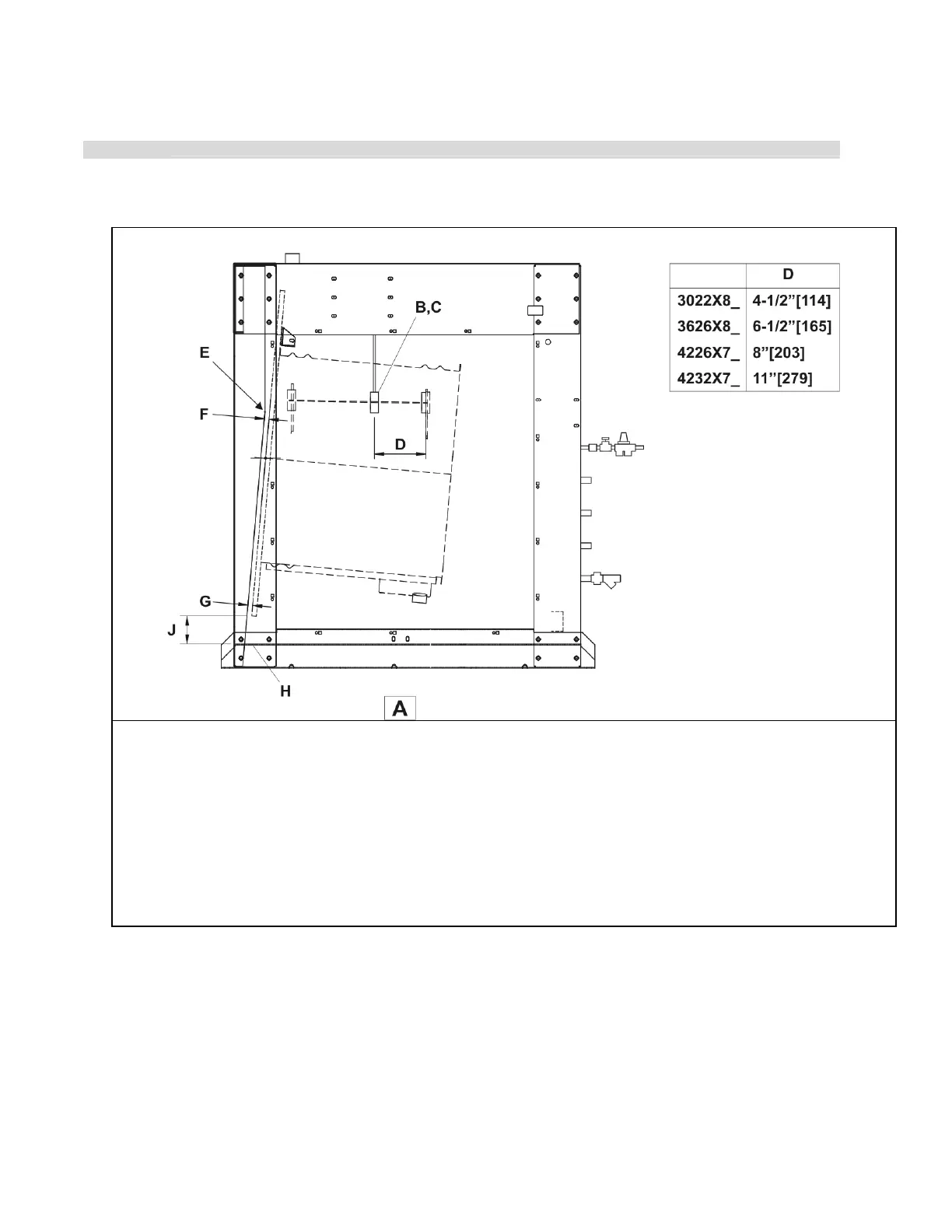

Figure 1: Suspension Settings
The initial positions for the suspension.
Legend
A. The initial positions for the suspension.
B. Lower ball bushing
C. Initially set the lower ball bushing the distance "D" from the shell mounting bracket.
D. Chart dimensions
E. The point on the front corner posts where the angle changes.
F. This dimension must be in this range: 1.50"[38] +/- .125"[3].
G. This dimension must be in this range: 1.25"[32] +/- .125"[3].
H. The top of the inside base channel.
J. This dimension must be in this range: 6"[152] +/- .5"[13].
.
