16 Probes and Biopsy
Out of Plane Needle Guidance GUI
16.4.2 Preset
eSpacial Navi Needle Menu
Select [eSpacial Navi] > [eS.Navi Needle] to enter the “eS.Navi Needle” menu.
Controls are as shown in Table 16-6.
eS.Navi Settings Menu
Tap [eSpacial Navi] > [eS.Navi Settings] to enter the “eS.Navi Settings” menu, and tap the items to
be displayed on the screen.

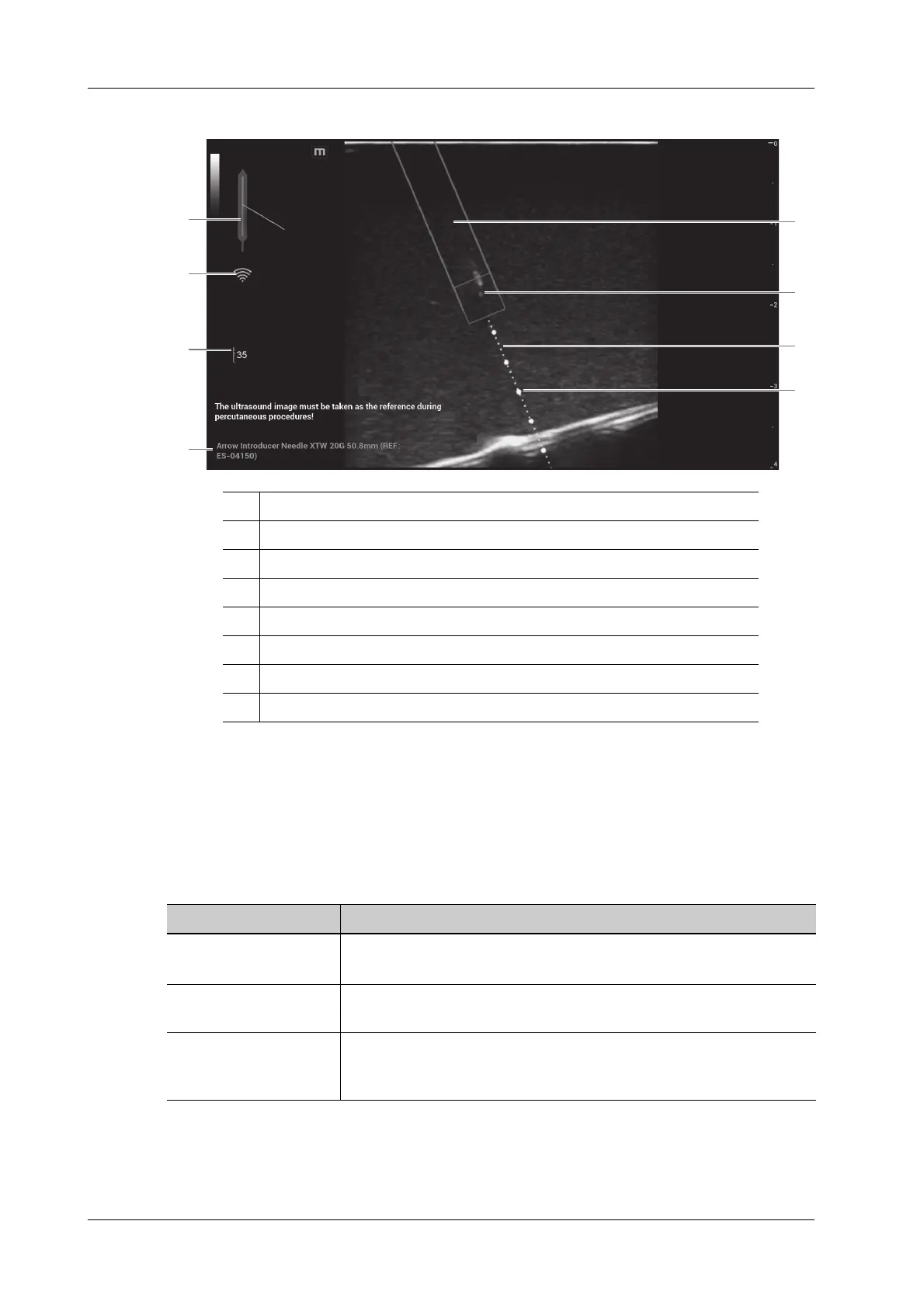

1 Alignment indicator (plan view)
2Filed strength
3 Maximum depth at which the needle can be detected
4 Selected needle type
5 Scale of guideline (5 mm/scale)
6 Projection position of the needle guidance trajectory in the ultrasound plane
7 Position at which the needle cross the ultrasound plane
8 Needle projection position in the ultrasound plane
1
2
3
4
6
5
7
8
Table 16-6 eSpacial Navi Needle settings
Item Description
Needle Select the desired needle from the drop-down list.
You can set the most frequently used needle to a favorite one.
Display Favourite Only After it is ticked, only the favorite needles are displayed on the needles
list.
Auto Optimize After it is ticked, the system adjusts focus position automatically
according to the position of the needle tip, and enable or disable
ExFOV function.
