Structure and Assembly/Disassembly 9-45

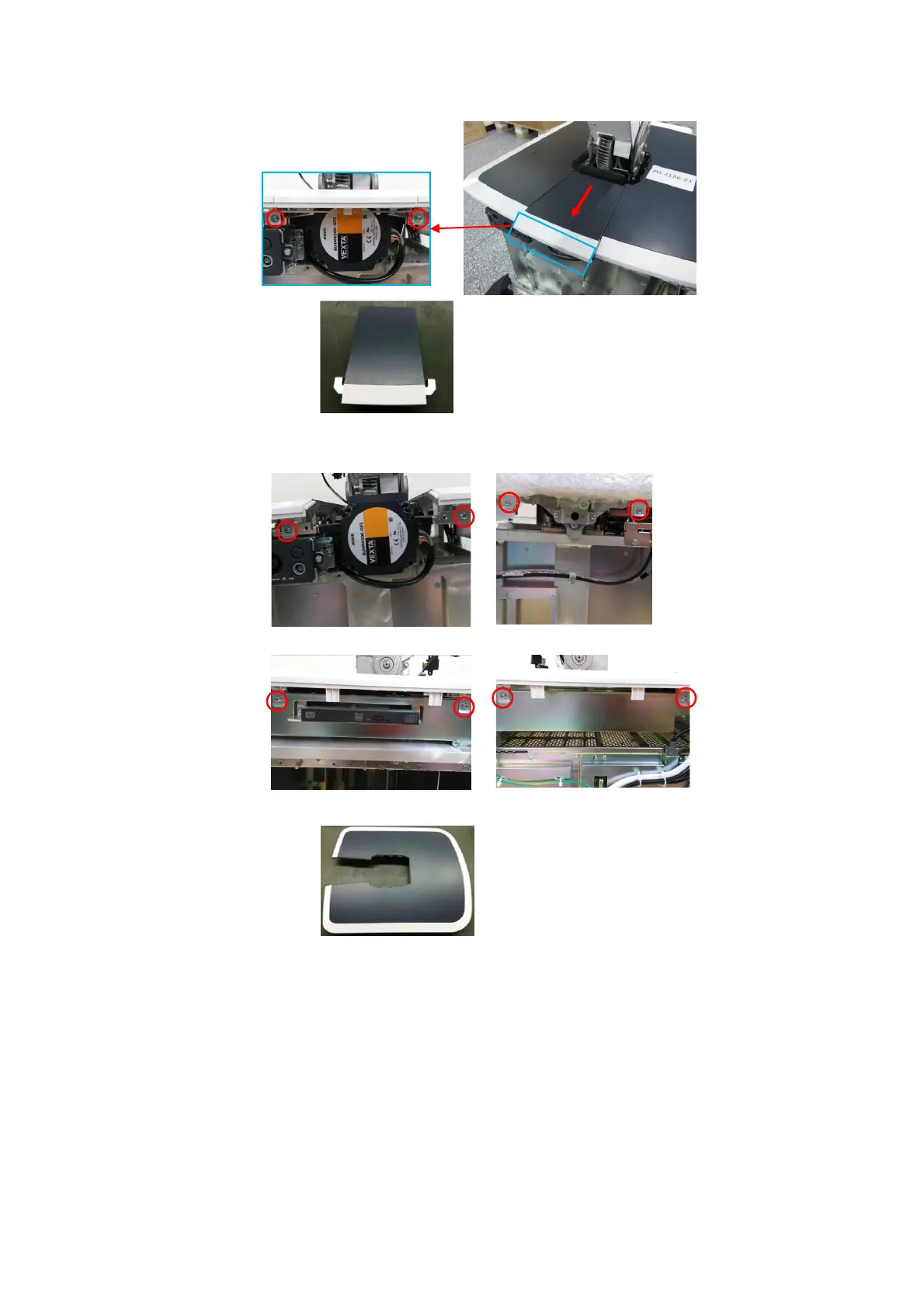

3. Unscrew 8 M4 X 12 cross panhead screws with screwdriver (M3, M4) to remove the upper front
cover of the main unit.
9.3.23 Right/Left Brake Pedal
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.19 for details.
2. Unscrew 4 M4 X 12 cross panhead screws with cross-headed screwdriver (M3, M4).
F
ront
Back
Left
Right
T
op cover assembly of the main unit
Front cover assembly of the main unit
