Mindray Nuewa R9 Elite User Manual

Installing Options 10-9
The cover can back to the original position through inverse operation of step1.
10.2.4 iClear
+
Dongle
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove.
1. Take off the iClear
+
Dongle cover, and insert the dongle to the USB port of the ECG module

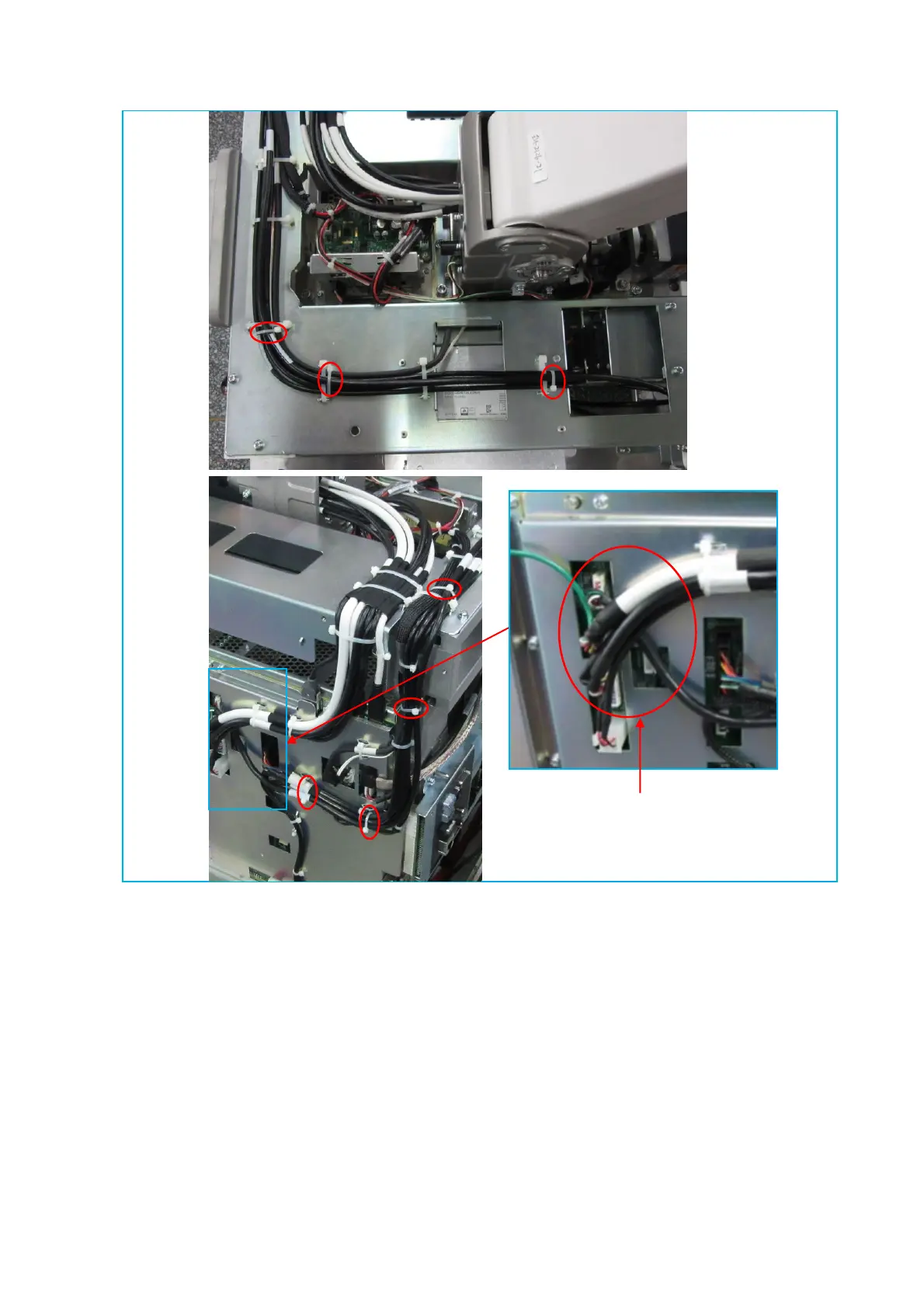

signal cable on the mother board at the back of the system, as shown in the following figure.
The pencil probe signal line can be
connected with mother board after passing
through keyboard low speed signal line.
