Mindray Nuewa R9 Elite User Manual

3-14 System Installation

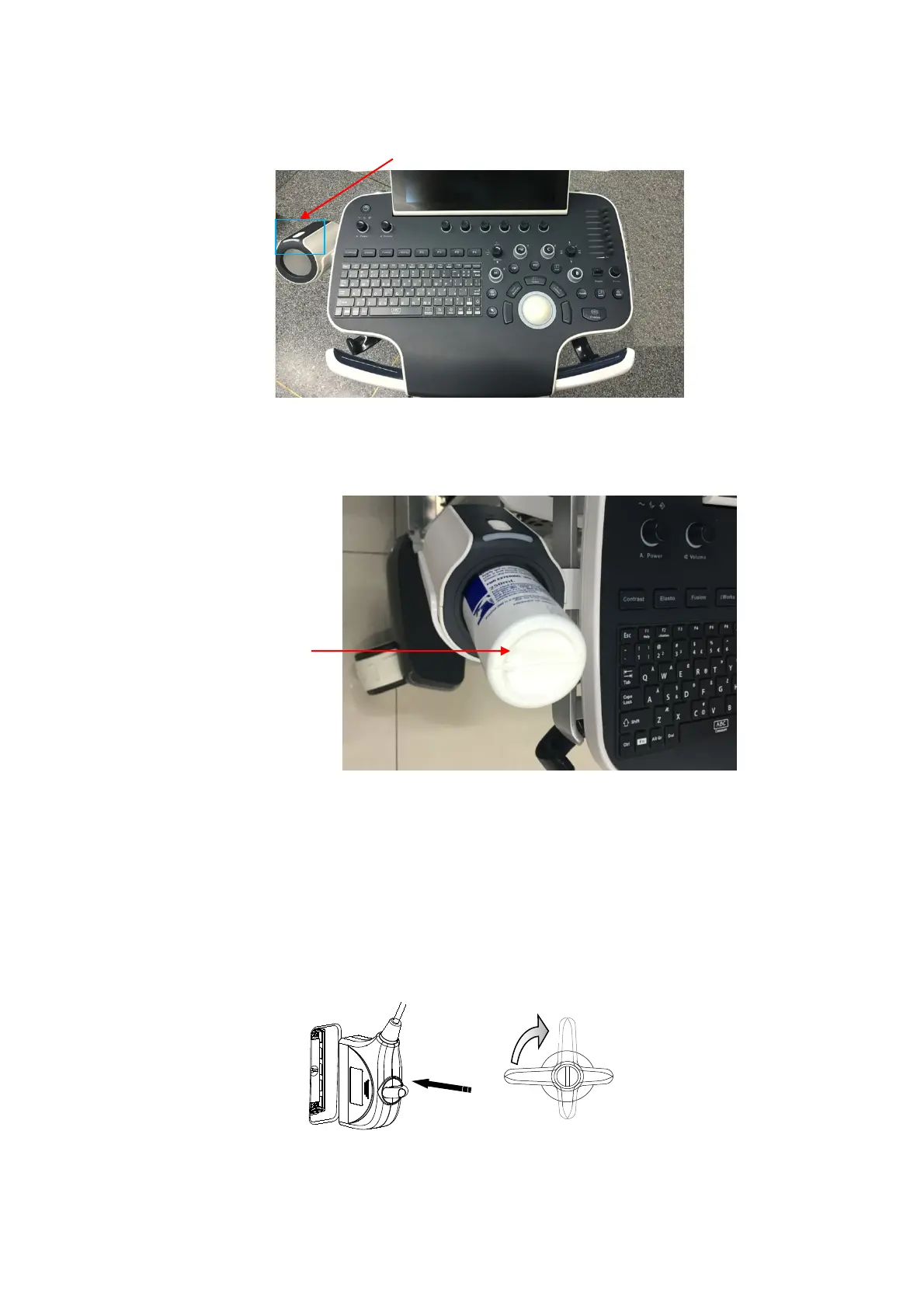

 Placing the gel bottle:
Fasten the gel bottle, and then place the bottle in the gel warmer. See the figure
below:
3.4.6 Connecting the Transducer
Four sockets (A, B, C, D) are configured on the system; every socket can be connected
with all types of supported transducers.
1. Keep the cable end of the transducer to the up side of the system, and insert the
connector into the socket of the system, and then press in fully. (Shown as the left
figure)
2. Turn the lock handle 90° clockwise to lock it securely. (Shown as the right figure)
Lock
The indicator of the gel
warmer facing outside
Fasten the gel
bottle, and
then
place the bottle
in
the gel
warmer
.
