Structure and Assembly/Disassembly 9-69

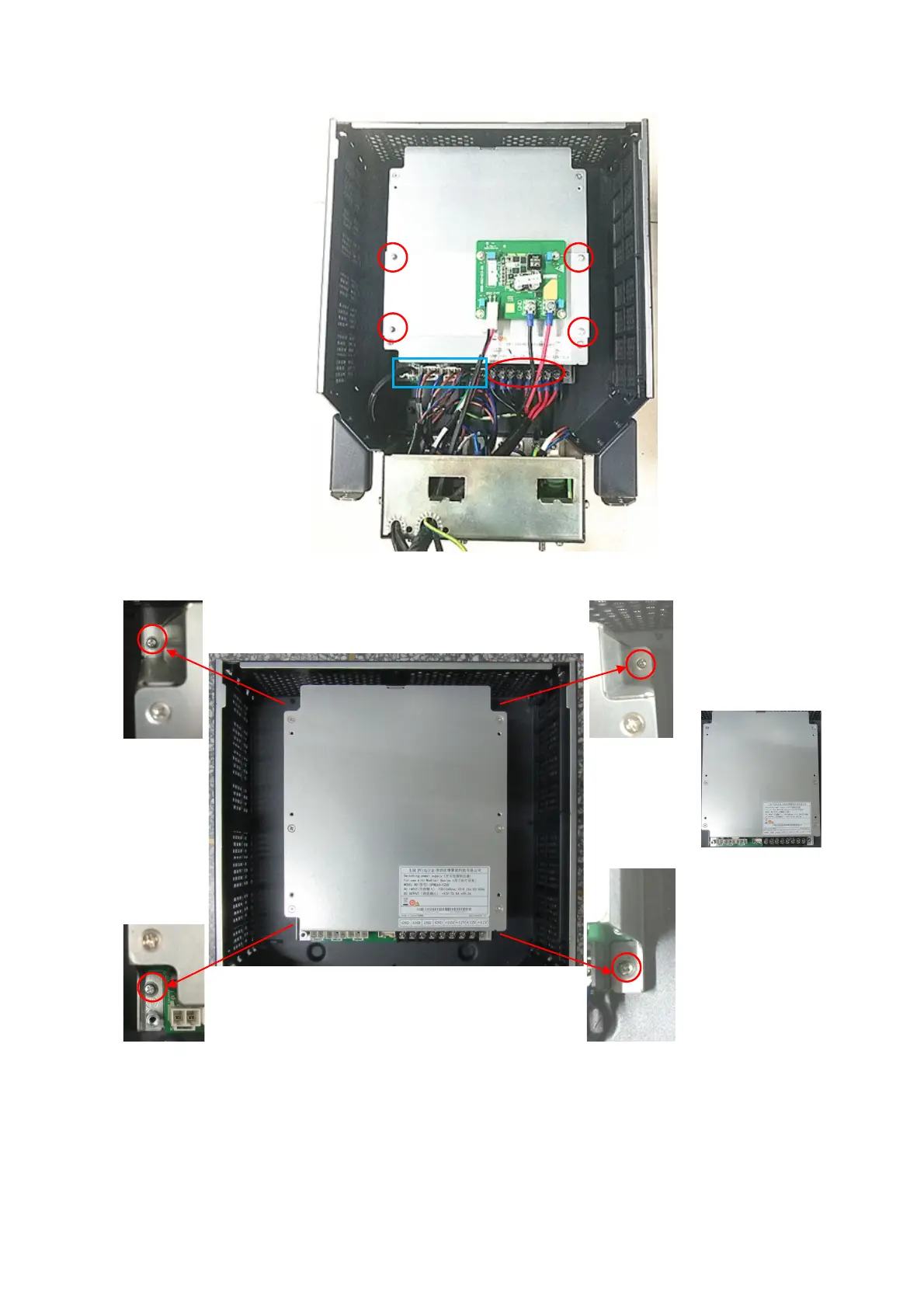

3. Unscrew four M3X8 cross panhead screws from AC Power assembly with the screwdriver (M3,
M4) to remove AC power assembly (FRU).
9.3.32 HDD Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
AC power
assembly (UR
POWER/FRU)
