Mindray Nuewa R9 Elite User Manual

9-72 Structure and Assembly/Disassembly

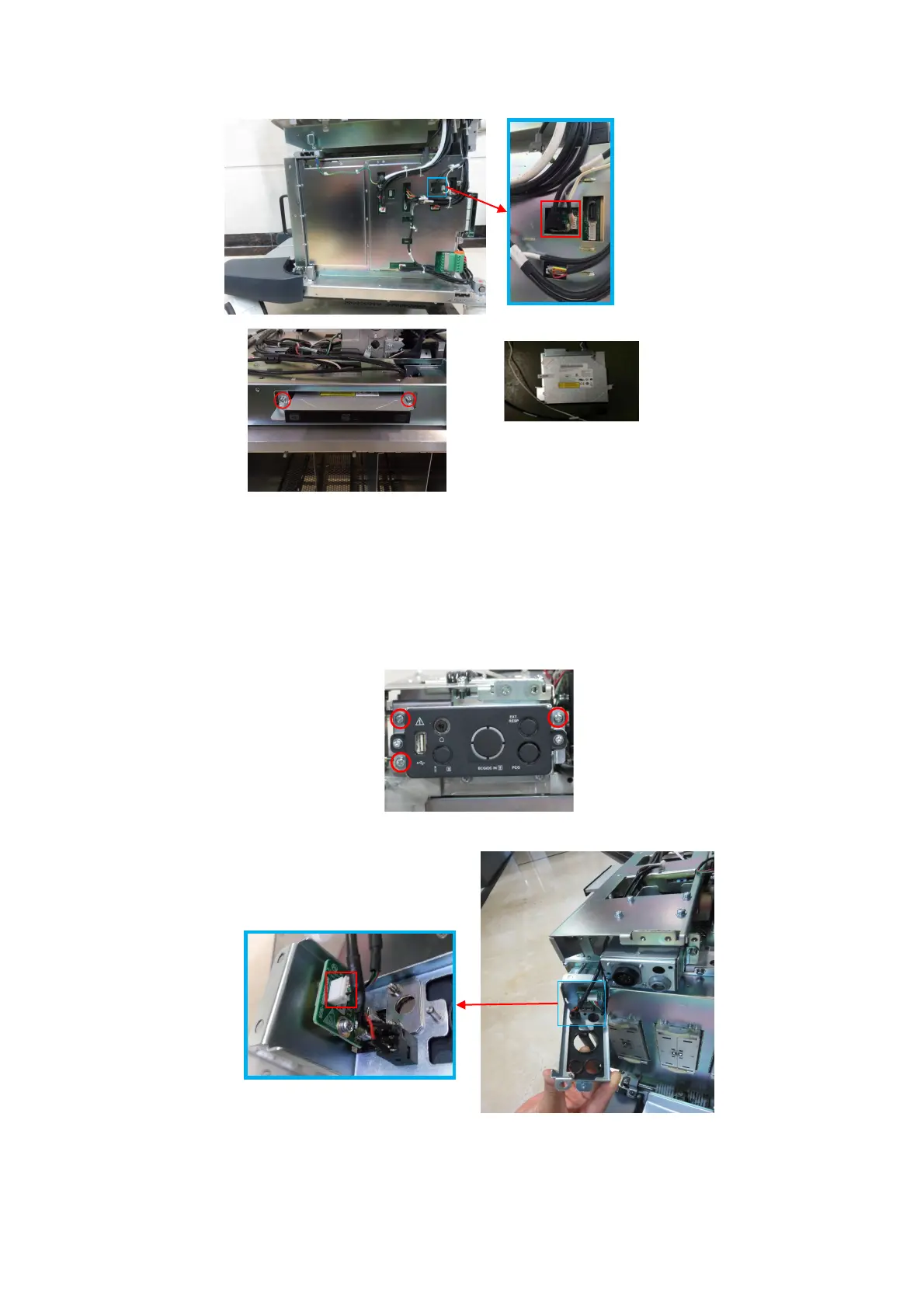

9.3.34 Front Output panel
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.16, 9.3.17, 9.3.18 and 9.3.19, 9.3.20 and 9.3.22 for details.
2. Unscrew 3 M4 X 12 screws from the output board assembly with cross-headed screwdriver
(M3, M4).
3. Unplug USB cable from the USB transforming board.
4. Cut 7 tie cables CHS-4X150 with diagonal cutting pliers.
USB connection cable
Drive power and round SATA
cabl
e
DVD
assembly (FRU)
