Structure and Assembly/Disassembly 9-59

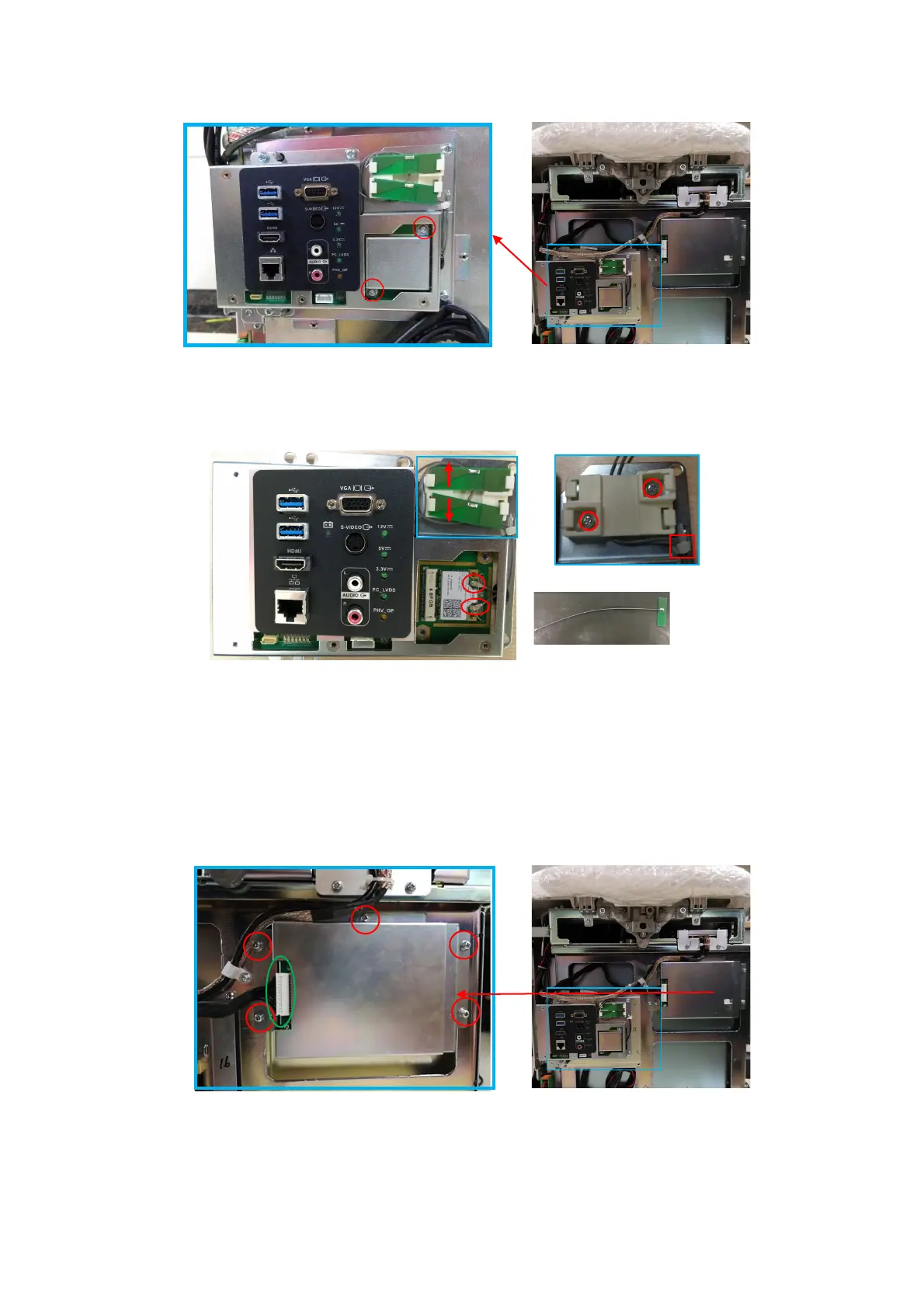

4. Push the antenna board towards arrow’s direction. Unplug 2 cable plugs from the wireless
network adaptor. Cut the tie cable CHS-3X100mm with diagonal cutting pliers. Unscrew 2 M3
X8 cross panhead screws with the screwdriver (M3, M4) to remove the bracket of the antenna
and cable. Pull the antenna and cables from the φ6.4 ring (FRU).
9.3.28 Battery Assembly
1. See Chapter 9.3.16, Chapter 9.3.26 and Chapter 9.3.27 for details.
2. Pull out the cable connecting battery management board and the mother board, unscrew 5 M3
X 8 cross panhead screws from battery assembly on the back of the machine with the cross
screwdriver (M4), and remove the battery assembly.
ntenna
