PARAMETERS
93
Pr. 37 "speed display"
Pr. 171 "actual operation hour
meter clear"
Related parameters
<Setting>

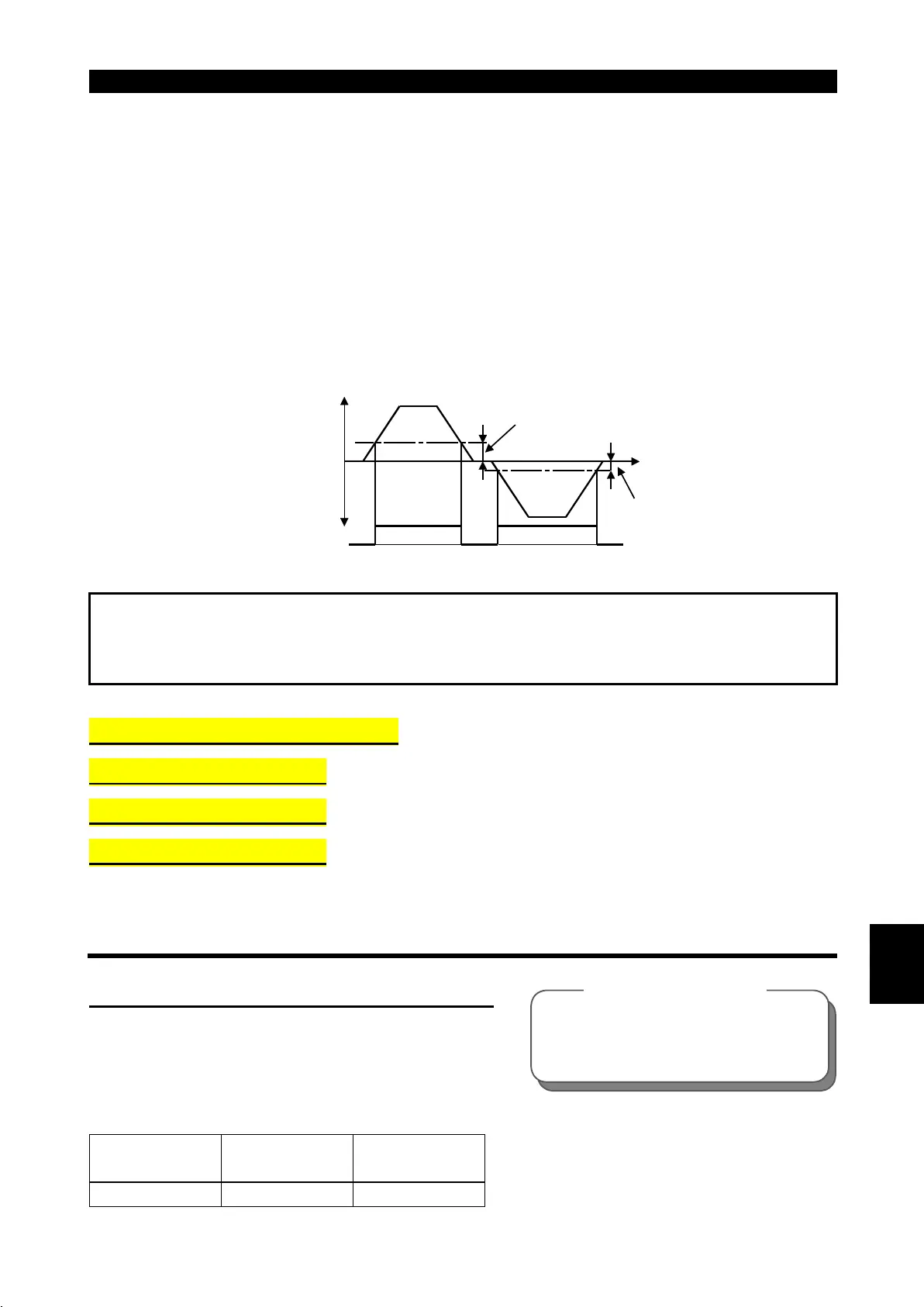

Refer to the figure below and set the corresponding parameters:
!
When Pr. 43
≠
9999, the Pr. 42 setting applies to forward rotation and the Pr. 43
setting applies to reverse rotation.
!
Assign the terminal used for FU signal output with any of Pr. 190 to Pr. 192 (output
terminal (remote input) function selection). Refer to page 132 for Pr. 190 to Pr. 192
(output terminal (remote input) function selection)
Output signal
ON
OFF OFF OFF
ON
Pr.42
Pr.43
Output signal
FU
Time
Reverse
rotation
Forward
rotation
Output frequency (Hz)
Note: Changing the terminal assignment using. Pr. 190 to Pr.192 may affect the
other functions.
Make setting after confirming the function of each terminal.
Pr. 44, Pr. 45
#
##
#
Refer to Pr. 7.
Pr. 46
#
##
#
Refer to Pr. 0.
Pr. 47
#
##
#
Refer to Pr. 3.
Pr. 48
#
##
#
Refer to Pr. 9.
4.2.17 Monitor display (Pr. 52)
Pr. 52 "PU main display data selection"
You can select the parameter unit (FR-PU04) main display screen.
Parameter
Number
Factory
Setting
Setting
Range
52 0 0, 23, 100
4
