1.3.5 Removal and reinstallation of the front cover
"
""
"
Removal
(For the FR-E520-0.1KN to 3.7KN)

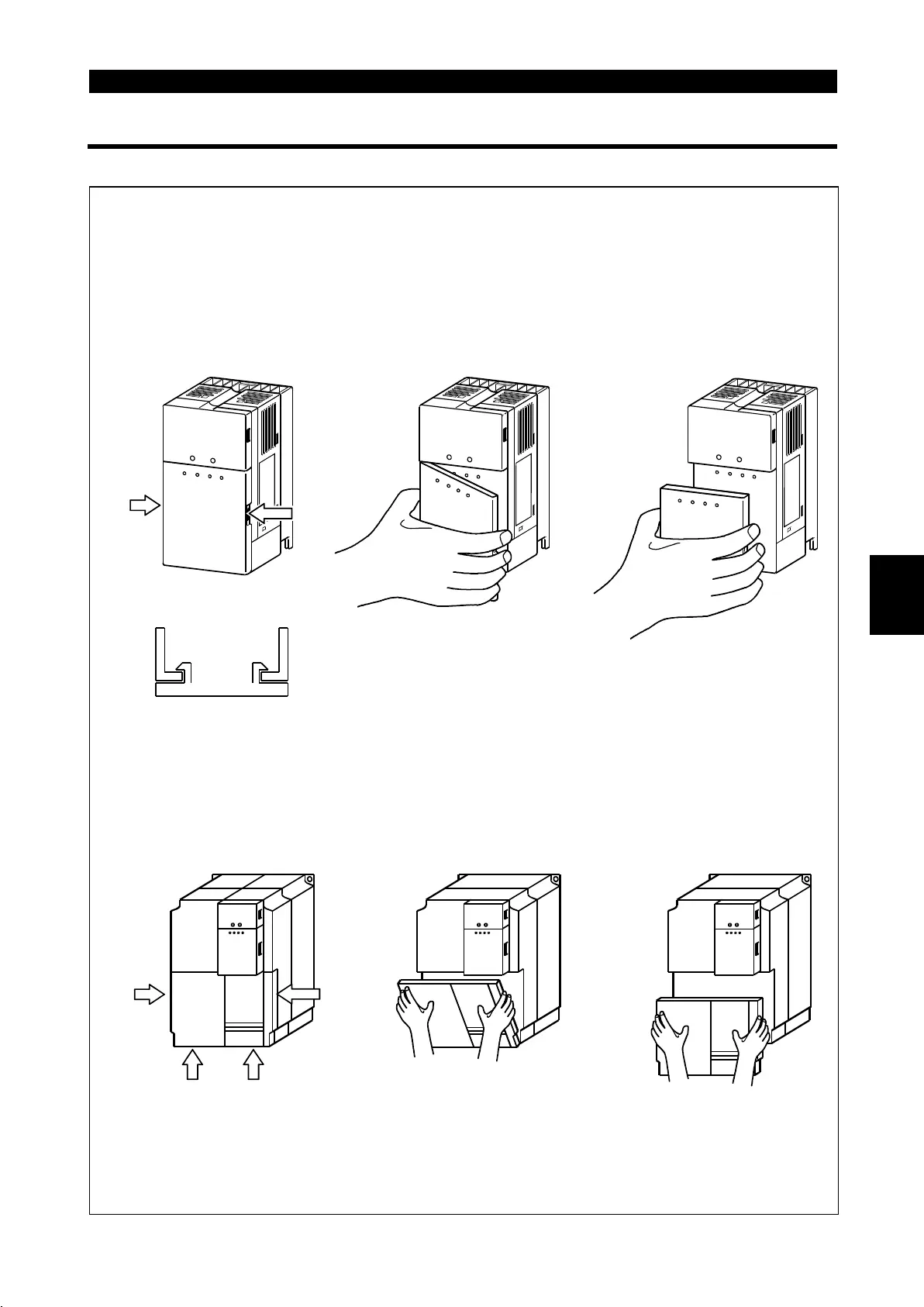

The front cover is secured by catches in positions A and B as shown below.
Push either A or B in the direction of arrows, and using the other end as a
support, pull the front cover toward you to remove.
1
)
2
)
3
)
A
B
(For the FR-E520-5.5KN, 7.5KN)
The front cover is fixed with catches in positions A, B and C.
Push A and B in the directions of arrows at the same time and remove the
cover using C as supporting points.
1
)
2
)
3
)
C
B
C
A
"
""
"
Reinstallation
When reinstalling the front cover after wiring, fix the catches securely.
With the front cover removed, do not switch power on.
1
