6.10 Intelligent Function Module Switch Setting
6 - 43
1
Overview
2
Performance
Specification
3
Sequence Program
Configuration and
Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files
Handled by CPU Module
6
Functions
7
Communication using
built-in Ethernet ports of
CPU module
8
Communication with
Intelligent Function
Module
(3) Setting the Switches of the Intelligent Function Modules and Interrupt
Modules
At the "I/O assignment" tab screen in the "(PLC) Parameter" dialog box, specify the
desired switch setting. Select "Intelli." in the "Type" column of a slot for which to set
the switches of the intelligent function modules and interrupt modules.
1) Make I/O assignment.
2) Select the button.
3) Set the module switches.

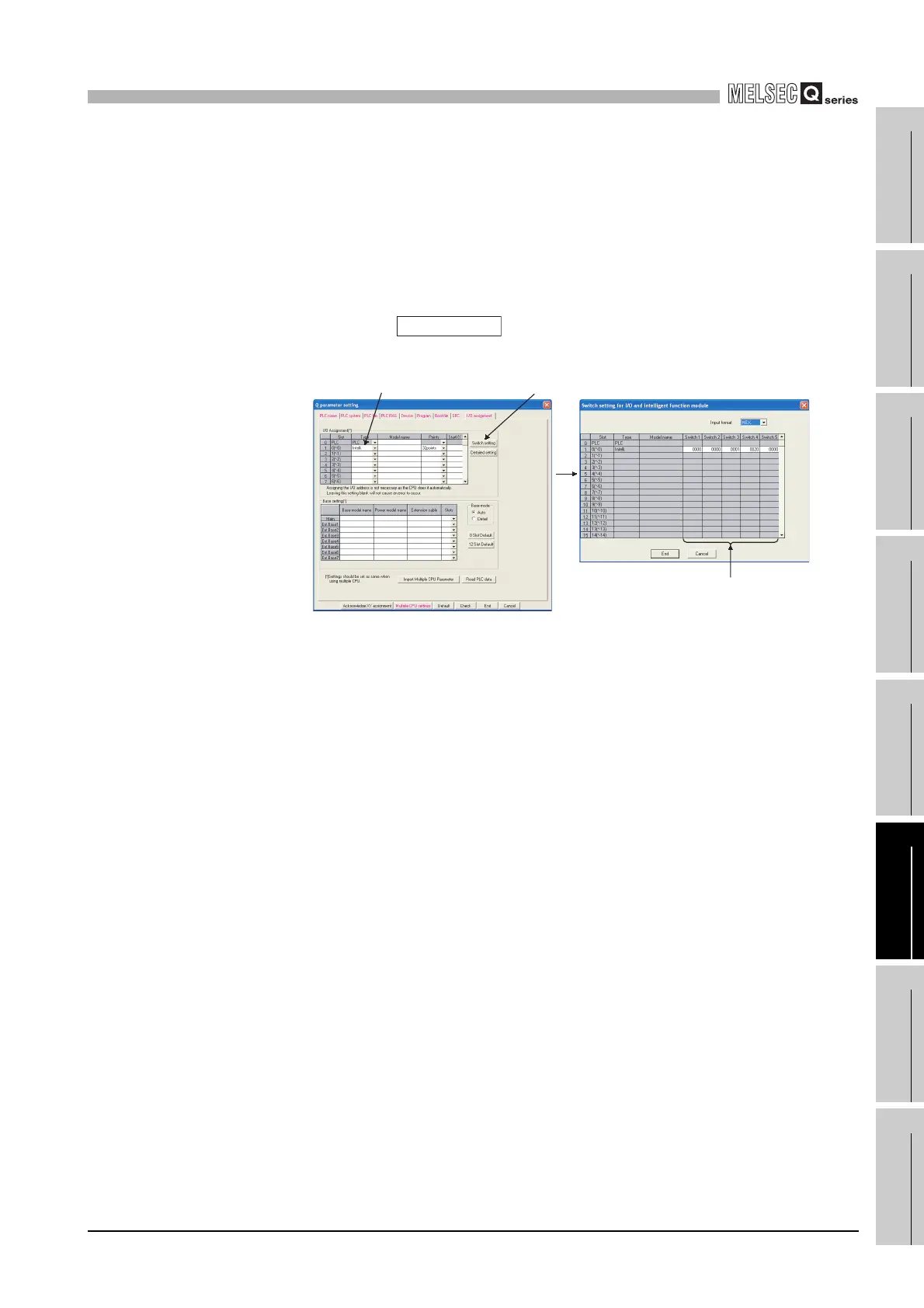

Figure 6.27 Switch setting sequence
switch setting
1) Make I/O assignment. 2) Select "Switch Setting".
Designate the contents of the intelligent
function modules and interrupt modules switch.
3)
To Next Page
