1.3 Devices and Instructions Convenient for Programming
1
OVERVIEW
(c) Input need not be pulsed by use of differential contact
An input need not be pulsed by use of a differential contact( / ).
(d) Direct access to intelligent function module buffer memory
The intelligent function module buffer memory can be handled as devices for
programming. ( Section 10.5)

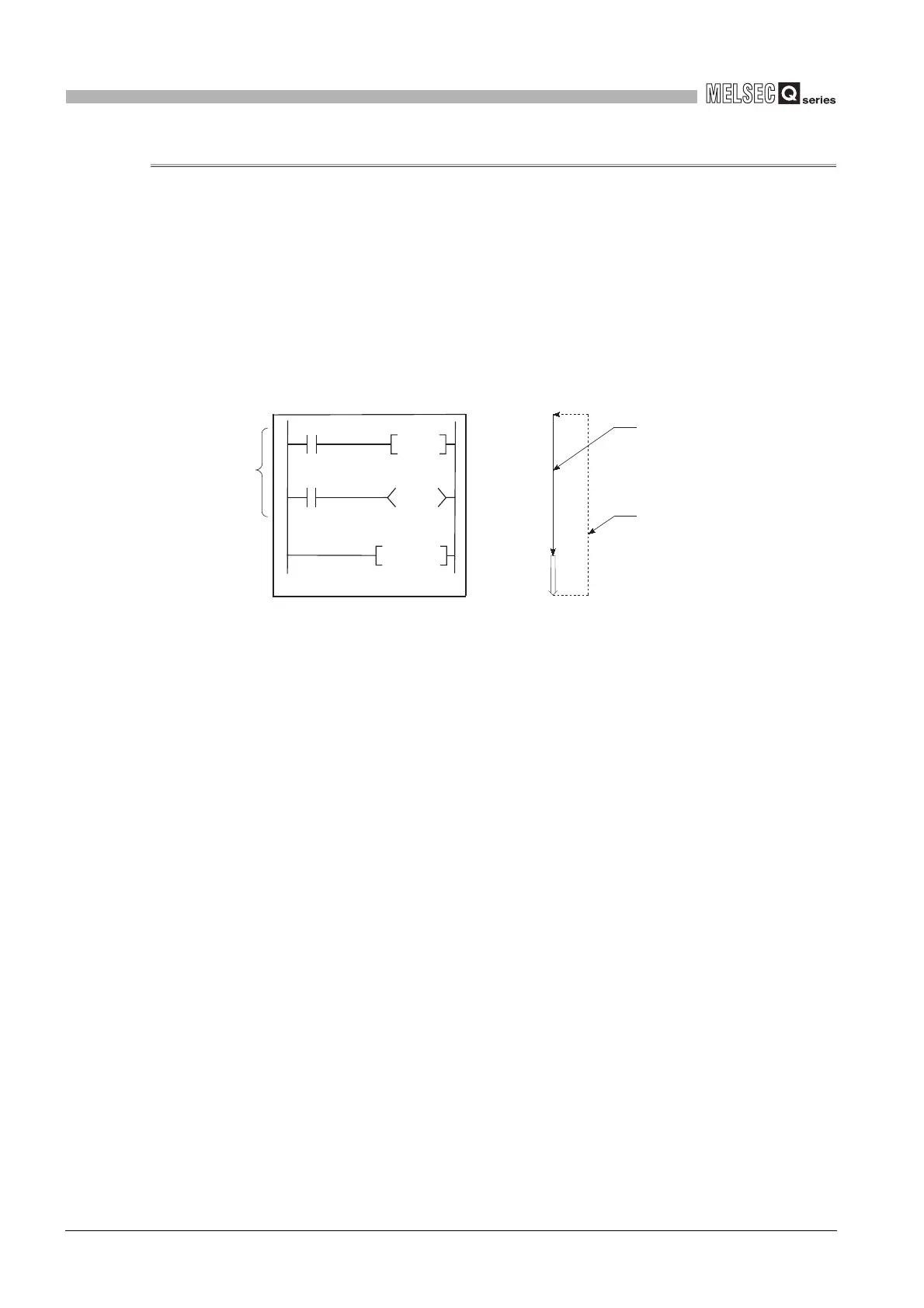

Figure 1.22 Use of differential contact
Figure 1.23 Direct access to intelligent function module buffer memory
X0
X1
Y100
M0
X0
Y100
Y100
X1
Y100
Differential contact
ON at leading
edge of X0
M0PLS
X0
D0U4\G12
+P
U4\G12
Readout of Q64AD
buffer memory's
address 12 data
I/O Nos.:X/Y40 to X/Y4f
Buffer memory
address designation
Intelligent function module
designation
Input module Input module Input module
Q64AD Q64AD Q62DA
Output module Output module
16
points
16
points
16
points
16
points
16
points
16
points
16
points
16
points
012 45673
*
1
*1
