9-222
UHF Band 2 Ci
rcuit Board/Schematic Di
agrams and Parts List (PCB 8486686Z02)
HF SHIELD
C188
36pF
240
R170
ANT_BIAS
240
R101
100pF
L105
C108
1
TX_OUT
RF_JACK
390nH
SHIELD
SH100
C107
2
3
1
3.3pF
CR102
CR101
12.39nH
L104
L102
L101
12.39nH
C106
12.39nH
4.7pF
6.2pF
C104
13pF
C103
C102
6.2pF
100pF
C101
RX_IN

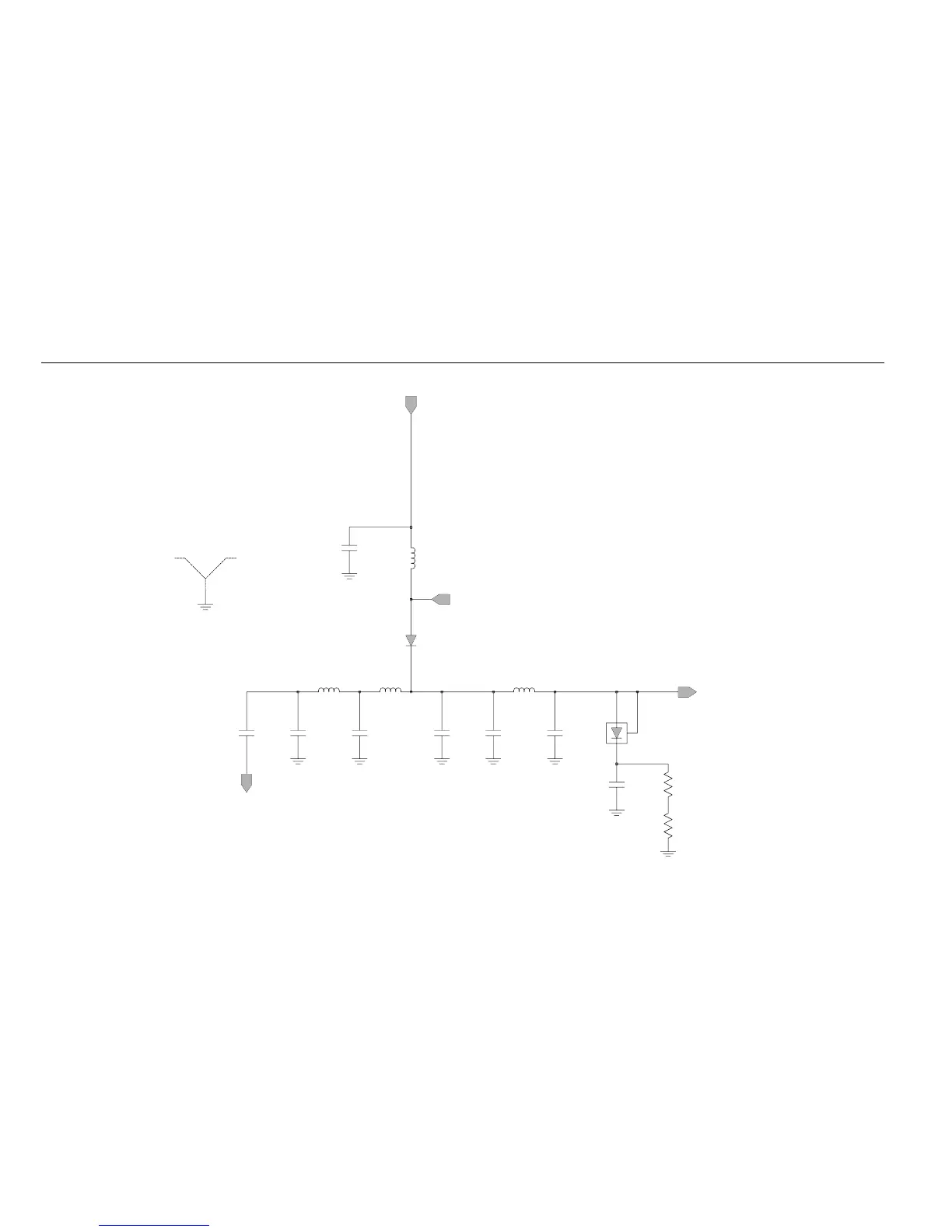

Figure 9-133. UHF (450-527 MHz) Harmonic Filter Schematic Diagram
371
