9-472
900 MHz Circuit Board/Schematic Diagrams and Parts List (PCB 8471203M01)
Flat_Tx_Rtn
SrD_Rtn
INT_EXT_Vdd
Key_Intrp
LED_EN
DB1
Tx_Aud_Rtn
Rx_Aud_Snd
DB2
DB3
Rdy/Req
INTERFACE
DB7
A0
R/W*
RST*
DB0
DB4
DB5
DB6
PTT
SCK_Snd
CS*
ON
VS_INT
VS_RAC
Gnd
Key_Row
Key_Col
SrD_Snd
VS_GAINSEL
Opt_Bd_En
OFF_BATT_DATA_OUT
J400-6
J400-14
J400-4
J400-24
J400-8
J400-25
J400-11
J400-16
J400-32
J400-23
J400-30
J400-1
J400-2
J400-20
J400-10
J400-28
J400-26
J400-12
J400-29
J400-13
J400-31
J400-18
J400-21
J400-27
J400-5
J400-7
J400-15
J400-3
J400-9
100pF
C463
J400-19
J400-22
J400-17
EXT_MIC
VS_AUDSEL
VS_GAINSEL
MISO
VS_RAC
D7
D4
D5
D3
D6
D2
D1
D0
Vddd
TX_AUD_SND
PTT
SWB+
KEYPAD_ROW
KEYPAD_COL
A0
R_W
RESET
LCD_SEL
LEDBL
KEY_INT
INT_EXT_Vdd
VS_INT
OFF_BATT_DATA_OUT
OPT_ENA
DATA
RDY
FLAT_TX_RTN
TX_AUD_RTN
VS_CS
CLK
FLAT_RX_SND
RX_AUD_RTN
URX_SND
Vddd
SW_B+
Tx_Aud_Snd
40-PINS CONNECTOR
VS_CS
800 MHz only
J400
EXT_MIC
Det_Aud_Snd
Rx_Aud_Rtn
VS_AUDSEL
J400-35
J400-36
J400-39
100pF
C404
C482
0.1uF
100pF
C458
E408
E407
J400-40
R481
24K
E405
J400-37
J400-34
E402
C459
E401
100pF
0.1uF
C467
E409
E400
E406
C481
0.1uF
J400-38
C466
100pF
J400-33
E404
E403

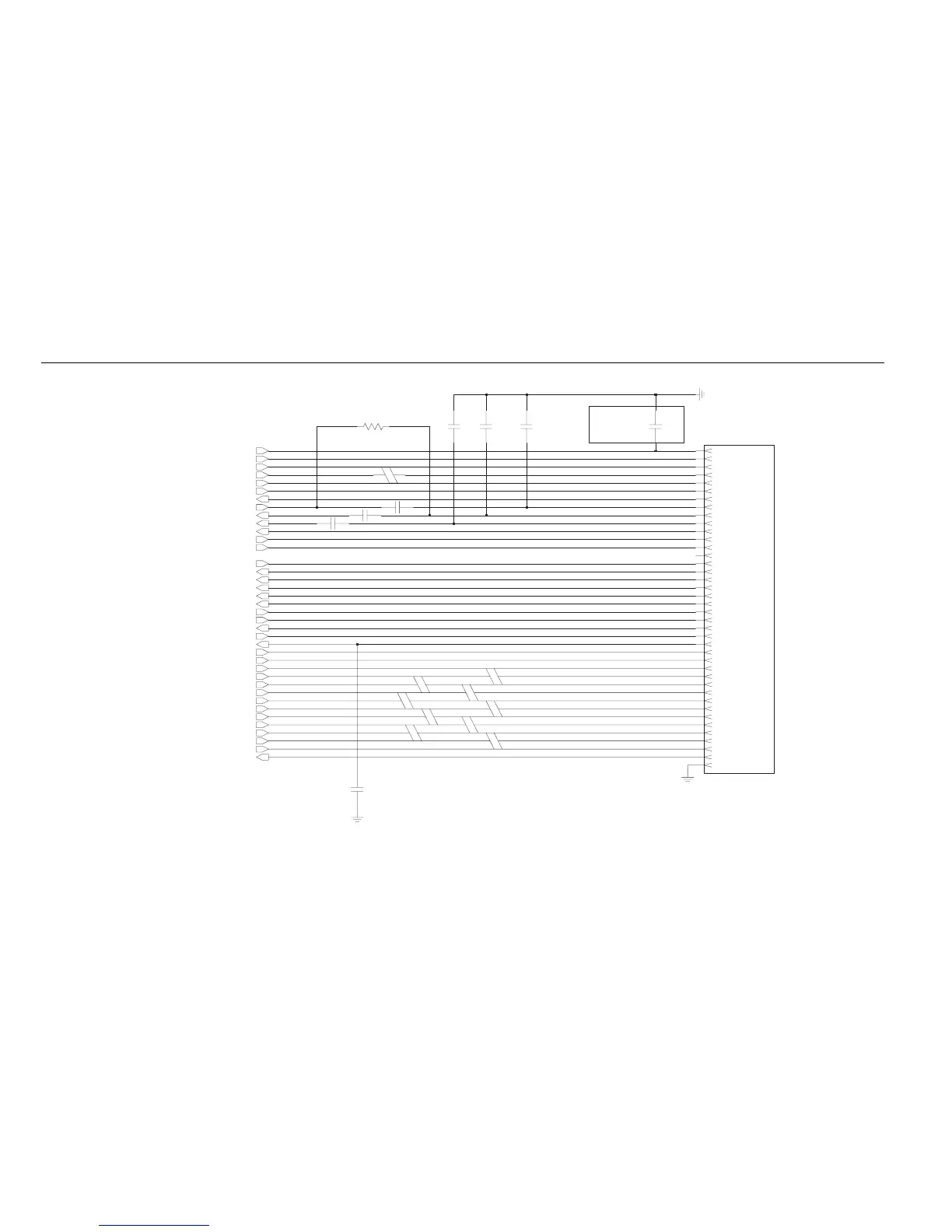

Figure 9-277. 900 MHz Controller Interface
621
623
