9-456
900 MHz Circuit Board/Schematic Diagrams and
Parts List (PCB 8485910Z01)
-53 dBm
Note 1, Note 2
-41 dBm
Note 1, Note 2
-50.3 dBm @ 109.65 MHz
Note 1
IF
LO_TEST
R
X_IN
Vdda
RAW_RSSI
R5
R5
RSSI
FE_AGC
RX_LO
Filter
2.5V Note 2
3V Note 3
0.75V
3.15V
Notes:
1. Measured using high impedance probe.
2. Measured with -50dBm
938 MHz
RX signal at the antenna input.
3. Measured with no RX signal at the antenna input.
0.75V
2.95V
0.58V Note 2
0.2V Note 3
R5
-2 dBm @ 828.35 MHz
Note 1
Mixer Shield
RXFE T
op Shield
+5.5 dBm @ 828.35 MHz
Note1
51
Q302
4
1
C313
68pF
R310
12K
15pF
C310
100K
R333
15K
R332
C303
47pF
C305
47pF
56pF
C301
R317
8.2K
R306
5.6K
8.2pF
C300
R307
56K
GND
3
2
1
NC
4
5
VCC
12nH
U302
R328
L304
FL300
GND
3
IN
1
OUT
2
15K
4
3
1
2
5
U303
Q304
SH303
C320
0.1uF
30pF
C312
39
R327
R315
1K
CR301
56pF
C306
820
R318
R326
47
3.6K
R323
100nH
L302
L301
3.9nH
L308
47nH
R320
120
3
GND
1
IN
2
OUT
FL301
R334
24K
L306
68nH
47pF
C317
R309
680
L303
390nH
39K
R331
3.3pF
C321
6.8nH
L311
20K
R330
560
R324
5.1pF
C315
L307
27nH
C316
47pF
SH301
0.1uF
C304
R322
2
3
1
120
CR300
1pF
68pF
C308
C314
68pF
C309
L309
100nH
68pF
C311
6
GND4
7
GND5
2
IF
5
LO
8
RF
U301
1
GND1
3
GND2
4
GND3
R325
30K
56pF
C307
L310
3.3nH
R321
R312
330
FL0830707O

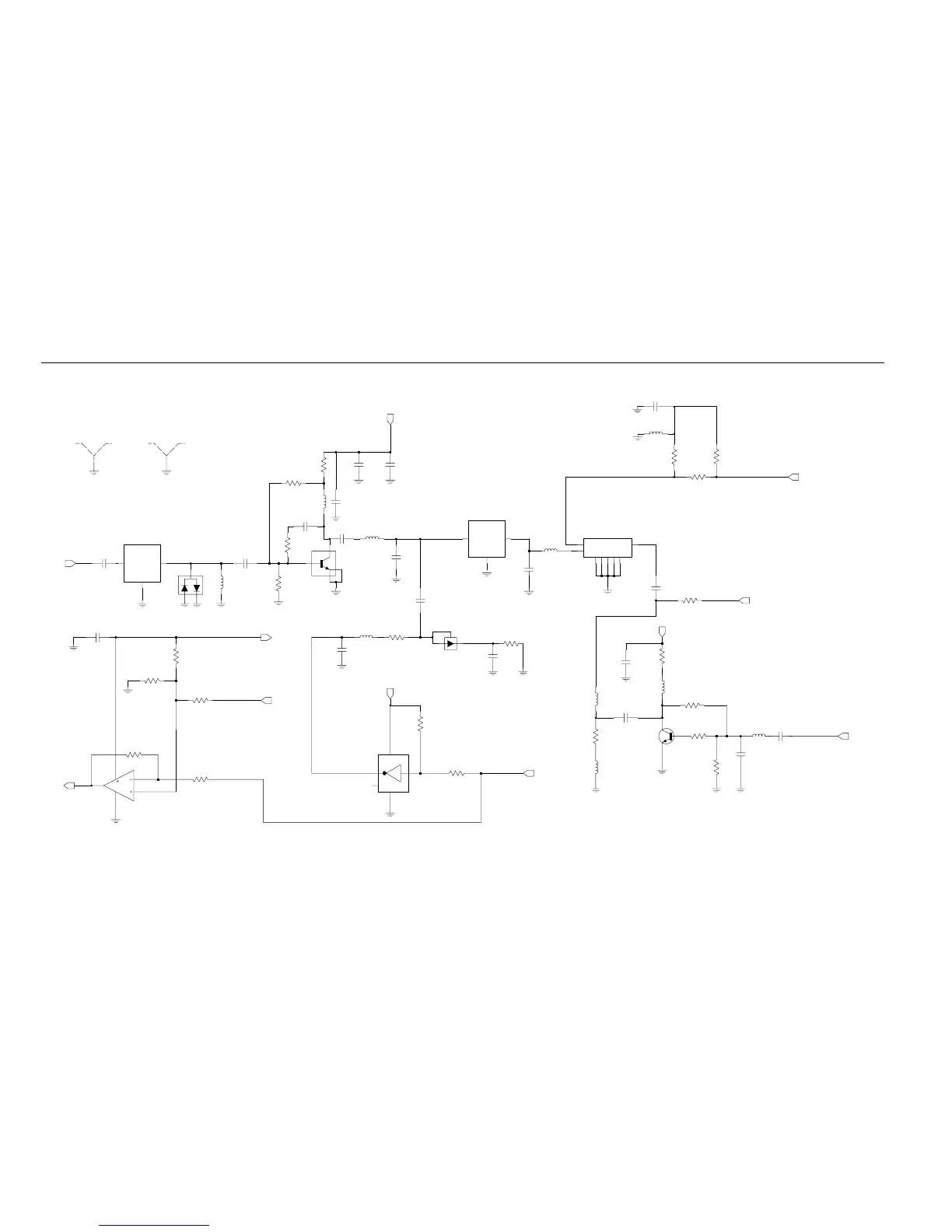

Figure 9-279. 900 MHz Receiver Front End Schematic Diagram
