2 - 16 MC75A Enterprise Digital Assistant Integrator Guide

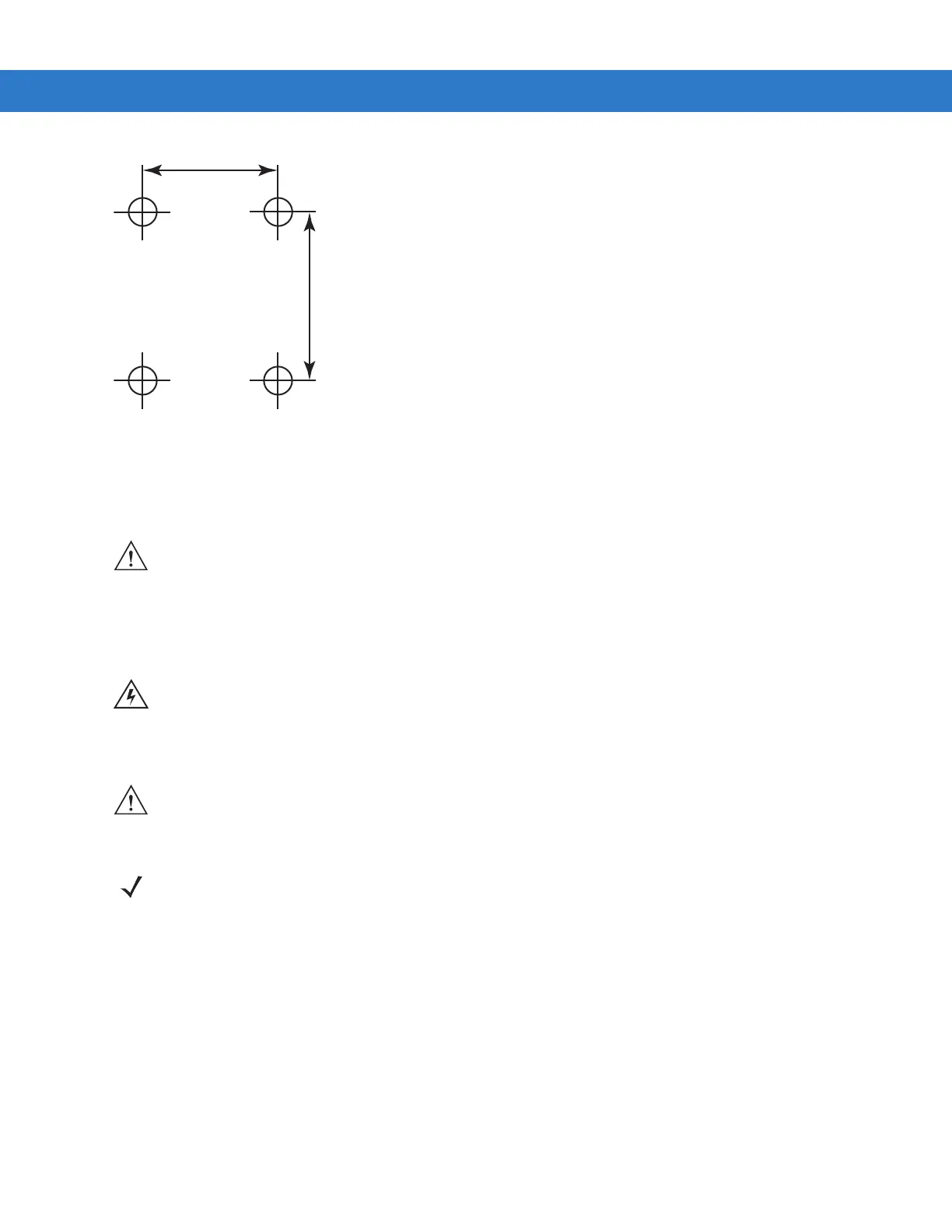

Figure 2-15
Vehicle Cradle Mounting Template
3. Position the cradle on the mounting surface.
4. Fasten it using four #8 washers and four #8-32 self-locking nuts.
Power Connection
Please read all of the following instructions before beginning.
To connect the cradle to power:
1. Locate the vehicle power source.
CAUTION Do not install a VCD7000 Vehicle Cradle on or near an air bag cover plate or within an aerobic zone. Also, do
not install it in a location that affects vehicle safety or driveability.
WARNING! A properly trained technician must perform the power connection. Improper connection can damage
your vehicle, cradle or MC75A. Refer to the vehicle’s Owner’s Manual for instructions for removing
power.
CAUTION When setting up connection for this cradle, only use the power input cable provided with this cradle.
NOTE The ideal location for connecting the vehicle cradle power input cable would be an accessory output in your
vehicle’s fuse panel. The vehicle cradle should be added to a circuit with a maximum load capacity for the
cradle and the original circuit. Refer to the vehicle’s Owner’s Manual for identification of the circuit.
If a fused output is not available, the vehicle cradle must be installed with the provided in-line fuse holder and
UL Listed 5A fuse. The fuse protects the vehicle from an electrical short on the power line to the cradle.
To use the cradle to charge the MC75A and spare battery when the vehicle’s ignition is off, connect the cradle
to unswitched power. This will affect the vehicle’s battery charge.
