NEC NEAX 2400 ICS User Manual

ND-45383 (E) CHAPTER 3
Page 105
Revision CD 1.0
3.7.4 Cable Termination and Cross Connection from the DRU-23-S3 to the D
term

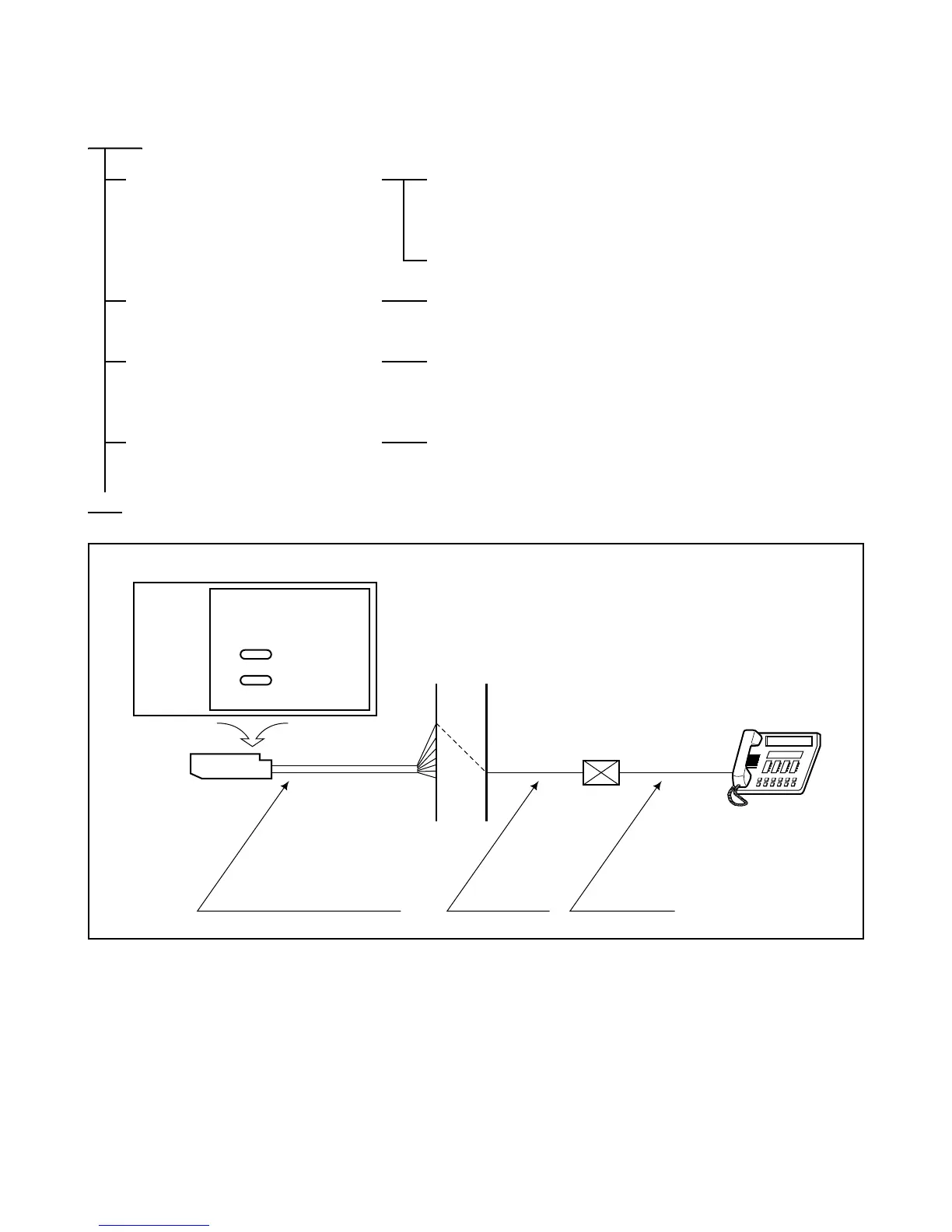

Figure 3-30 Connection of D
term
START
Cable running
Termination of Cables
Check terminal locations on the
DRU-23-S3 side of the IDF
Cross Connection
END
While referring to Figure 3-30, run cables between each D
term
and its Modular Block (Jack), and between the Modular Blocks
and the IDF.
Protect the cables using cable ducts, etc.
While referring to Figure 3-28, terminate the installed cables to
the IDF and the Modular Blocks.
While referring to Figure 3-31, identify the lead names for the
CHAMP Connector of DRU-23-S3 and the terminal locations
of the leads.
While referring to Figure 3-28, provide cross connections at the
D
term
side and the DRU-23-S3 side.
D
term
DRU-23-S3
IDF
MODULAR BLOCK
(JACK)
CHAMP
CONNECTOR
(MALE)
CHAMP Connector Cable (25P)
1-PAIR CABLE
MODULAR
CABLE
CHAMP0
CHAMP1
DRE card
