CHAPTER 2 ND-45383 (E)
Page 20
Revision CD 1.0
SYMBOL:2DLI
CIRCUIT CARD:PA-2DAID
FUNCTION:Digital Line Interface
This circuit card provides two interface circuits for connection between the NEAX2400 IMS and DRU-30-A/
DRU-30-S3.
INTERFACE:
• Communication Speed: 2.048 Mbps/1 circuit
• Line Impedance: 75/120 ohms
• The interface wires for this circuit card are accommodated by the LT terminal (on the PIMB backplane)
associated with the DLI card’s mounting slot.
MOUNTING LOCATION:
• Figure 2-12 shows mounting location of 2DLI card.

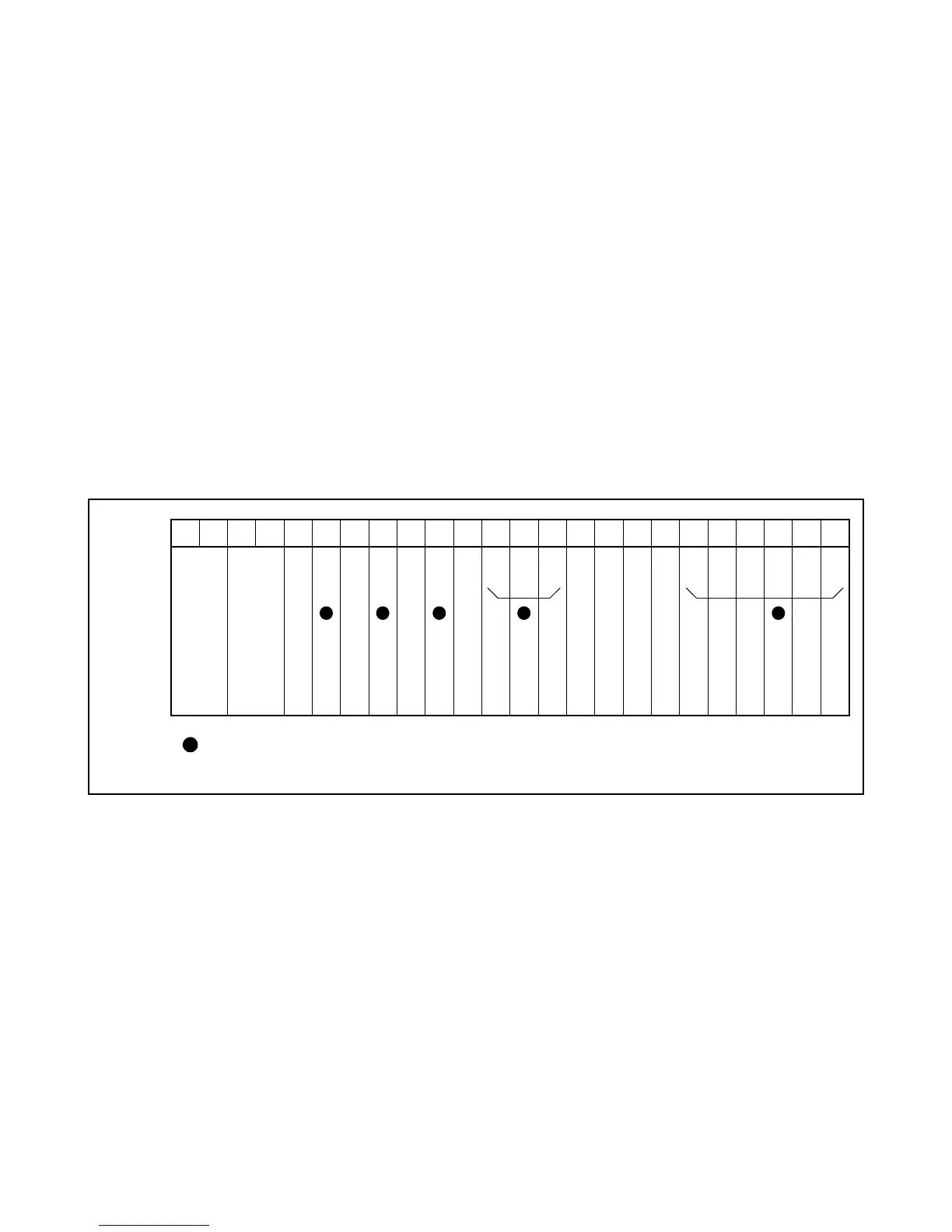

Figure 2-12 Mounting Location of 2DLI Card
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23
PIMB
Note 1: indicates the mounting locations of this circuit card.
Note 2: This circuit card cannot be mounted in PIMA.
To Next Page
