NEC NEAX 2400 ICS User Manual

CHAPTER 2 ND-45383 (E)
Page 8
Revision CD 1.0

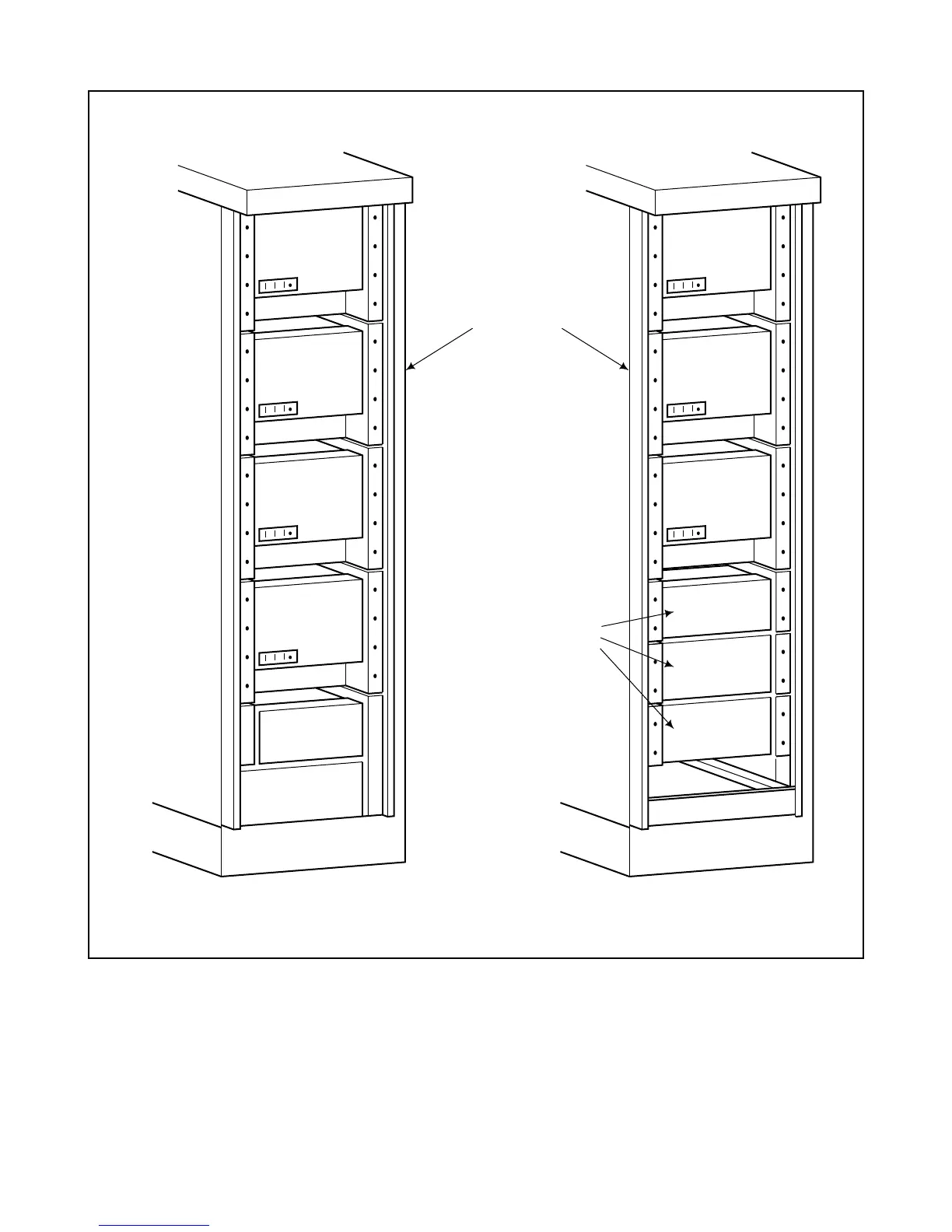

Figure 2-5 Example of Installation of the DRU (Mounting on the 19-inch rack) (Option)
DRU
DRU
DRU
DRU
BATT BOX
UNIT (Special)
DRU
DRU
DRU
19-inch Rack
(IEC Spec.)
BATT BOX
ASSEM (Standard)
• When installing 4 sets of DRU • When installing 3 sets of DRU
Note 1: The 19-inch rack should be provided by the installer.
Note 2: The external battery and the BATT BOX ASSEM must be locally provided.
