ND-45383 (E) CHAPTER 3
Page 39
Revision CD 1.0
3.2.2 When Installing the DRU on the Floor Using Stand Assembly (STAND ASSEM) (Option)

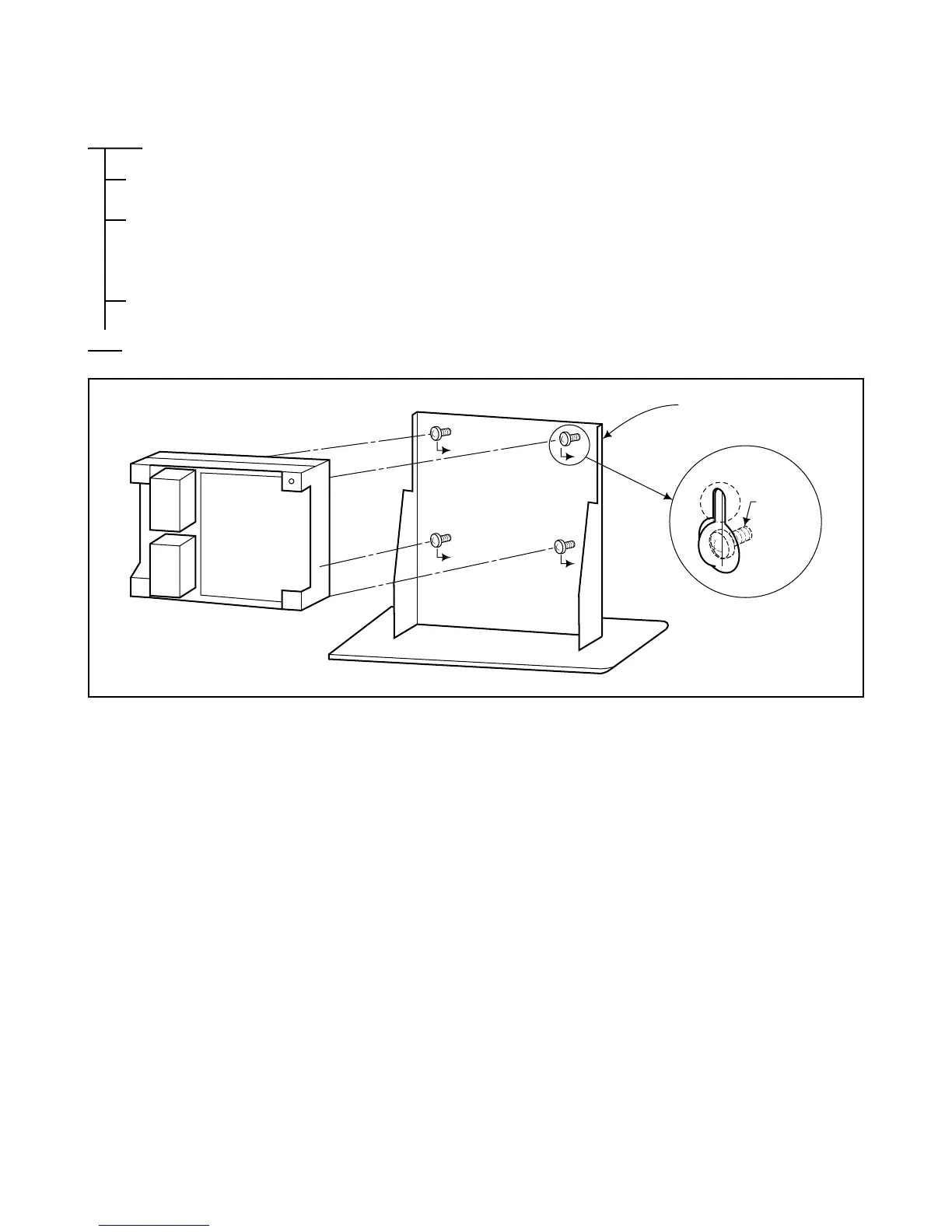

Figure 3-11 Installation of the DRU (Floor Installation by the STAND ASSEM)
START
Referring to Figure 3-9, remove the cover off the DRU.
Referring to Figure 3-11, hook up the DRU onto the screws (PL-C. P. IMS × 4 × 10 × 15BF) provided at the
four corners of the STAND ASSEM.
Fasten the DRU onto the STAND ASSEM by tightening the screws.
END
DRU
STAND ASSEM
Screw
To Next Page
