NETGEAR R6100 User Manual

Basic Settings
20
R6100 WiFi Router

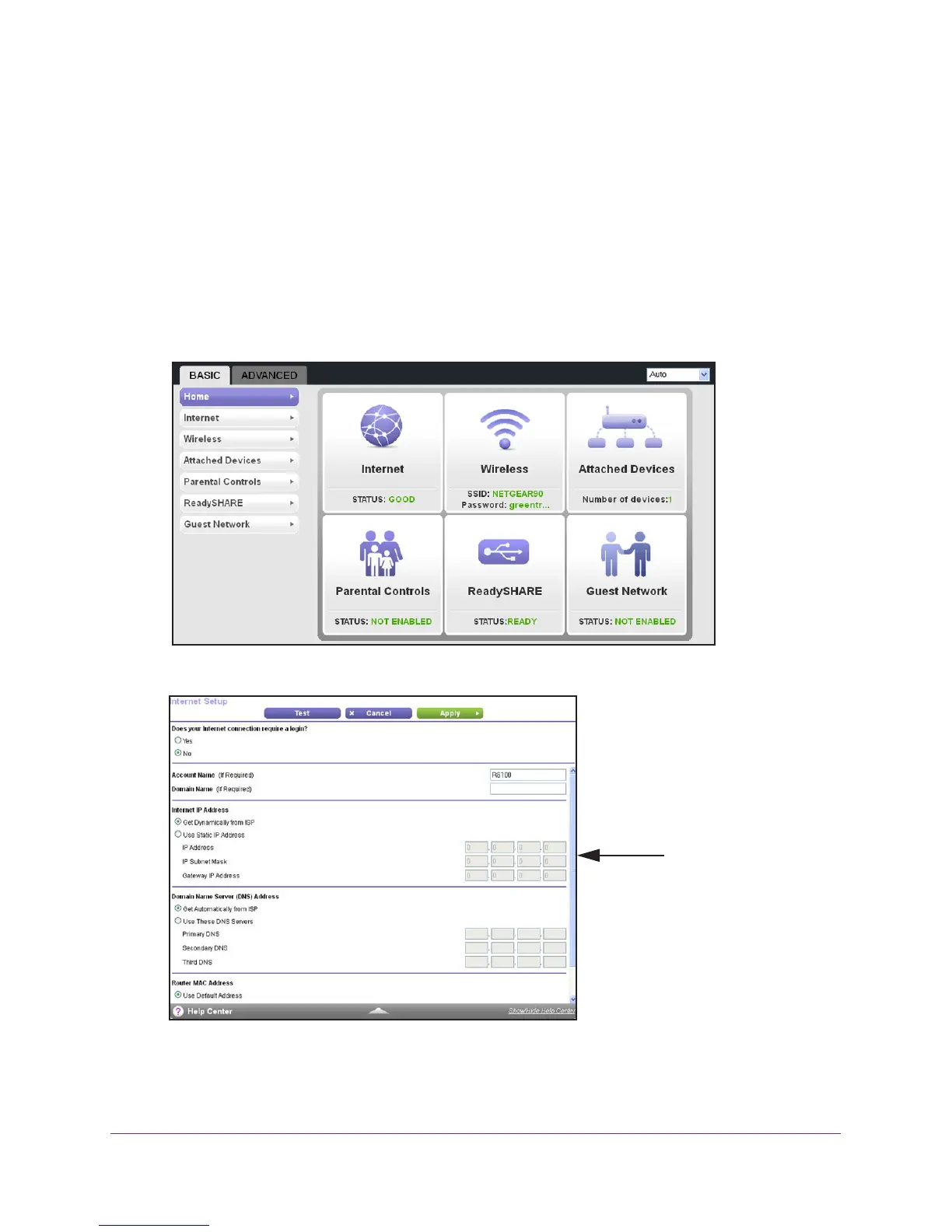

Internet Setup
The Internet Setup screen is where you view or change basic ISP information.
You can use the Setup Wizard to detect the Internet connection and automatically set up the
router. See Internet Connection Setup Wizard on page 31.
 To view or change the basic Internet setup:
1. Log in to the router (see Login and Access on page 13).
The BASIC Home screen displays:
2. Select Internet.
Scroll to view
more settings
The fields that display in the Internet Setup screen depend on whether your Internet
connection requires a login.

NETGEAR R6100 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
USB version	2.0
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
WLAN data transfer rates supported	300, 867 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	WEP, WPA, WPA2-PSK
Flash memory	128 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60 mm
Width	180 mm
Height	170 mm
Weight	322 g
