NETGEAR R6100 User Manual

Advanced Home Settings
31
R6100 WiFi Router

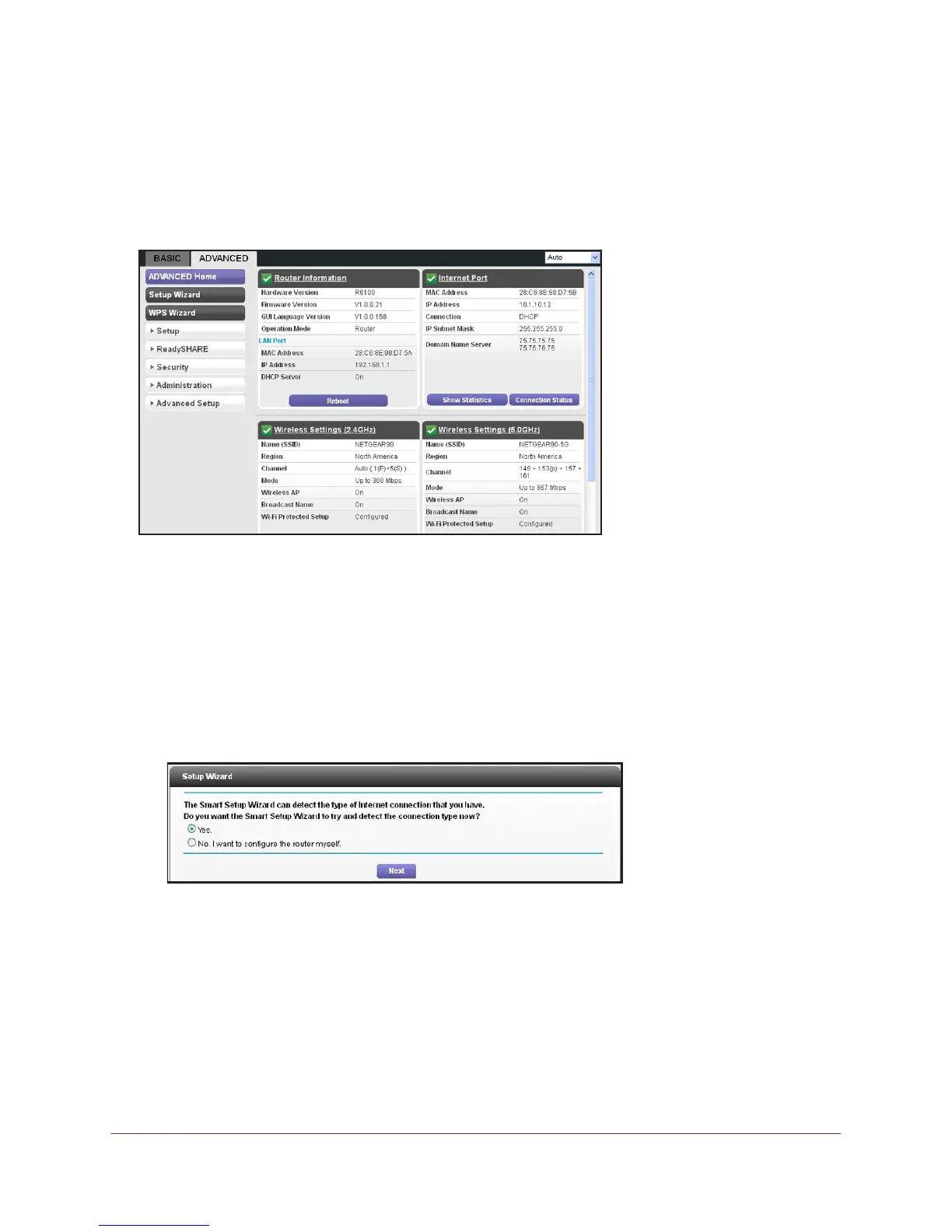

NETGEAR genie Advanced Home Screen
The genie Advanced Home dashboard presents status information. The content is the same
as what is on the Router Status screen on the Administration menu. The genie Advanced
Home screen is shown in the following figure:
Internet Connection Setup Wizard
You can use the Setup Wizard to detect your Internet settings and automatically set up your
router. The Setup Wizard is not the same as the genie screens that display the first time you
connect to your router to set it up.
 To use the Setup Wizard:
1. Select ADV
ANCED > Setup Wizard.
2. Select either the Yes or No, I want to configure the router myself radio button.
If you select No, you are taken to the Internet Setup screen (see Internet Setup on
page 20).
3. Click the Next button.
4. Select your location.
5. Click the Next button.

NETGEAR R6100 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
USB version	2.0
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
WLAN data transfer rates supported	300, 867 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	WEP, WPA, WPA2-PSK
Flash memory	128 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60 mm
Width	180 mm
Height	170 mm
Weight	322 g
