Security
65
R6100 WiFi Router
2. Select the Port Forwarding radio button as the service type.

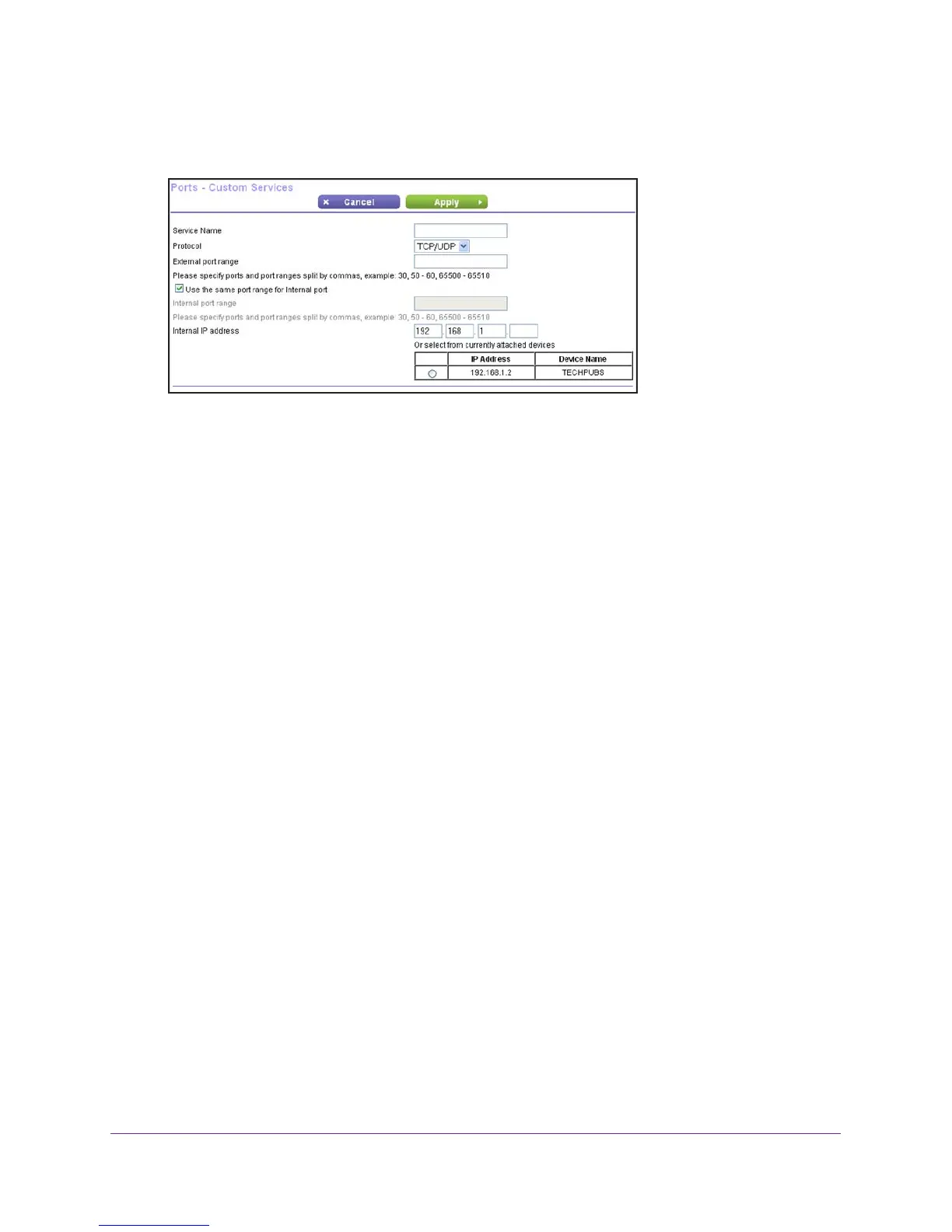

3. Click the Add Custom Service button.
4. In the Service Name field, enter a descriptive name.
5. In the Protocol field, select the protocol. If you are unsure, select TCP/UDP.
6. In the External port range field, specify the port or port range.
7. Either select the Use the same port range for internal port check box or fill in the Internal
IP address field.
8. Click the Apply button.
The service appears in the list in the Port Forwarding/Port Triggering screen.
Edit or Delete a Port Forwarding Entry
To edit or delete a port forwarding entry:
1. Select ADV
ANCED > Advanced Setup > Port Forwarding/Port Triggering.
2. Select the Port Forwarding radio button as the service type
3. In the table, select the radio button next to the service name.
4. Click the Edit Service or Delete Service button.
Application Example: Make a Local Web Server Public
If you host a web server on your local network, you can use port forwarding to allow web
requests from anyone on the Internet to reach your web server.
To make a local web server public:
1. Assign your web server either a fixed IP address or a dynamic IP address using DHCP
address reservation.
In this example, your router always gives your web server an IP address of 192.168.1.33.
2. In the Port Forwarding/Port
Triggering screen, configure the router to forward the HTTP
service to the local address of your web server at 192.168.1.33.
HTTP (port 80) is the standard protocol for web servers.
