NETGEAR R6100 User Manual

Advanced Settings
82
R6100 WiFi Router

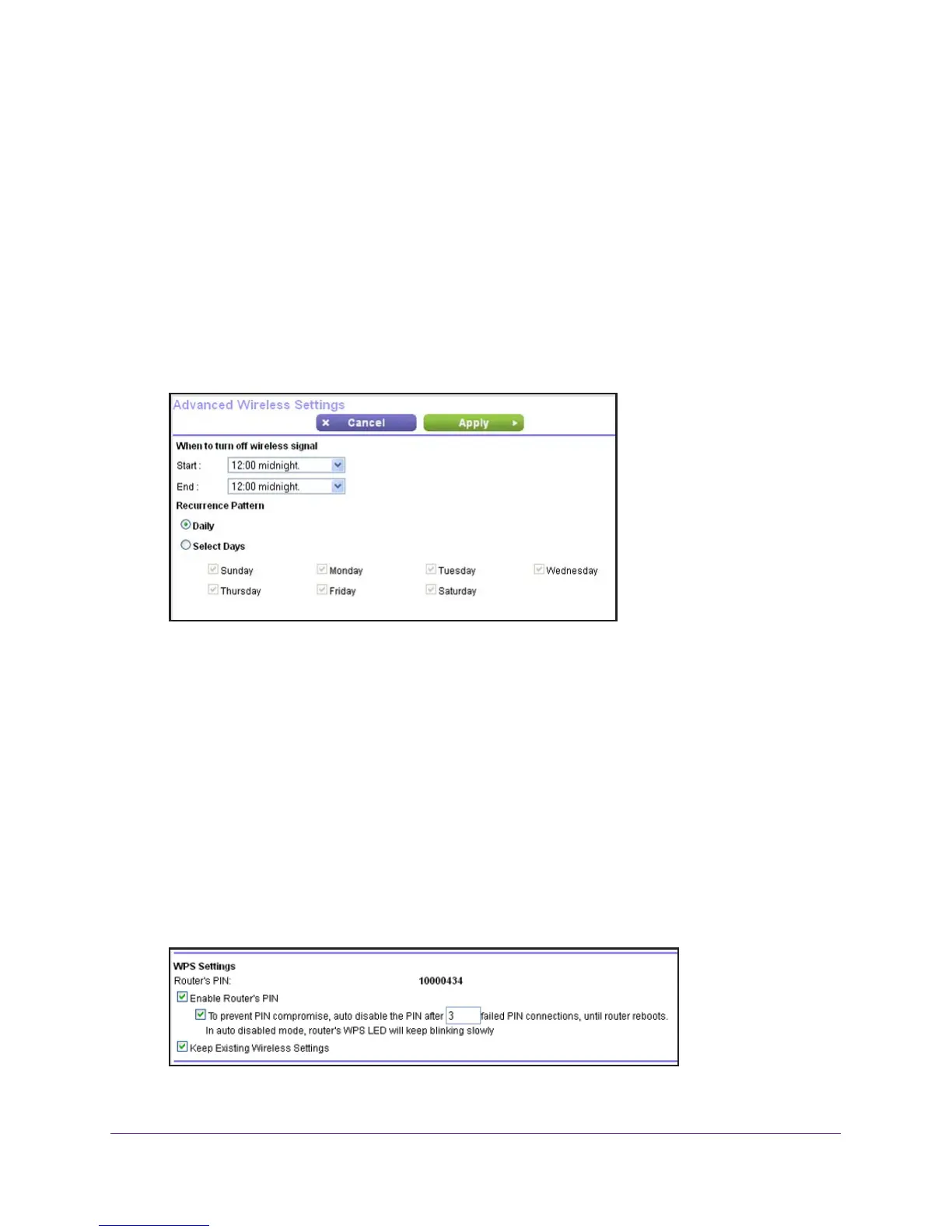

Set Up a Wireless Schedule
You can use this feature to turn off the wireless signal from your router at times when you do
not need a wireless connection. For example, you could turn it off for the weekend if you
leave town.
 To configure and enable the wireless schedule:
1. Select ADV
ANCED > Advanced Setup > Wireless Settings.
The Advanced Wireless Settings screen displays.
2. Click the Add a new period button.
The screen adjusts:
3. Use the lists, radio buttons, and check boxes to set up a period during which you want to
turn off the wireless signal.
4. Click the Apply button.
The Advanced Wireless Settings screen displays.
5. Select the T
urn off wireless signal by schedule check box to activate the schedule.
6. Click the Apply button.
View or Change WPS Settings
 To specify WPS Settings:
1. Select ADV
ANCED > Advanced Setup > Wireless Settings.
2. Scroll down to display the WPS settings:

NETGEAR R6100 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
USB version	2.0
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
WLAN data transfer rates supported	300, 867 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	WEP, WPA, WPA2-PSK
Flash memory	128 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60 mm
Width	180 mm
Height	170 mm
Weight	322 g
