NETGEAR R6100 User Manual

Advanced Settings
96
R6100 WiFi Router
Auto Detect
 To set up an IPv6 Internet connection through auto detection:
1. Select ADV
ANCED > Advanced Setup > IPv6.

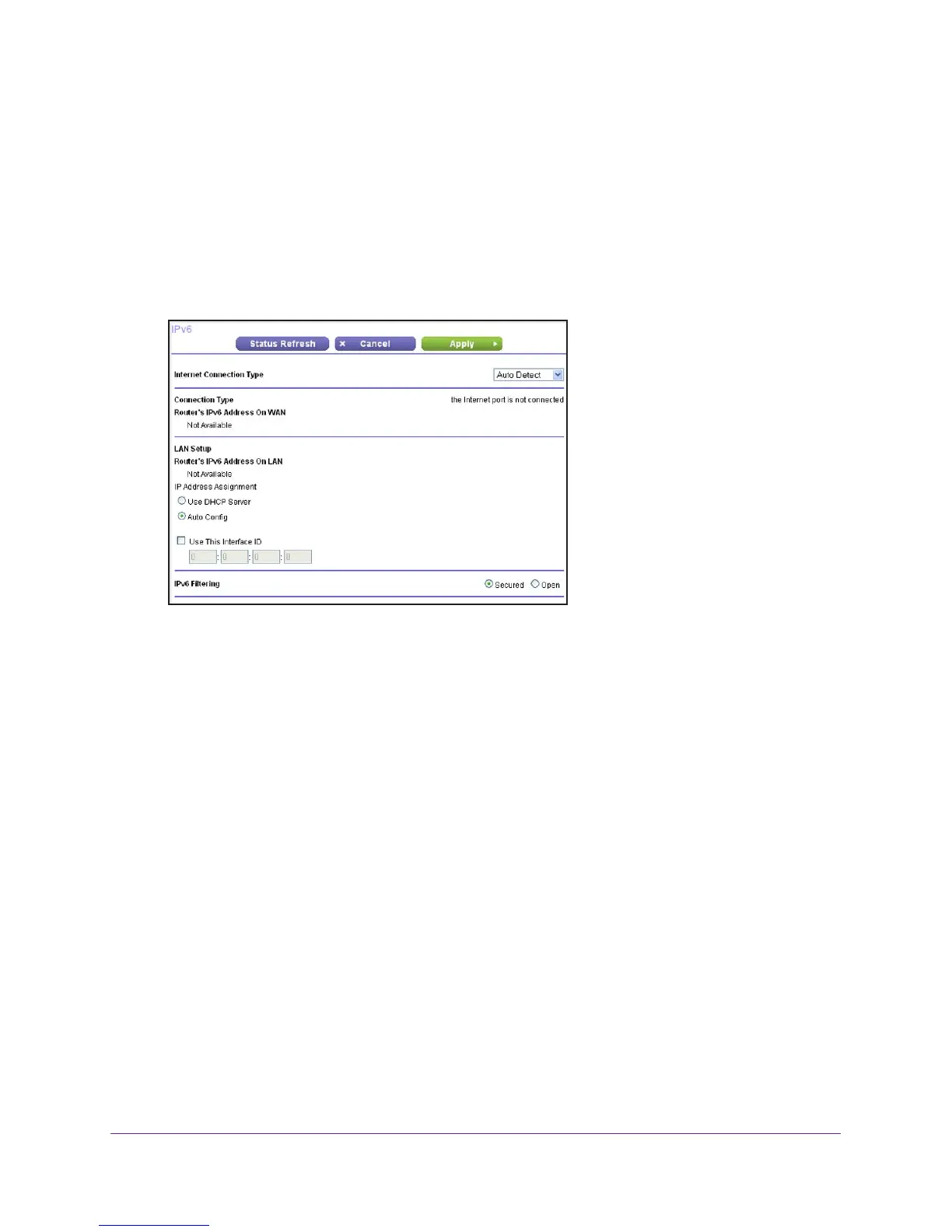

The IPv6 screen displays.
2. In the Internet Connection
Type list, select Auto Detect.
The screen adjusts:
The router automatically detects the information in the following fields:
• Connection T
ype. This field indicates the connection type that is detected.
• Router
’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired
for the router’s WAN (or Internet) interface. The number after the slash (/) is the length
of the prefix, which is also indicated by the underline (_) under the IPv6 address. If no
address is acquired, the field displays Not Available.
• Router
’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired
for the router’s LAN interface. The number after the slash (/) is the length of the prefix,
which is also indicated by the underline (_) under the IPv6 address. If no address is
acquired, the field displays Not Available.
3. Specify how the router assigns IPv6 addresses to the devices on your home network (the
LAN) by selecting one of the following radio buttons:
• Use DHCP Server.
This method passes more information to LAN devices, but some
IPv6 systems might not support the DHCv6 client function.
• Auto Config.
The default setting.
4. (Optional) Select the Use This Interface ID check box, and specify the interface ID that you
want to be used for the IPv6 address of the router
’s LAN interface.
If you do not specify an ID here, the router generates one automatically from its MAC
address.
5. Click the Apply button.

NETGEAR R6100 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
USB version	2.0
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
WLAN data transfer rates supported	300, 867 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	WEP, WPA, WPA2-PSK
Flash memory	128 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60 mm
Width	180 mm
Height	170 mm
Weight	322 g
