NETGEAR R6100 User Manual

USB Storage
53
R6100 WiFi Router

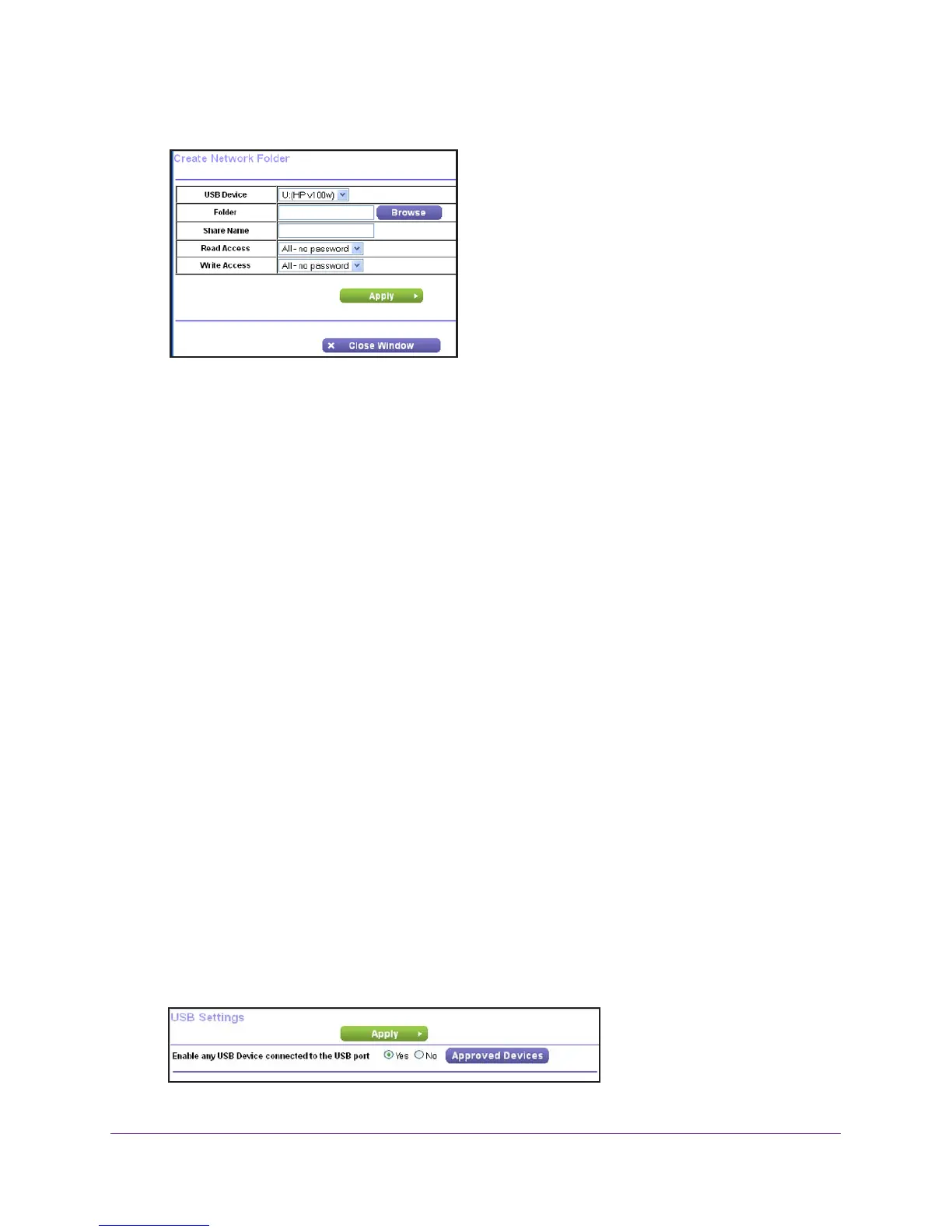

2. Click the Create Network Folder button.
If the Create a Network Folder screen does not display, your web browser might be
blocking pop-ups. If it is, then change the browser settings to allow pop-ups.
3. In the Folder field, browse and select the folder.
4. Fill in the Share Name field.
5. In the Read
Access list and the Write Access list, select the setting that you want.
The user name (account name) for All – no password is guest. The password for admin is
the same one that is used to log in to the router. By default, it is password.
6. Click the Apply button.
The folder is added on the USB device.
 To edit a network folder:
1. Select ADV
ANCED > ReadySHARE.
2. Click the Edit button.
The Edit Network Folder screen displays the same settings shown in the Create a
Network Folder screen.
3. Change the settings in the fields as needed.
4. Click the Apply button.
Your changes are saved.
Specify Approved USB Devices
For more security, you can set up the router to share only approved USB devices.
 To set up approved USB devices:
1. Select ADV
ANCED > Advanced Setup > USB Settings.

NETGEAR R6100 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
USB version	2.0
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
WLAN data transfer rates supported	300, 867 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	WEP, WPA, WPA2-PSK
Flash memory	128 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60 mm
Width	180 mm
Height	170 mm
Weight	322 g
