NETGEAR R6100 User Manual

USB Storage
46
R6100 WiFi Router
Connect a USB Storage Device to the Router
ReadySHARE lets you access and share or a USB drive connected the router USB port. If
your USB device has special drivers, it is not compatible.
 To connect a USB storage device:
1.

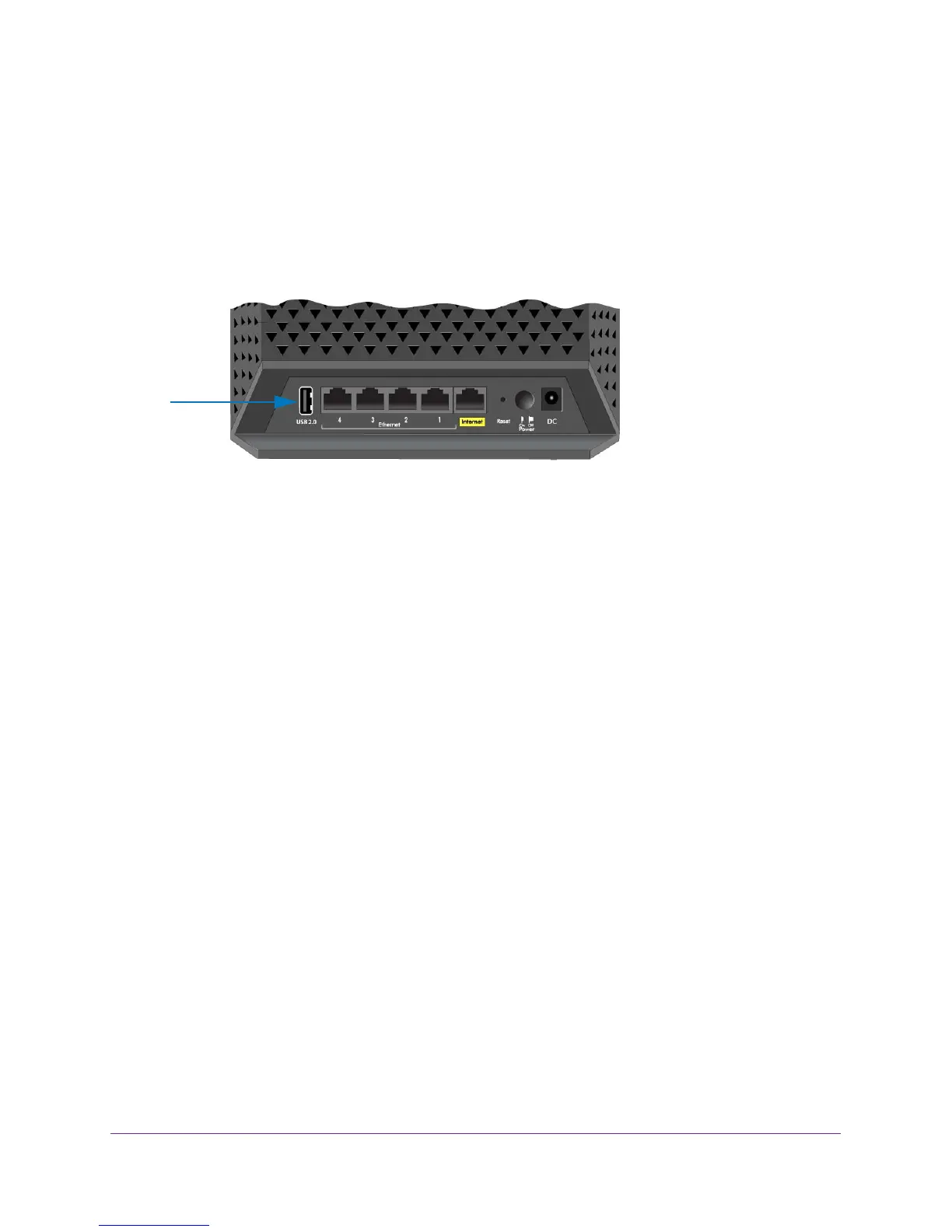

Insert your USB storage device into the USB port on the rear panel of the router.
2. If your USB device has a power supply
, you must use it when you connect the USB device
to the router.
It might take up to two minutes before the USB device is ready for sharing.
Safely Remove a USB Drive
If you want to physically disconnect a USB drive from the router USB port, first, log in to the
router and safely remove it.
 To remove a USB disk drive safely:
1. Select USB Storage > Basic Settings.
2. Click the Safely Remove USB Device button.
This takes the drive offline.
3. Physically disconnect the USB drive.
Access the USB Storage Device
When you connect the USB device to the router USB port, it might take up to two minutes
before it is ready for sharing. By default, the USB storage device is available to all computers
on your local area network (LAN).
 To access the USB device from a Mac:
1. Select Go > Connect to Server.
2. Enter smb://readyshare as the server address.
3. Click the Connect button.

NETGEAR R6100 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
USB version	2.0
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
WLAN data transfer rates supported	300, 867 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	WEP, WPA, WPA2-PSK
Flash memory	128 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60 mm
Width	180 mm
Height	170 mm
Weight	322 g
