PREPARATION

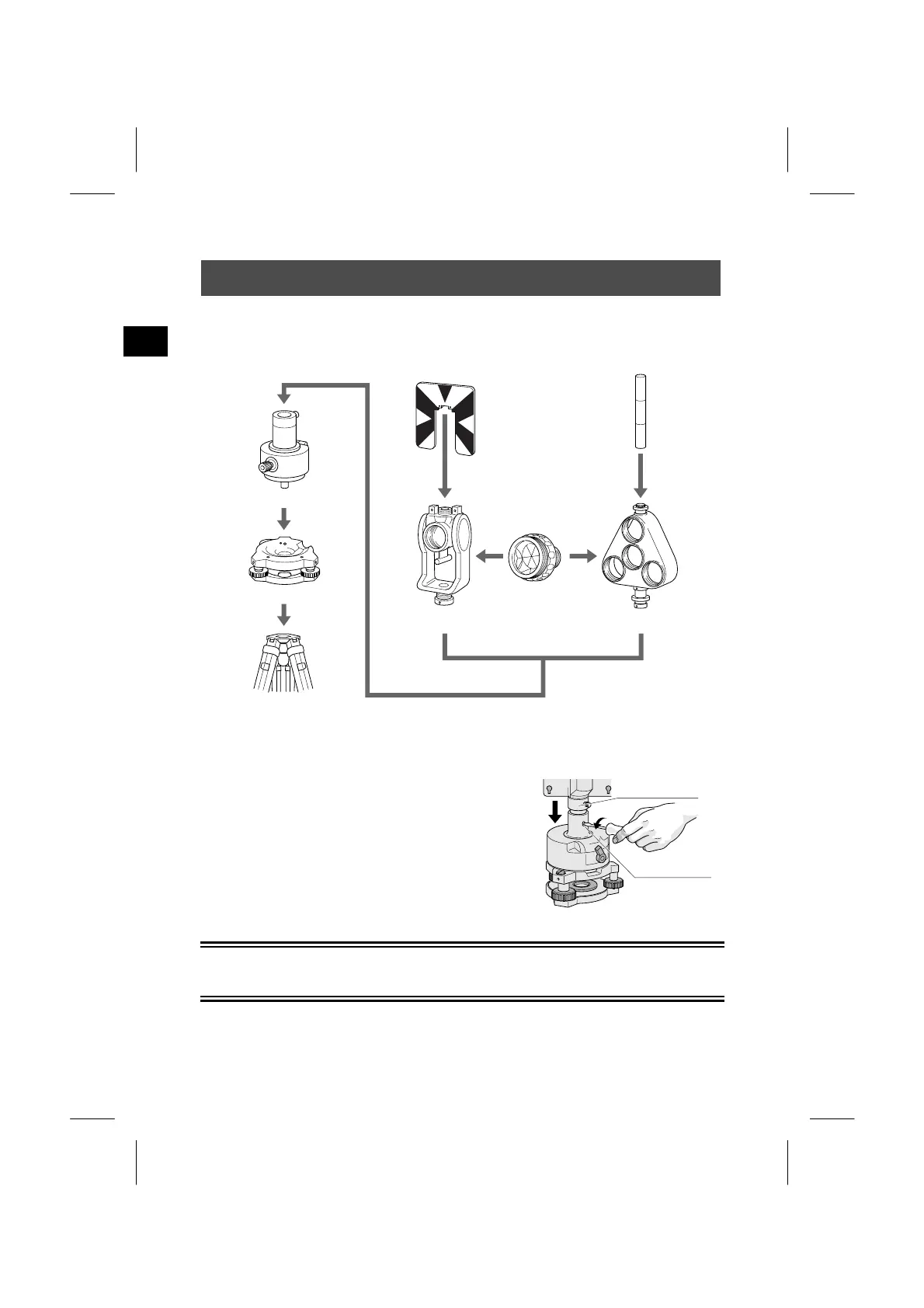

2-7. Assembling the Prism Reflector
Assemble the prism reflector referring to the Figure below.
Target plate for single prism
Target pole
Triple prism hold
Tiltable single
prism holder
Tribrach adapter
eveling base W10
Tripod
Prism
1) Height Adjustment of Tribrach Adapter
Tribrach adapter can be adjusted to two heights
by sliding up and down the prism holder mount.
Prism holder mount
Height adjustment
screw
To change the height, first remove the height
adjustment screw from the tribrach adapter.
Slide the prism holder mount to align the height
adjustment screw holes and screw in the
adjustment screw again.
NOTE • When using the DTM-502 series Total Station, set the prism holder
mount to the lower position.
2-12
