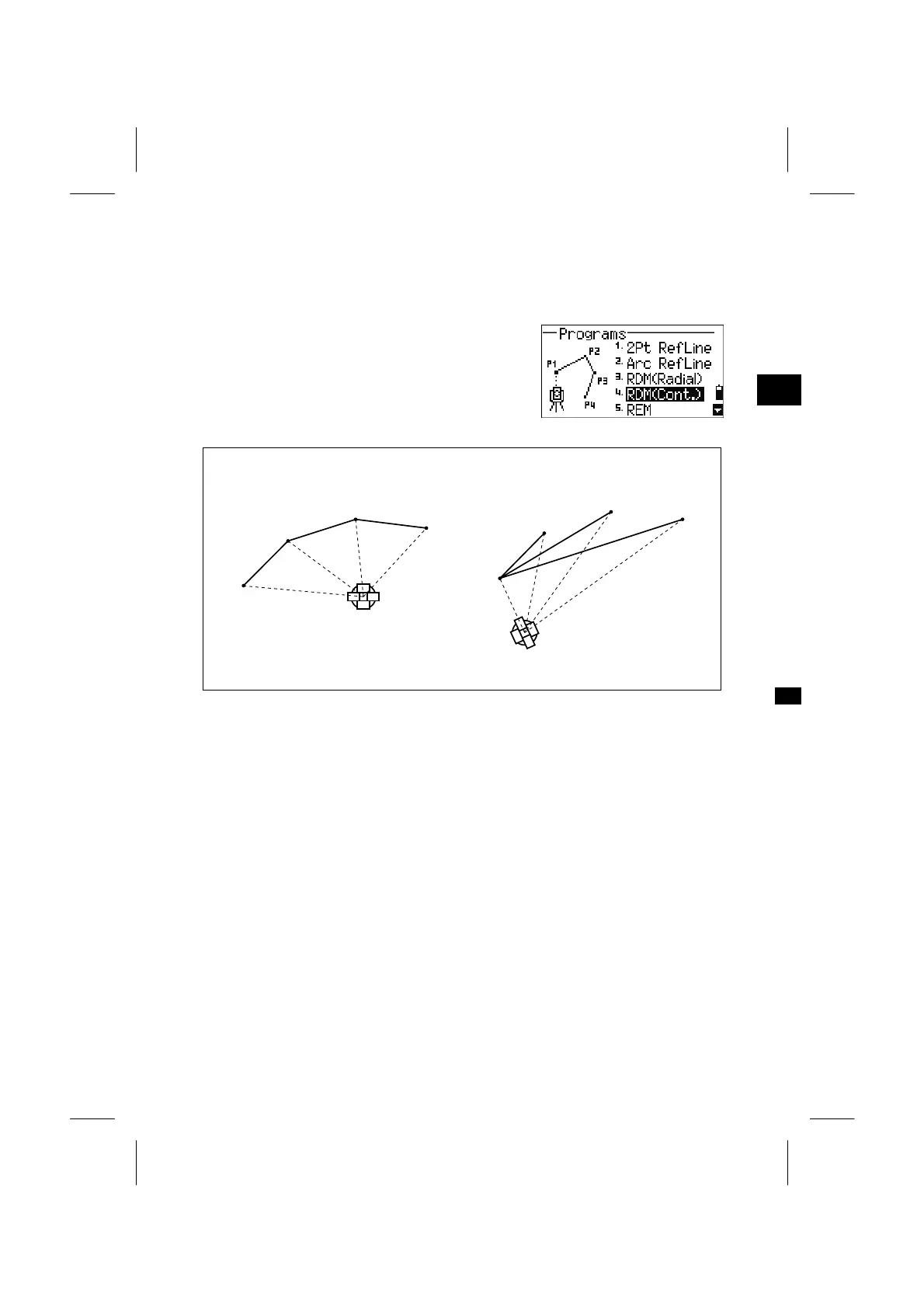

3-2. RDM (Cont.)
Measuring between the Current Point and the immediately Preceding
Point
For the RDM (Continuous) function, select [4] on
this menu.
The rest of the process is the same with the [3
.RDM
(Radial)].
(See previous
pages)
3
PRG
:
3. RDM (Cont)
P1
P1
P2
P2
P3
P3
P4
P4
Difference between "1: Cont." and "2: Radial"
1: Cont.
(The preceding two points are
subject to calculate.)
2: Radial
(Calculations are made with
reference to the first point.)
3-62
