IV. Assembly
93
8

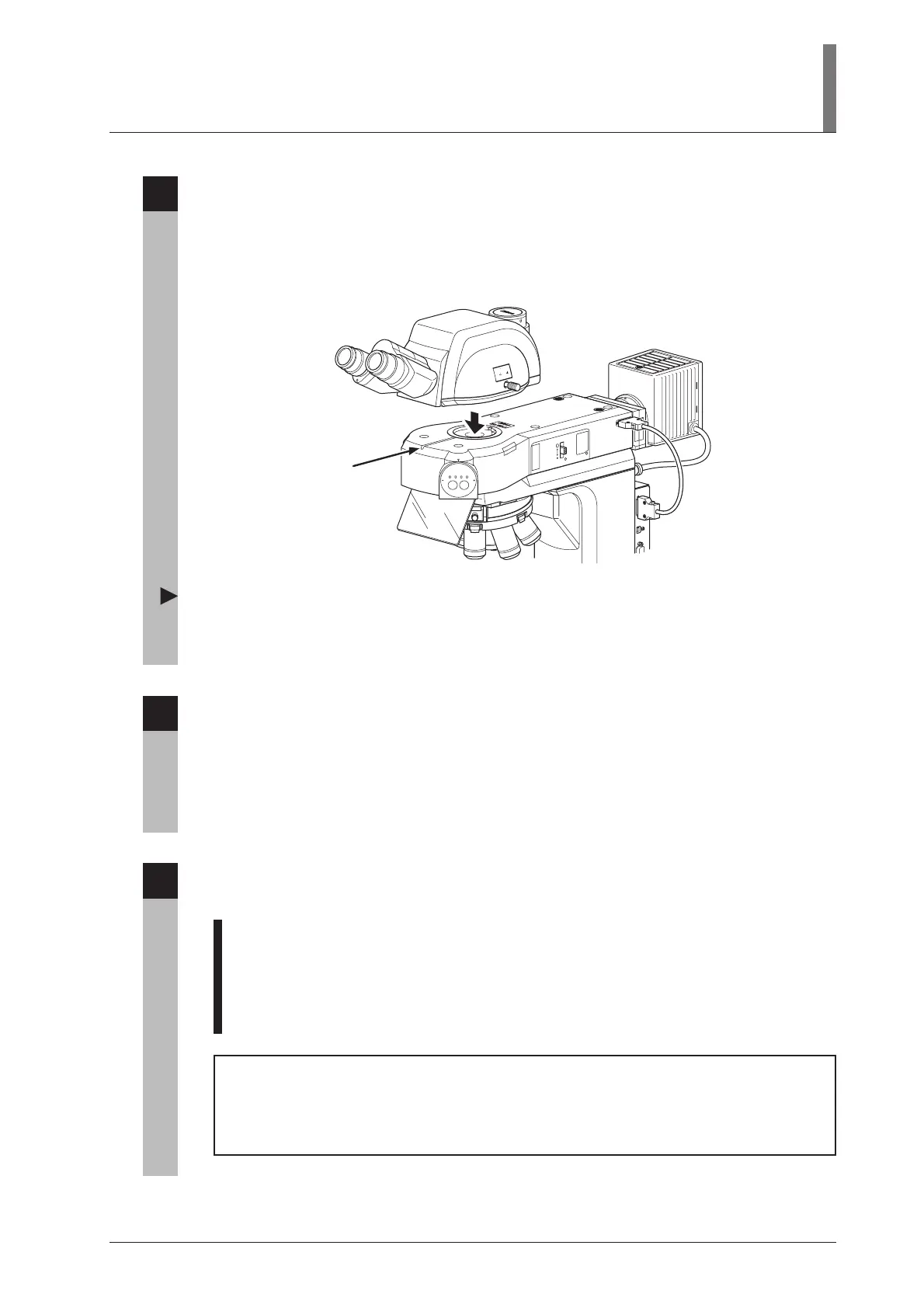

Attaching the Eyepiece Tube
Fully loosen the eyepiece tube clamp screw on the epi illuminator with the hexagonal screwdriver.
Attach the eyepiece tube onto the mount part on the epi illuminator and fix it with eyepiece tube
clamp screw using the hexagonal screwdriver.
Caution to remove the eyepiece tube
Hold the eyepiece tube by hand when loosing the clamp screw to prevent a sudden disconnection
and falling.
10
Attaching Objectives
1 Lower the stage as far as it will go.
2 Screw in objectives into the nosepiece so that their magnification increase in the order of the
clockwise rotation (as viewed from above the microscope) of the nosepiece.
3 To remove an objective, perform the following: remove the specimen from the stage, lower
the stage completely, and hold the objective with both hands so that it does not fall during the
removal.
9
Attaching Eyepieces
Attach eyepieces of the same magnification and the same field number.
There are positioning protrusions on the binocular part sleeve of the eyepiece tube. Align the
notches of the eyepieces with the protrusions on the sleeve and slide the eyepieces into the eyepiece
sockets.
UEPI2A
U
SB
R
S2
3
2
C
F
.
STOP
J
APAN
BF DF FL1 FL2
FL1
FL2
1
0
0
20
0
10
0
IN
OUT
LV-TT
2
LV-TT2 eyepiece tube
Eyepiece tube
clamp screw
Conversion adapter
For objectives and nosepieces, there are two kinds of screw diameters (25mm and 32 mm).
To attach the objective of 25 mm diameter to the nosepiece of 32 mm diameter sockets, use
the conversion adapter, LU nosepiece adapter M32-25.
To Next Page
