Connecting a PC
To use this product, connect a PC after assembling this product and perform the setup works
(various settings) for the microscope system with the setup software, “LVSetup.”
Use the universal serial bus (USB) interface to connect with the PC. After assembling and
connecting the microscope, connect the USB cable between the PC and the microscope and perform
the setup works for the microscope.
The USB connector of this microscope is located in the connector panel on the side.
For details about the operation and the setup works of the “LVSetup,” refer to the “LV Series
Support Tools software manual.”

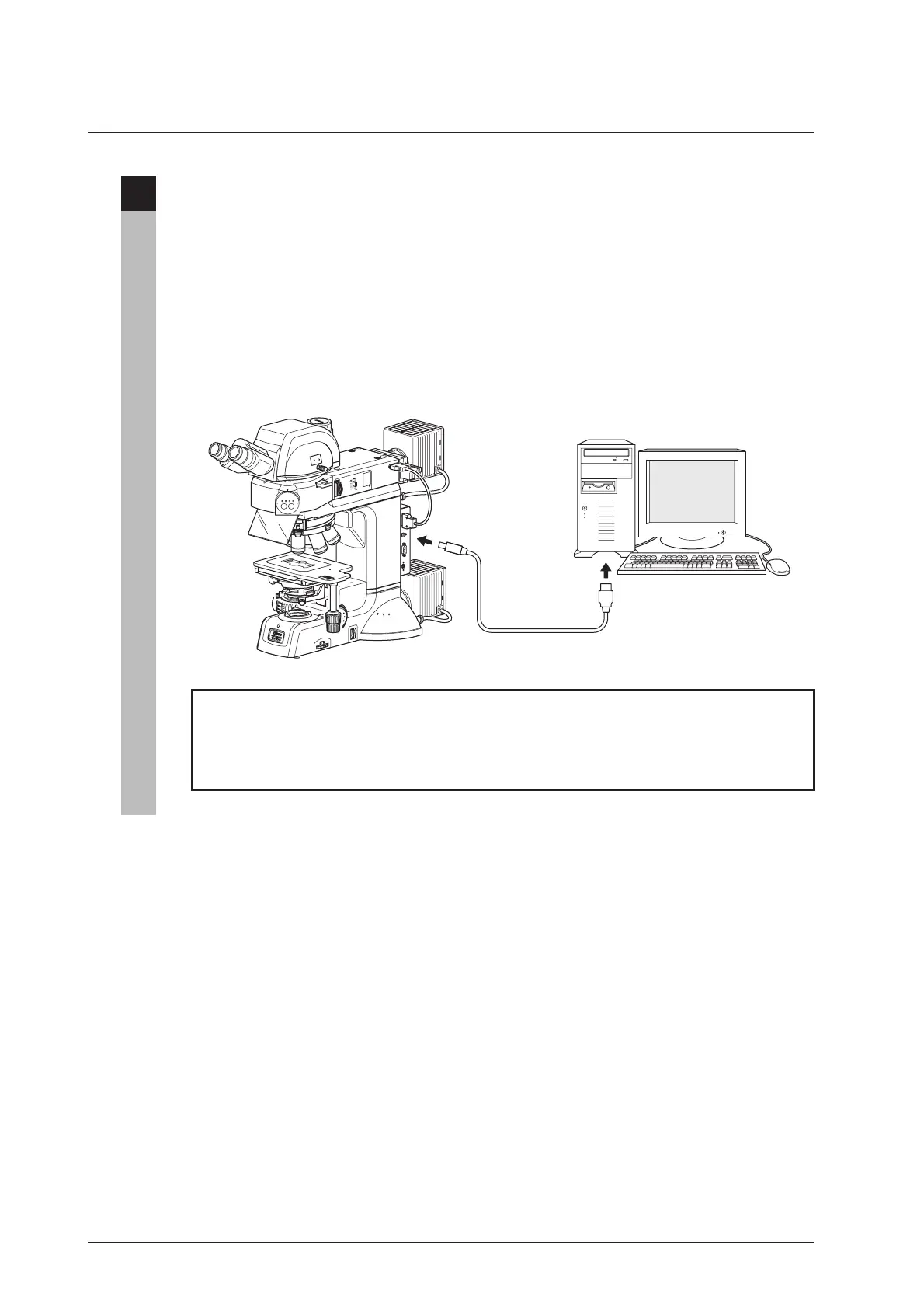

PC
USB cable
U
EP
I2A
US
B
RS23
2
C
LCN
T
N
D8
N
C
B
F
.
S
.
A
c
hr
N
.
A
=
0
.
9
JAPAN
0
.8
0
.
7
0
.6
0
.
5
0
.
4
0
.
3
0.2
0.1
3
x
2
S
T
A
G
E
J
A
P
A
N
F
.
STOP
J
APA
N
BF DF FL1 FL2
FL1
FL2
10
020
0
100
IN
OUT
L
V
-
T
T
2
Connecting with a PC when using the “NIS-Elements”
Motorized units can be controlled on a PC with “NIS-Elements,” the software for digital
cameras, when a digital camera is used with the product. To use the NIS-Elements, connect
the product and the PC with the USB interface in the same manner described above.
