4 Applications
70 Nikon N Series/K Series Total Station Instruction Manual
Using [DSP] to switch between display screens

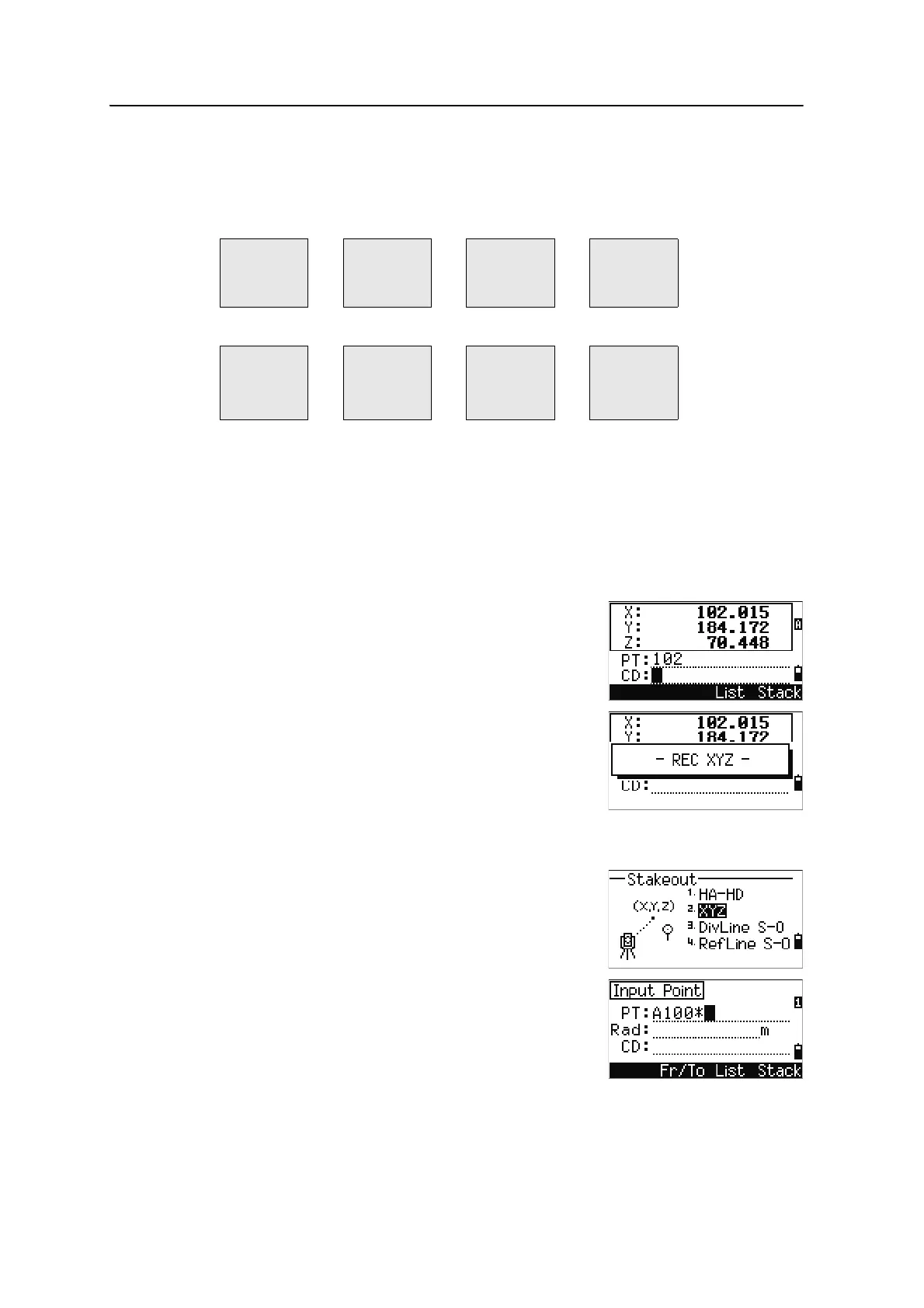

Press
[DSP] to switch between the Stakeout display screens. The following screens are
available:
The S-O8 screen is only available if the secondary distance unit is set. For more
information, see Others settings, page 121.
Every time you press
[DSP], the next screen appears. If you press [DSP] in the last screen
(S-O7, or S-O8 if the secondary distance unit is set), the S-O1 screen appears.
To customize the S-O2, S-O3, and S-O4 screens, hold down
[DSP] for one second. For
more information, see Customizing items in the Basic Measurement Screen (BMS),
page 34.
To record the stakeout point, press
[ENT]. PT defaults to
the last recorded PT+1.
Press
[ENT] to record the point.
After recording the point, it returns to the observation
screen. You can continue observation, or press
[ESC] to
input another angle and distance for stakeout.
Specifying the stakeout point by coordinates
1. To start a stakeout by coordinates, press [2] or
select
XYZ in the Stakeout menu.
2. Enter the point name that you want to stake and
press
[ENT].
You can also specify the point by code or radius
from the instrument.
S-O1 S-O2 S-O3 S-O4
dHA←
R←
OUT↑
CUT↑
HA
VA
SD
HA
VD
HD
HL
V%
HD
S-O5 S-O6 S-O7 S-O8
X
Y
Z
dX
dY
dZ
rSD
rVD
rHD
HD
VD
SD
