Nikon N Series/K Series Total Station Instruction Manual 75
Applications 4
Program Key
To display the Programs menu, press [PRG].
Measuring distance and offset values along a specified line

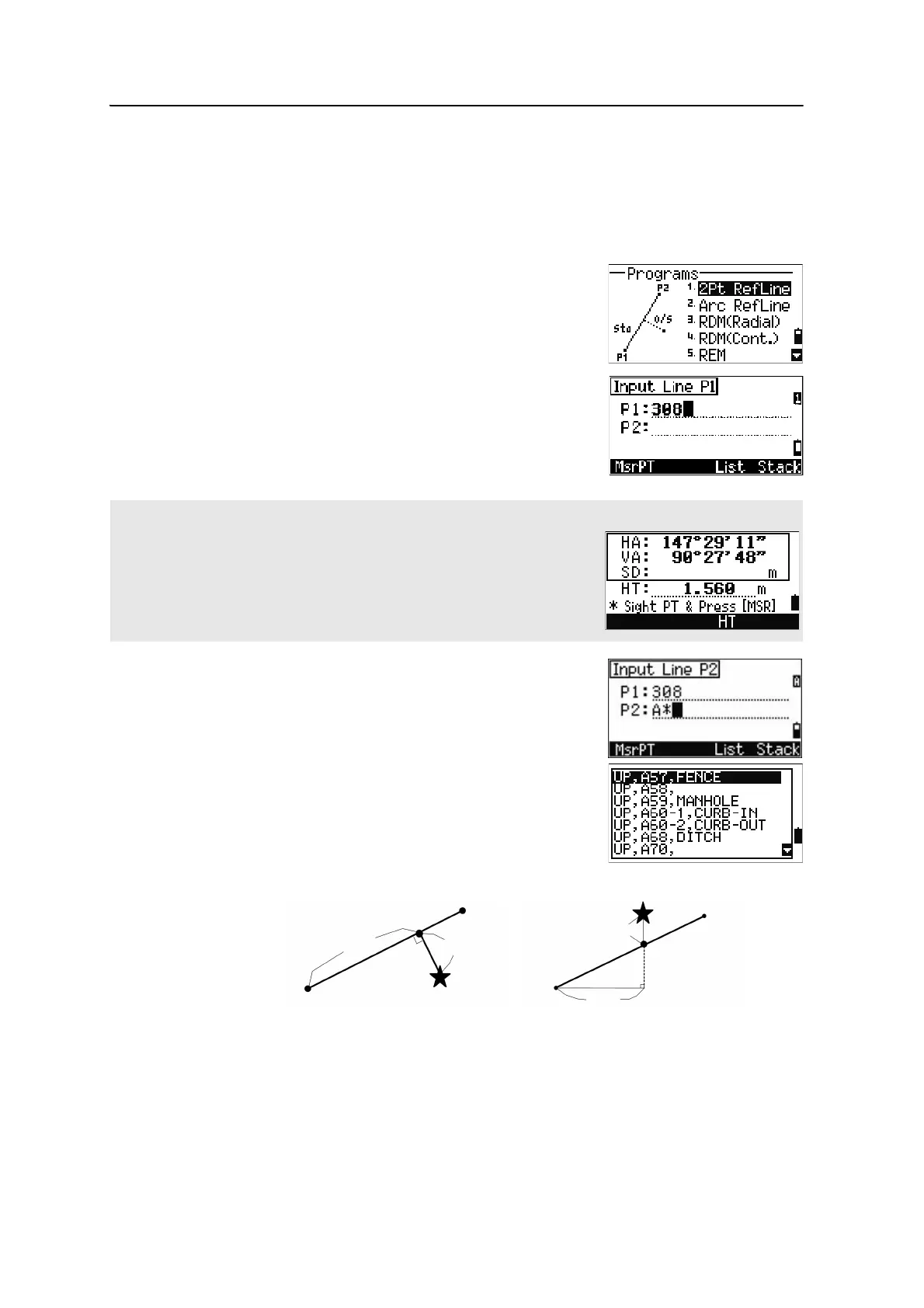

1. Press [1] or select 2Pt RefLine in the
Programs menu.
2. Enter the first point for the reference line.
Alternatively (to enter the point by measuring),
press the
MsrPT softkey.
3. Enter the second point for the reference line.
4. Enter an asterisk (*) in the PT field to perform a
wildcard search. A list of matching points
appears. Highlight a point in the list and then
press
[ENT].
Direct Measurement screen
Press the MsrPT softkey to display a direct measurement screen.
Sight the target and press [MSR1] or [MSR2]. The Record PT screen appears.
If you press
[ESC] in the Record PT screen, the measured point is used but
not recorded in the job.
Plain view Side view
PT1
PT2
Sta
O/S
Prism
Prism
PT2
Sta
PT1
dZ
