4 Applications
100 Pulse Laser Station NPL-302 Series Instruction Manual
4.
Enter a value in the PT and CD fields. Press
[ENT].
5. Enter the second point on the vertical plane.
Press
[ENT].
Once the plane is defined, the calculated Sta and
dZ values are updated as you move the telescope.
No distance measurement is required.
Sta Horizontal distance from P1 to the
target point along the baseline
dZ Vertical distance from P1 to the target
point
Using [DSP] to switch between display screens

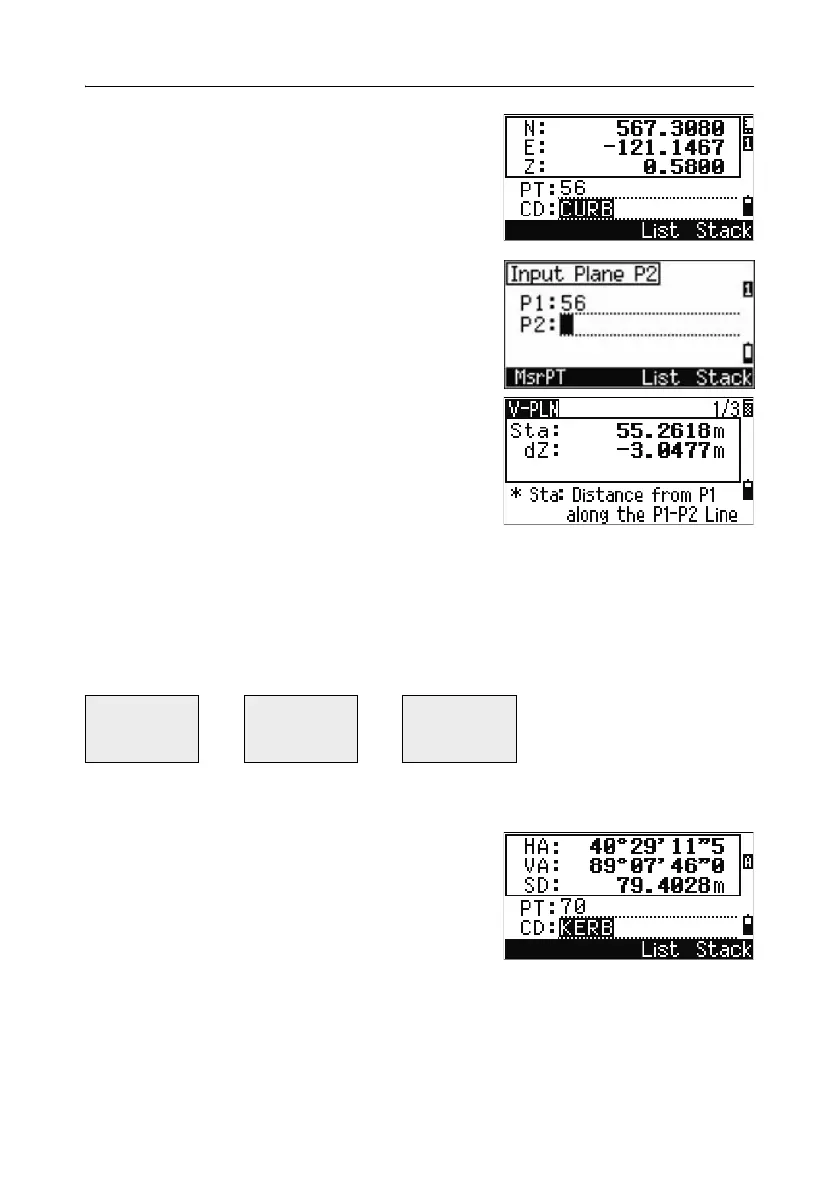

Press [DSP] to switch between the plane display screens. The following screens are
available:
Every time you press
[DSP], the next screen appears. If you press [DSP] in the last
screen (PLN3), the PLN1 screen appears.
To record the point, press
[ENT] on any screen (V-
PLN1/3 to V-PLN3/3).
Enter PT and CD. Then press
[ENT].
Sample records
CO,Vertical Ref Plane Pt1:516-A1 Pt2:530
CO,Sta=68.021 dz=17.459
SS,30123-A48,1.5480,16.4020,40.4720,89.0730,14:22:47,
PLN1 PLN2 PLN3
Sta
dZ
X
Y
Z
HA
VA
