4 Applications
76 Pulse Laser Station NPL-302 Series Instruction Manual

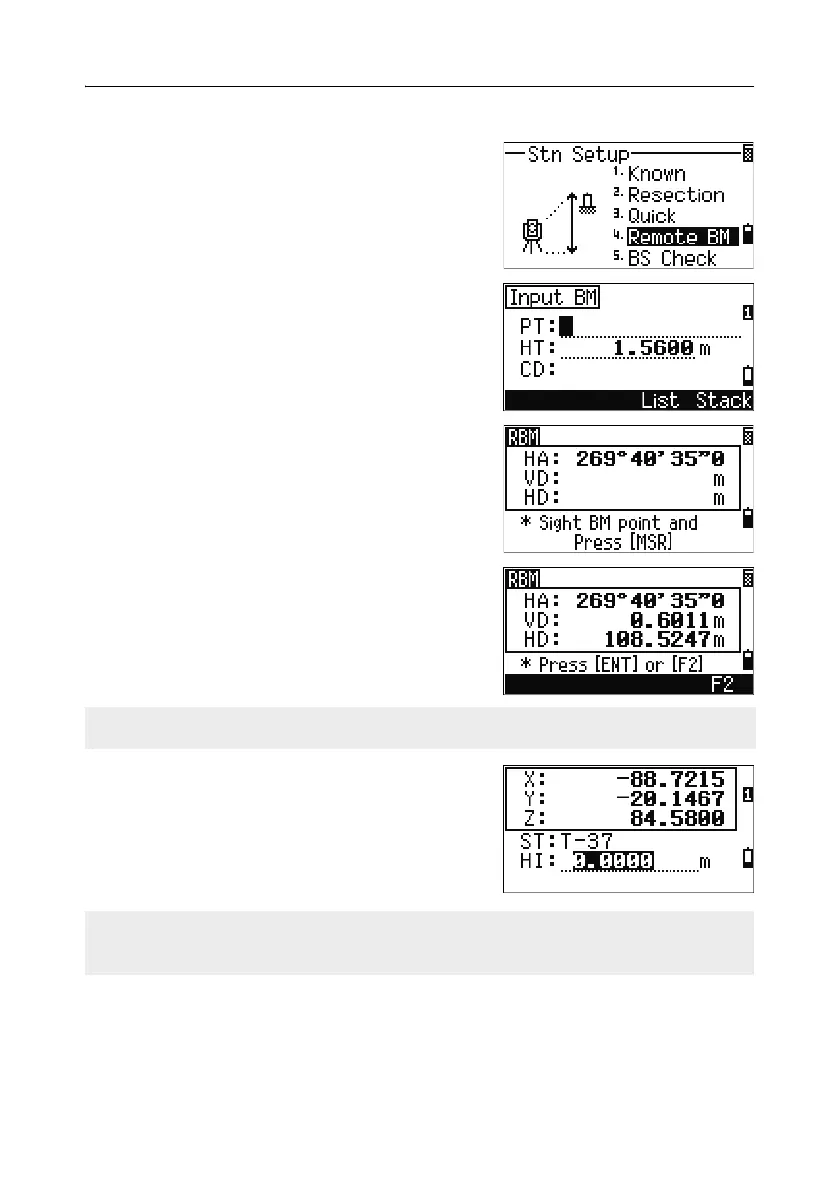

Determining station elevation 40.1
1. Press [4] or select Remote BM in the Stn
Setup menu.
2. Enter the BM point and press [ENT]. When the
point is found, it appears briefly. The cursor
then moves to the HT field.
3. Enter the HT and press [ENT].
4. Sight the BM point and press [MSR1] or [MSR2].
5. To take an F1/F2 measurement, press the F2
softkey or flip the telescope to Face-2 after a
distance measurement.
The updated station coordinates are displayed.
You can change the HI in this screen.
6. To record the updated STN, press [ENT].
The F2 softkey is not available on the NPL-332.
When the HI is changed, the Z coordinate is updated before the station is recorded.
You must complete a station setup before you use the Remote Benchmark function.
